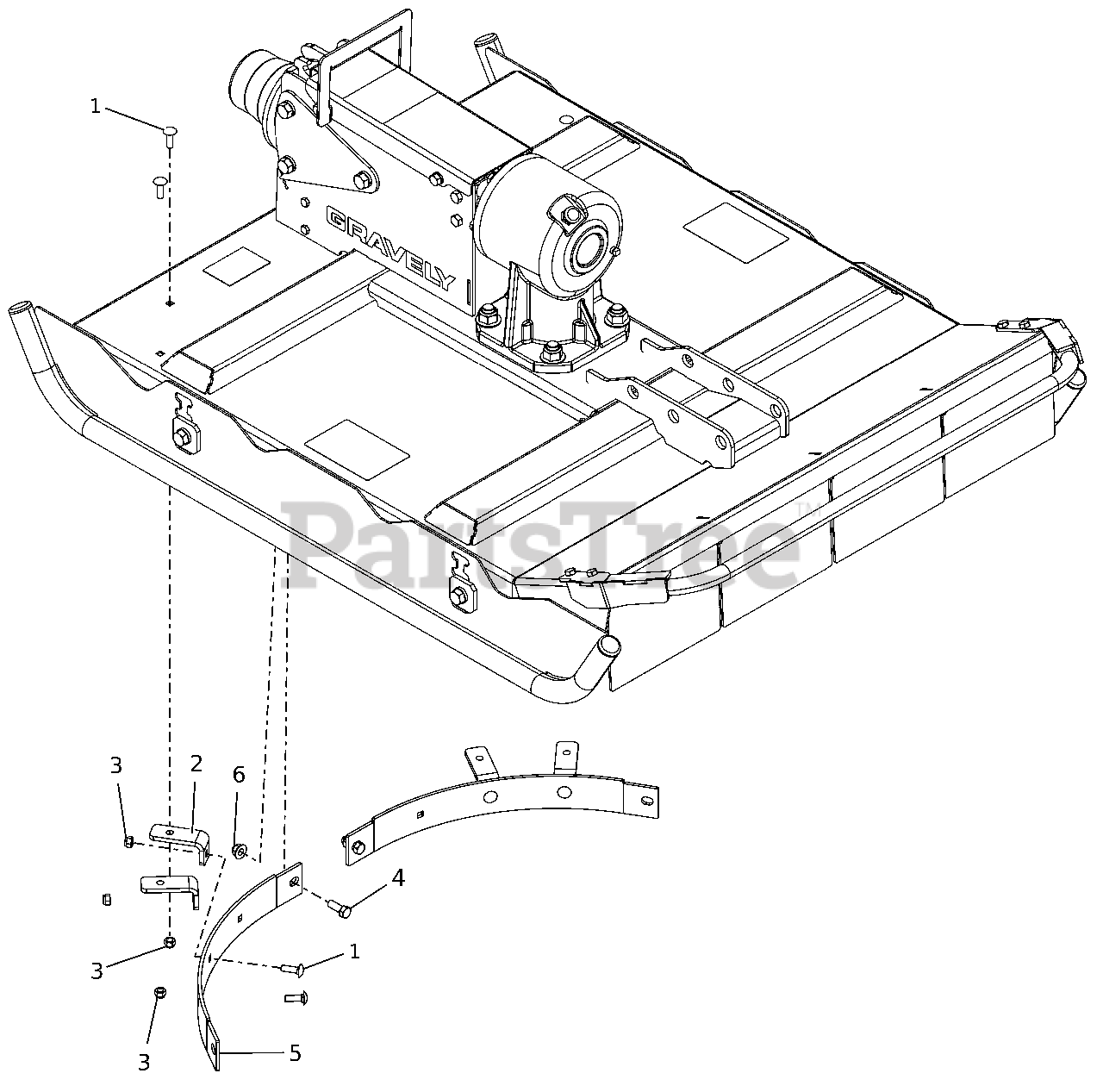

885913 - Gravely Pro-QXT 32" Rough-Cut Mower Attachment (SN: 000101 - 000999) Baffles Parts Diagram

Pro-QXT 32" Rough-Cut Mower Attachment

Baffles Parts Diagram

  • Title

1

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

2

Gravely 09132951

BRKT, SHIELD

$

$

Not available

3

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09140451

BAFFLE, DECK

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
