885913 - Gravely Pro-QXT 32" Rough-Cut Mower Attachment (SN: 000101 - 000999) Deck & Blades Parts Diagram
Pro-QXT 32" Rough-Cut Mower Attachment

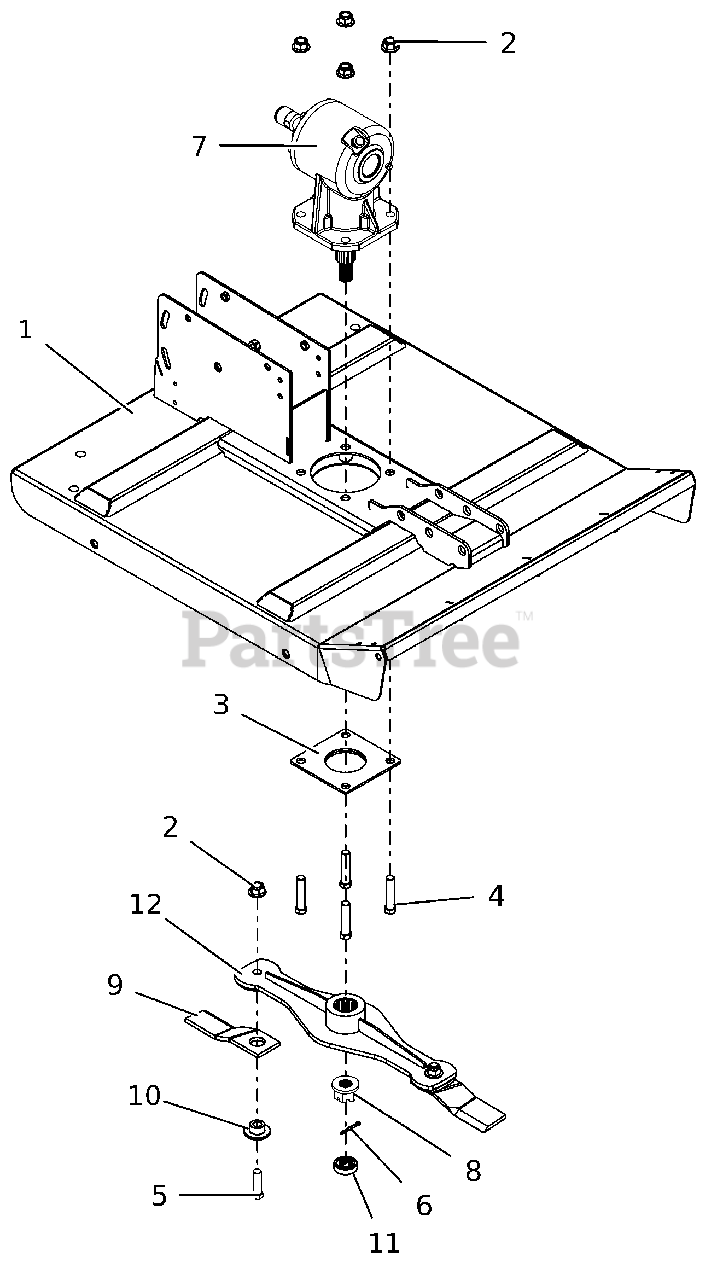

Deck & Blades Parts Diagram
Gravely 09131853
WLDT, DECK 32 IN ROUGH CUT
$
$
Not available
Gravely 06500833
NUT,NYL-FLG .63-11 GF ZCC
$3.99
$
Usually ships in 4-12 days
Gravely 09138853
WLDMT, HUB SHIELD (RED)
$30.99
$
Usually ships in 4-12 days
Gravely 05901635
BLT,HEX .63-11X2.75 G5 ZCC
$3.99
$
Usually ships in 4-12 days
Gravely 05901725
BLT, HEX .62-11X2.00 G8 ZCC
$6.49
$
In Stock, only 2 left!
Gravely 06700214
PIN,CTR.18X1.50EXTPRSQCT ZC120
$6.99
$
Usually ships in 4-12 days
Gravely 09138700
GEARBOX, 3034 BONDIOLI
$448.99
$
Usually ships in 4-12 days
Gravely 09138702
NUT, FLANGE
$
$
Not available
Gravely 78592000
KIT,RC MOWER REPLACEMENT BLADE
$146.99
$
Usually ships in 4-12 days
Gravely 09140200
BUSHING
$43.99
$
Usually ships in 4-12 days
Gravely 09140300
COLLAR, LOCKING 1.00-14
$60.99
$
Usually ships in 4-12 days
Gravely 09141051
WLDMT, DISC RC
$296.99
$
Usually ships in 4-12 days
