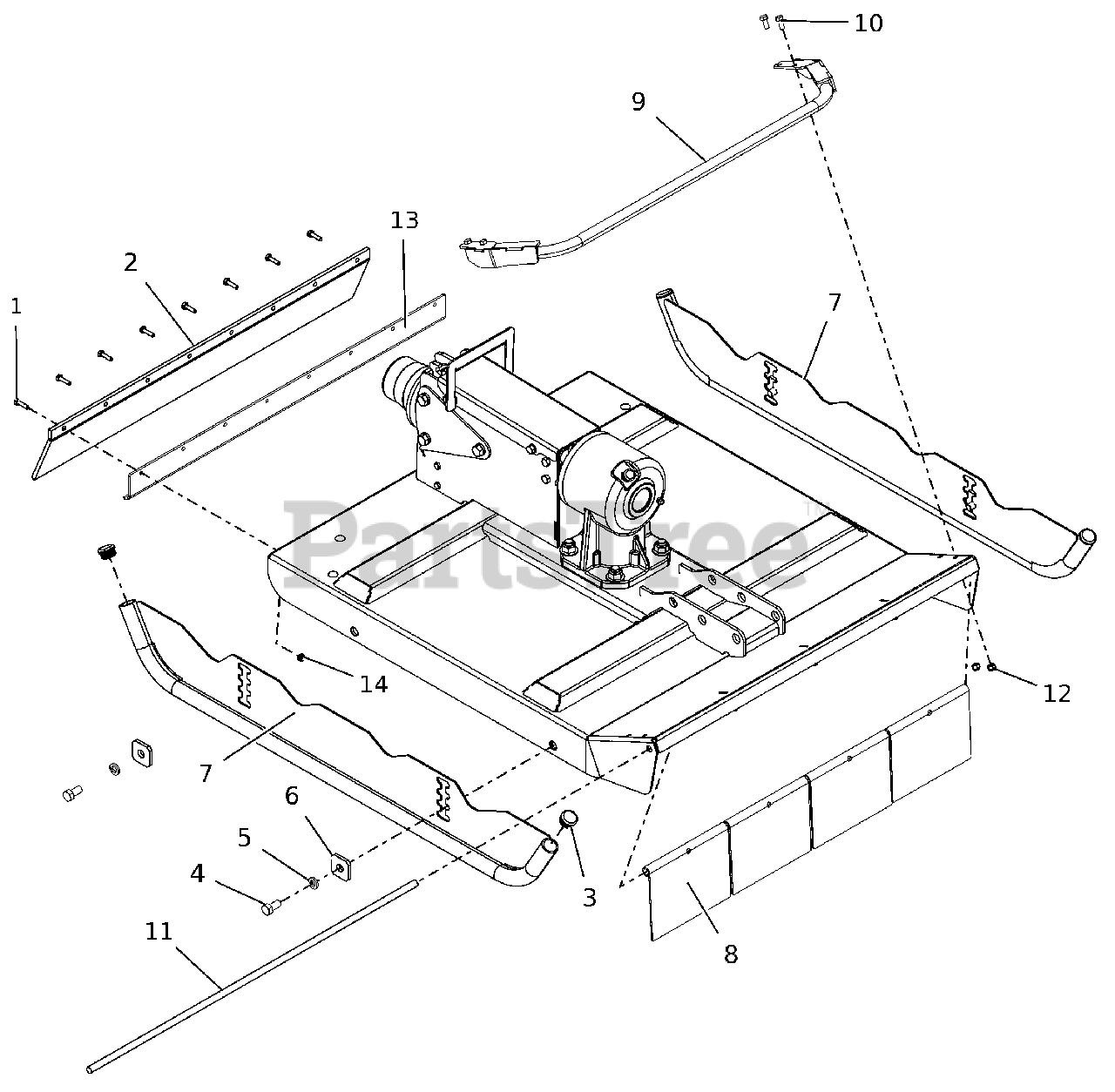

885913 - Gravely Pro-QXT 32" Rough-Cut Mower Attachment (SN: 000101 - 000999) Skids & Skirting Parts Diagram

Pro-QXT 32" Rough-Cut Mower Attachment

Skids & Skirting Parts Diagram

  • Title

1

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.49

$

In Stock, Qty 7

0

2

Gravely 09132800

SHEET, RUBBER

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 09137500

PLUG, CAP 1-1/4-10-14

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.49

$

In Stock, Qty 7

0

5

Gravely 06300117

WSHR,LK-HVY .500X.151 ZCC

$2.99

$

In Stock, only 1 left!

0

6

Gravely 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, Qty 15

0

7

Gravely 09134153

WLDMT, SKID

$310.99

$

Usually ships in 4-12 days

0

8

Gravely 09134251

PLATE, SKIRT FRONT RC

$

$

Not available

9

Gravely 09134353

WLDMT, GUARD FRONT

$218.99

$

Usually ships in 4-12 days

0

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 16

0

11

Gravely 09132500

ROD

$

$

Not available

12

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 09132651

PLATE, REAR SKIRT MNT

$

$

Not available

14

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0
