885914 - Gravely Pro-QXT 36" Finish Mower Attachment (SN: 000101 - 000999) Frame, Belt, Shield And Casters Parts Diagram

Pro-QXT 36" Finish Mower Attachment

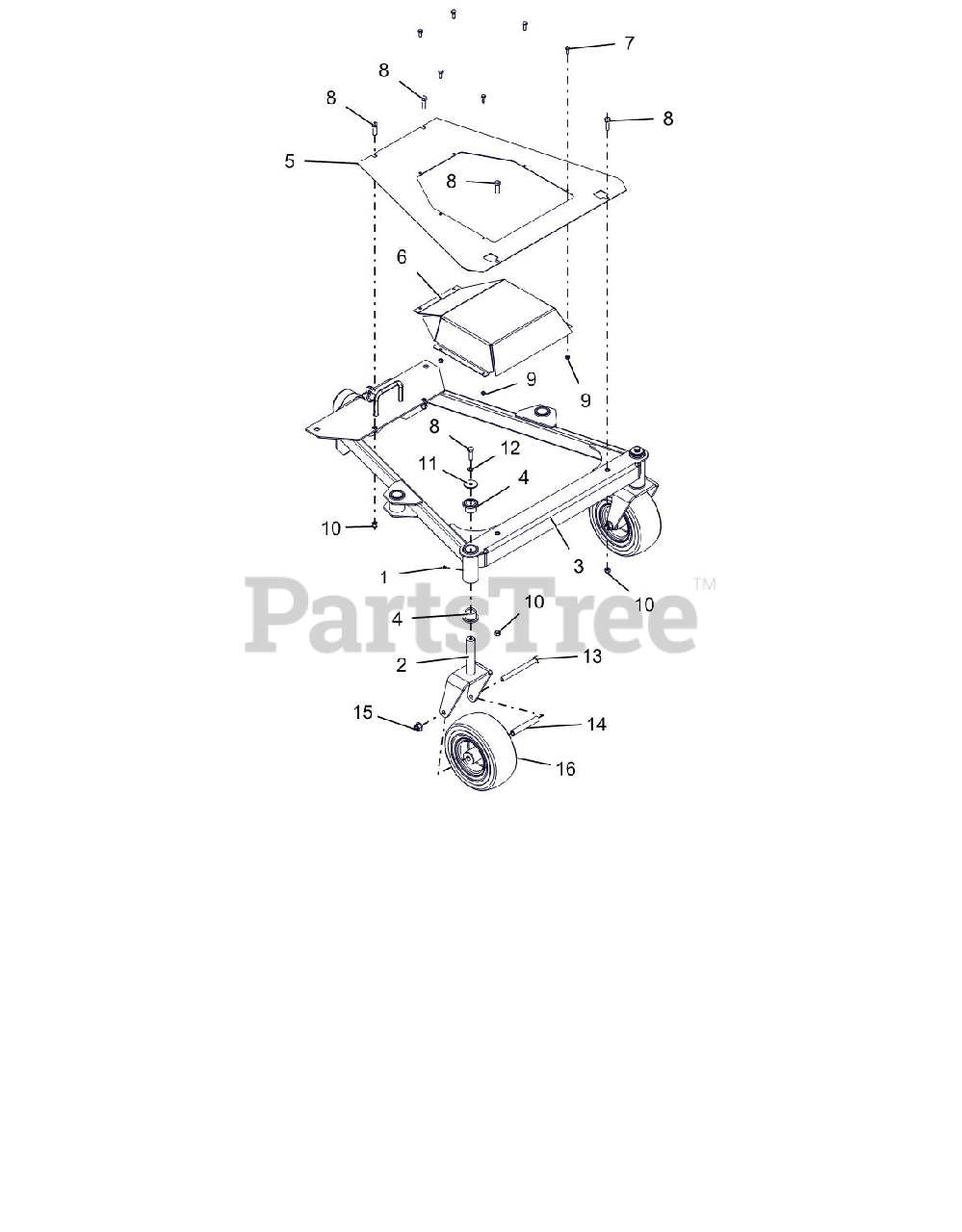

Frame, Belt, Shield And Casters Parts Diagram

  • Title

1

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 03855153

WLDT, FRONT WHEEL FLWLK GRVLY

$125.99

$

In Stock, only 2 left!

0

3

Gravely 09136253

WLDT, FRAME CARRIER 36" (RED)

$919.99

$

Usually ships in 4-12 days

0

4

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

In Stock, only 3 left!

0

5

Gravely 09136353

COVER

$

$

Not available

6

Gravely 09136451

WLDMT, COVER GB

$

$

Not available

7

Gravely 05901716

BLT, HEX .25-20X.75 GR5 ZC120

$1.49

$

In Stock, Qty 12

0

8

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, only 1 left!

0

9

Gravely 06500832

NUT,NYL .25-20 G5 ZCC

$5.49

$

In Stock, only 2 left!

0

10

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06401035

WSHR-FL-STL .380X1.50X.125ZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06300116

WSHR-LK .38X.094 REG ZC120

$1.49

$

In Stock, only 3 left!

0

13

Gravely 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$7.49

$

In Stock, only 2 left!

0

14

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 1 left!

0

15

Gravely 06500810

NUT,LK-NYL-FLG .50-13 G5ZC120

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07101112

ASM, WHL/TIRE 9X3.5-4 CAREFREE

$137.99

$

Usually ships in 4-12 days

0
