885914 - Gravely Pro-QXT 36" Finish Mower Attachment (SN: 000101 - 000999) Pulley And Idler Parts Diagram

Pro-QXT 36" Finish Mower Attachment

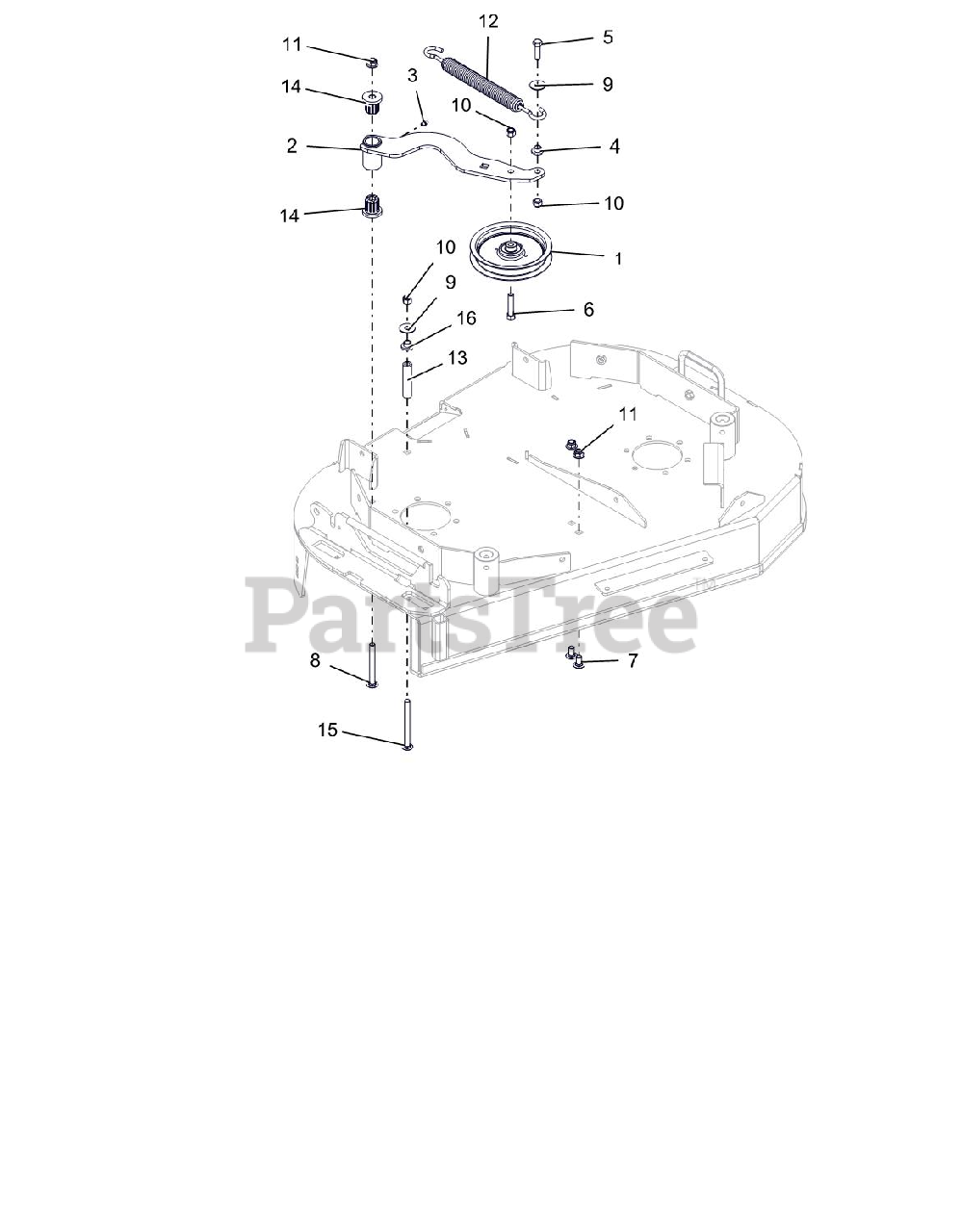

Pulley And Idler Parts Diagram

  • Title

1

Gravely 07334500

IDLER, FLAT-5.00X.75

$79.99

$

In Stock, only 3 left!

0

2

Gravely 09134851

WLDMT, IDLER ARM

$

$

Not available

3

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, only 2 left!

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 7

0

6

Gravely 05901612

BLT, HEX .38-16X1.75 G5ZC120

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06200125

BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06401034

WSHR-FL-STL .375X1.125X.065 ZC

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, Qty 19

0

11

Gravely 06500726

NUT,LK-NYL-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08300505

SPRING, EXTENSION

$23.99

$

In Stock, Qty 9

0

13

Gravely 09137251

TUBE, SPACER

$

$

Not available

14

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$14.99

$

In Stock, only 2 left!

0

15

Gravely 06200126

BLT-RHDSSQNK .38-16X4.00 G5YZ
(Superseded to 06200239)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, only 2 left!

0
