885915 - Gravely Pro-QXT 48" Finish Mower Attachment (SN: 000101 - 000999) Pulleys And Idler Parts Diagram

Pro-QXT 48" Finish Mower Attachment

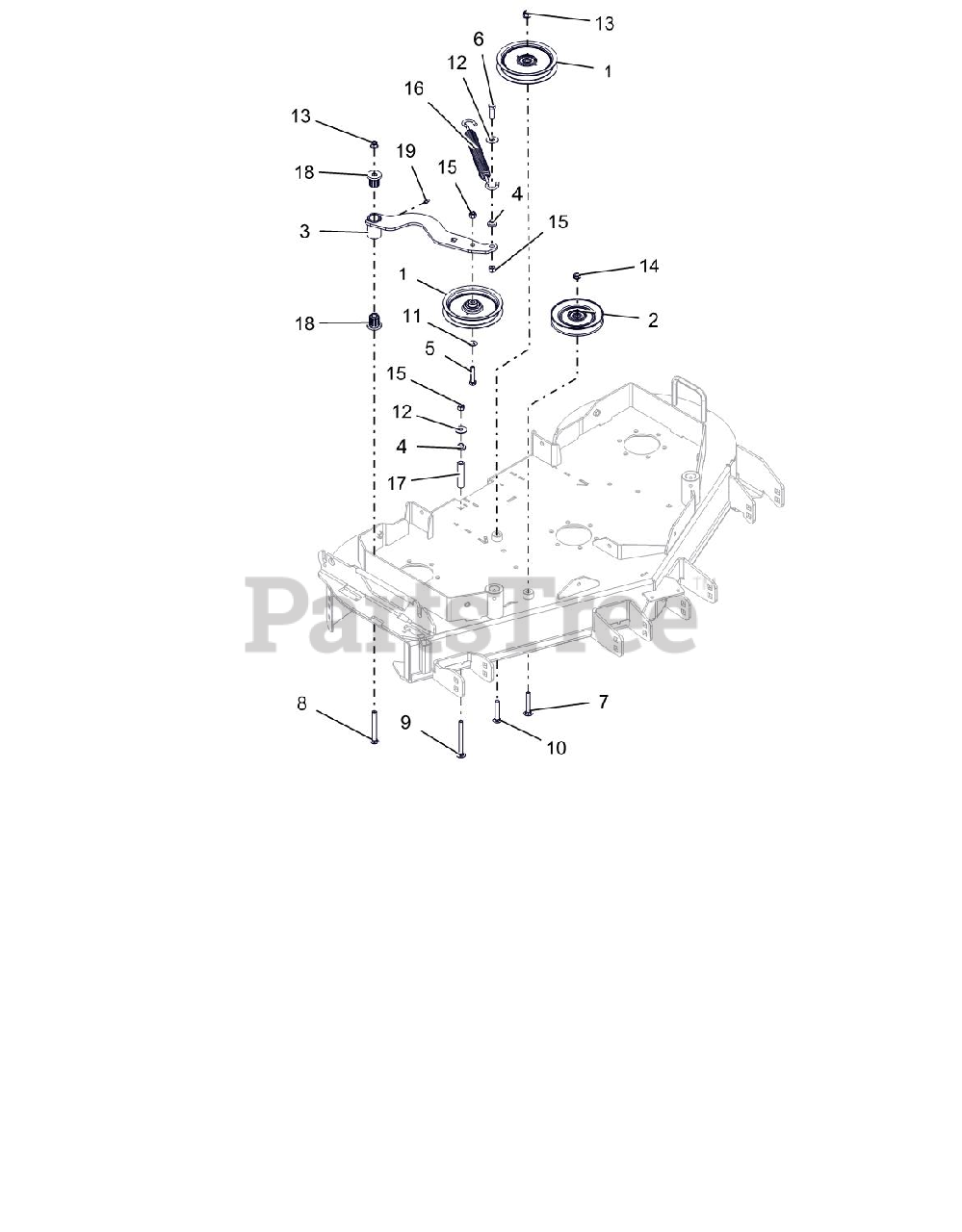

Pulleys And Idler Parts Diagram

  • Title

1

Gravely 07334500

IDLER, FLAT-5.00X.75

$79.99

$

In Stock, Qty 5

0

2

Gravely 07335000

IDLER, V-5.00

$68.99

$

In Stock, only 1 left!

0

3

Gravely 09134851

WLDMT, IDLER ARM

$

$

Not available

4

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, only 1 left!

0

5

Gravely 05901612

BLT, HEX .38-16X1.75 G5ZC120

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 7

0

7

Gravely 06200234

BLT,RHSN .38-16X2.50 G5 ZC120

$3.99

$

In Stock, only 3 left!

0

8

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06200239

BLT,RHSSN .38-16X4.00 G5 ZCC

$6.99

$

In Stock, only 1 left!

0

10

Gravely 06200301

BLT,RHSN .38-16X2.25 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06401013

WSHR,FL-STL.406X.812X.065ZC120

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401034

WSHR-FL-STL .375X1.125X.065 ZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06500726

NUT,LK-NYL-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, Qty 19

0

16

Gravely 08300505

SPRING, EXTENSION

$23.99

$

In Stock, only 2 left!

0

17

Gravely 09137251

TUBE, SPACER

$

$

Not available

18

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$14.99

$

In Stock, only 2 left!

0

19

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0
