885916 - Gravely Pro-QXT Aerator Attachment (SN: 000101 - 000999) Hand Lift Assembly Parts Diagram

Pro-QXT Aerator Attachment

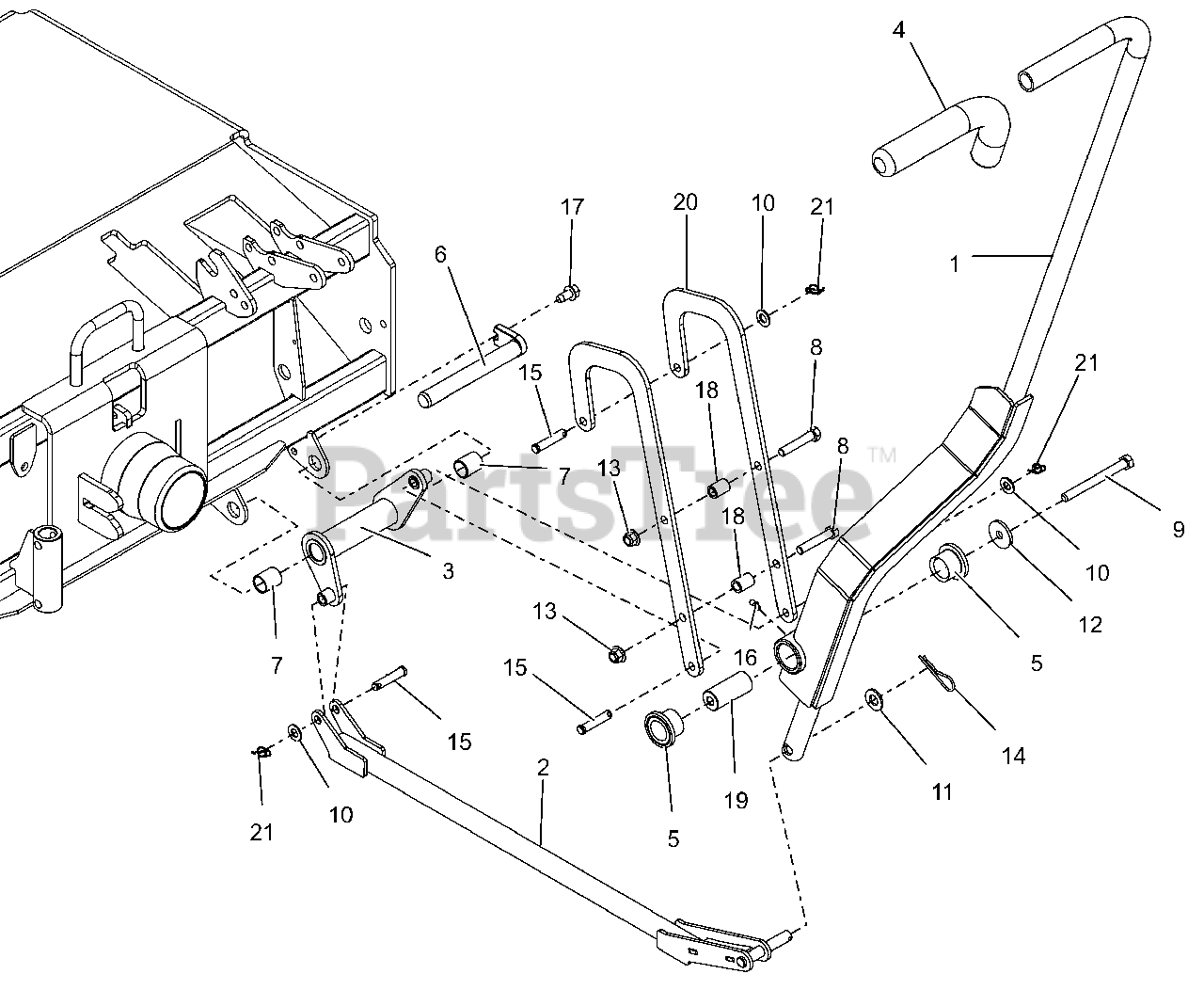

Hand Lift Assembly Parts Diagram

  • Title

1

Gravely 09151653

WLDMT, LIFT HANDLE

$281.99

$

Usually ships in 4-12 days

0

2

Gravely 09151553

WLDMT, LOWER LINK

$163.99

$

Usually ships in 4-12 days

0

3

Gravely 09151353

WLDMT, LIFT BRKT

$100.99

$

Usually ships in 4-12 days

0

4

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$15.99

$

In Stock, only 2 left!

0

5

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 05157900

PIN, MOWER MTG

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, Qty 8

0

8

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 9

0

9

Gravely 05902027

BLT,HEX M10-1.5X100 G8.8 ZCC

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 5

0

13

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06700215

PIN, HAIR-#7 .094X2.31 ZC120

$5.99

$

In Stock, only 2 left!

0

15

Gravely 06813300

PIN-CLEV .370X1.75

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09142751

TUBE, SPACER

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 09146200

SPCR, PIVOT

$44.99

$

Usually ships in 4-12 days

0

20

Gravely 09151451

ARM, LIFT

$52.99

$

Usually ships in 4-12 days

0

21

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0
