885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Gearbox Drive Parts Diagram

Pro-QXT Dethatcher Attachment

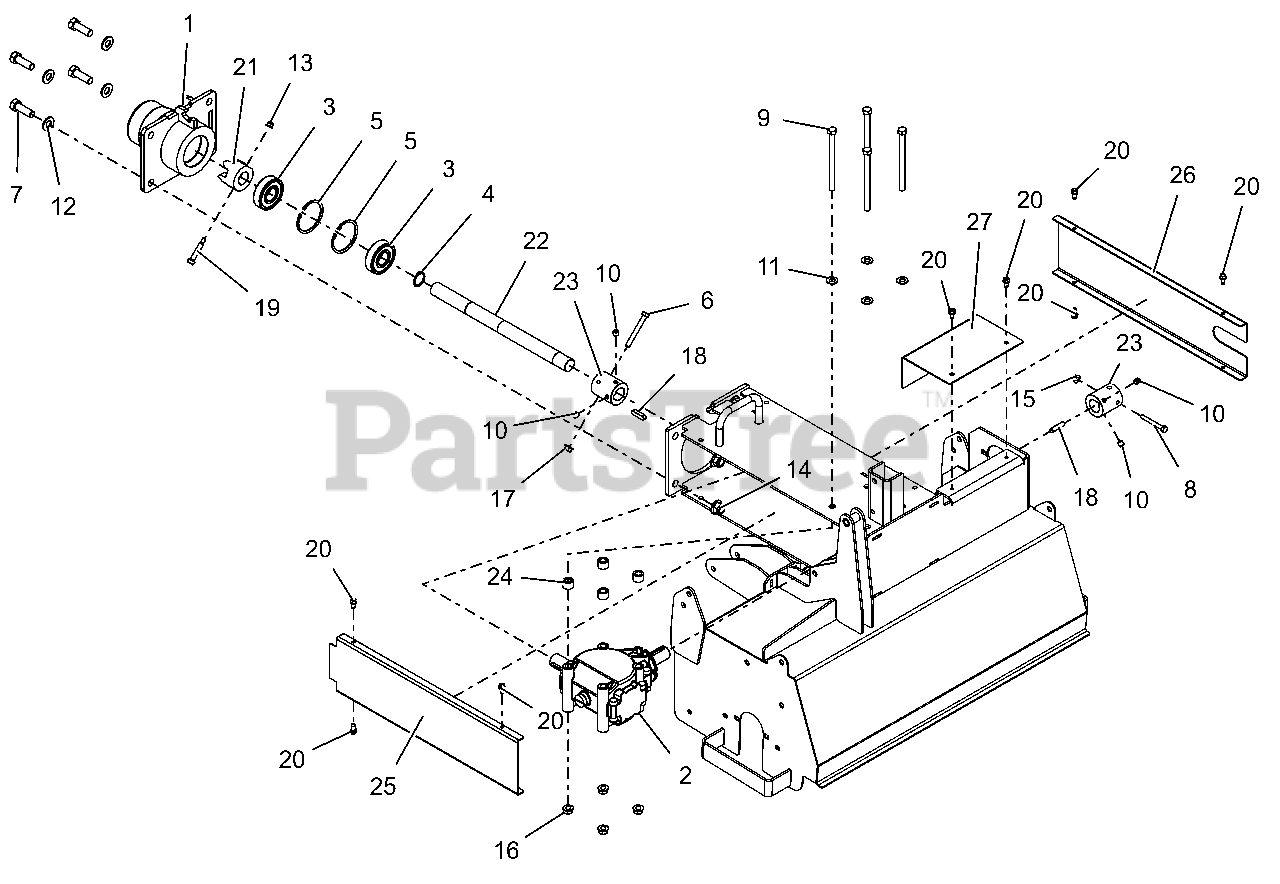

Gearbox Drive Parts Diagram

  • Title

1

Gravely 09146853

WLDMT, CONNECTOR - RED

$384.99

$

Usually ships in 4-12 days

0

2

Gravely 09134000

GEARBOX, 90 DEG- 1:1.9

$431.99

$

Usually ships in 4-12 days

0

3

Gravely 00200046

BEARING, 6305LLC

$29.99

$

Usually ships in 4-12 days

0

4

Gravely 05700223

RING, RETAINING-EXTERNAL 25MM X 1.2MM

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 05702300

RG-RTNG-INT 2.438X.078

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05901613

BLT, HEX M8-1.25 X 65 G8.8 ZCC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$4.99

$

In Stock, Qty 5

0

8

Gravely 05901638

BLT,HEX .25-20X2.25 G8 ZCC

$3.99

$

In Stock, only 2 left!

0

9

Gravely 05901927

BLT, HEX .38-16X5.00 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06000033

SET SCREW, 3/8-24 X 3/8 (CUP)

$

$

Not available

11

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 7

0

13

Gravely 06500729

NUT,NYL-FLG M6-1.0 G8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 6

0

18

Gravely 06600223

KEY-STR 8X7X32MM ROUND ENDS

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 07001813

BLT,SHLDR M8X35

$32.99

$

Usually ships in 4-12 days

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09125410

ROUGH CUT CLAW COUPLING

$298.99

$

Usually ships in 4-12 days

0

22

Gravely 09145100

SHAFT, INPUT

$85.99

$

Usually ships in 4-12 days

0

23

Gravely 09145200

TUBE, CONNECTOR

$147.99

$

Usually ships in 4-12 days

0

24

Gravely 09145351

SPCR, TUBE (BLACK)

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 09145451

SHIELD, RH

$44.99

$

Usually ships in 4-12 days

0

26

Gravely 09145551

SHIELD, LH - BLACK

$44.99

$

Usually ships in 4-12 days

0

27

Gravely 09145651

SHIELD, OUTPUT

$34.99

$

Usually ships in 4-12 days

0
