885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Guards And Tine Shaft Bearings Parts Diagram

Pro-QXT Dethatcher Attachment

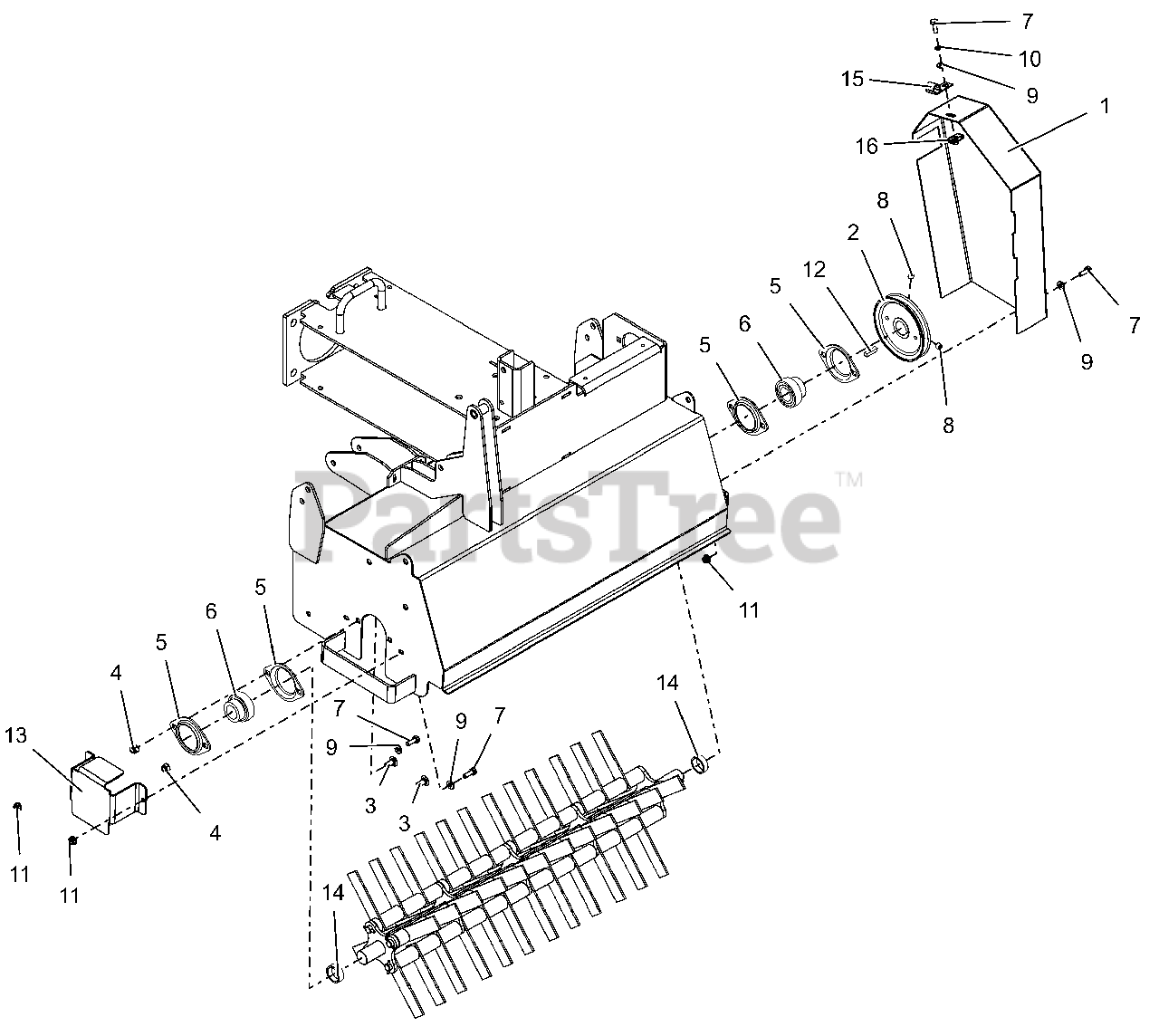

Guards And Tine Shaft Bearings Parts Diagram

  • Title

1

Gravely 58503300

BELT SHIELD WLDMT W/SAFETY DECALS

$

$

Not available

2

Gravely 09152151

WLDMT, PULLEY 4.75 IN

$57.99

$

Usually ships in 4-12 days

0

3

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 9

0

4

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 05426100

MTG-FLG 2 HOLE 52MM X 3.75

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 05426200

BRG/W COLLAR 1.0 X 2.047 X.844

$45.99

$

In Stock, only 3 left!

0

7

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 12

0

8

Gravely 06000033

SET SCREW, 3/8-24 X 3/8 (CUP)

$

$

Not available

9

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 15

0

10

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 16

0

11

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 6

0

13

Gravely 09152253

COVER, END

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 09152451

SPCR, 1.25 X .406

$20.99

$

Usually ships in 4-12 days

0

15

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

16

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0
