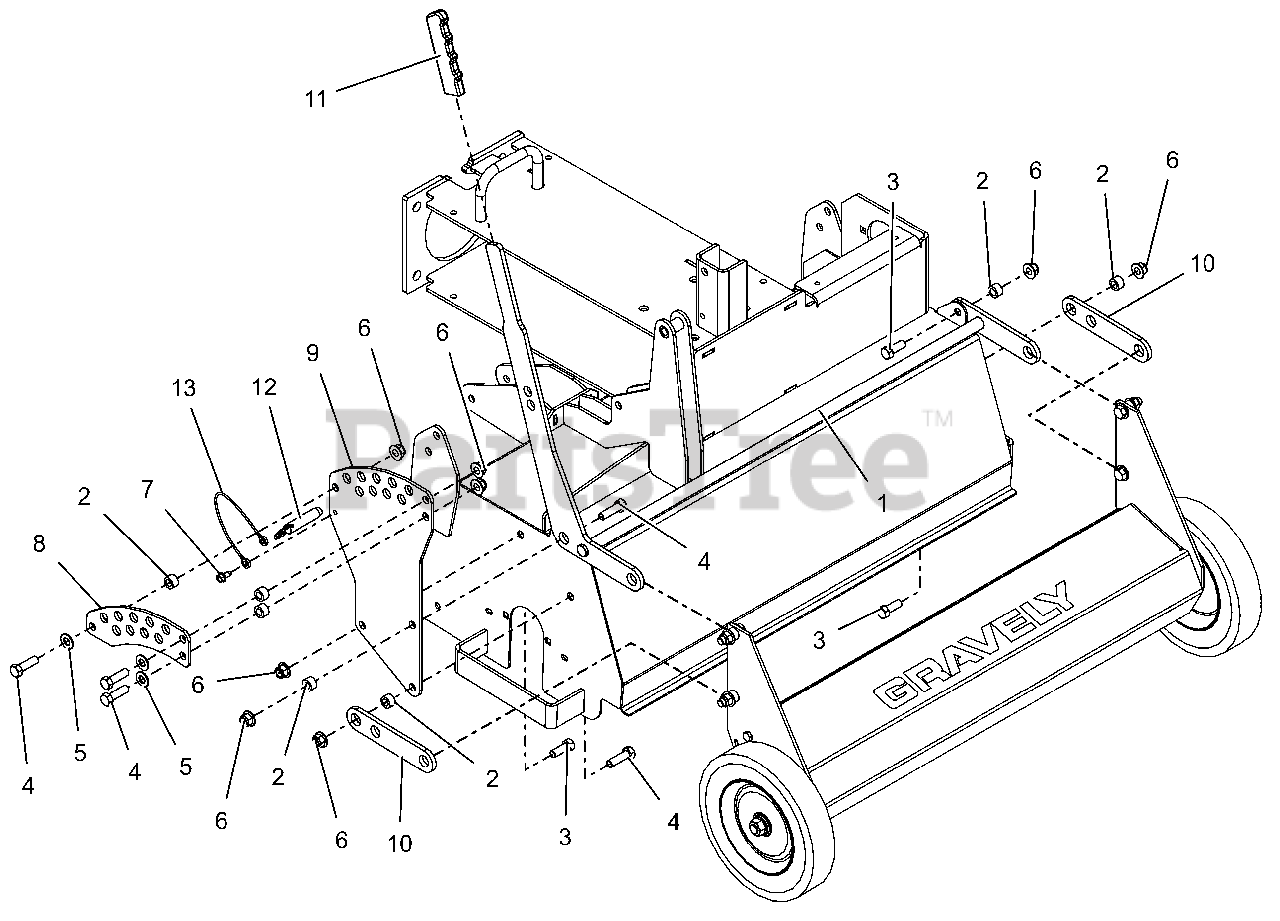

885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Height Control Parts Diagram

Pro-QXT Dethatcher Attachment

Height Control Parts Diagram

  • Title

1

Gravely 09147151

WLDMT, CONTROL HEIGHT

$123.99

$

Usually ships in 4-12 days

0

2

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

3

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

5

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09146451

BRKT, CONTROL OUTER (BLACK)

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 09146551

BRKT, CONTROL

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 09146951

PLT, LINK ST

$19.99

$

Usually ships in 4-12 days

0

11

Gravely TCU19034

GRIP
(Superseded to 03826900)

$4.99

$

In Stock, only 2 left!

0

12

Gravely 05117300

PIN, .500 x 2.000 USABLE LG BALL

$

$

Currently unavailable

13

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, only 2 left!

0
