8861 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HOUSING AND SHROUD GROUP MODEL: 8861 Parts Diagram

Walk-Behind Mower

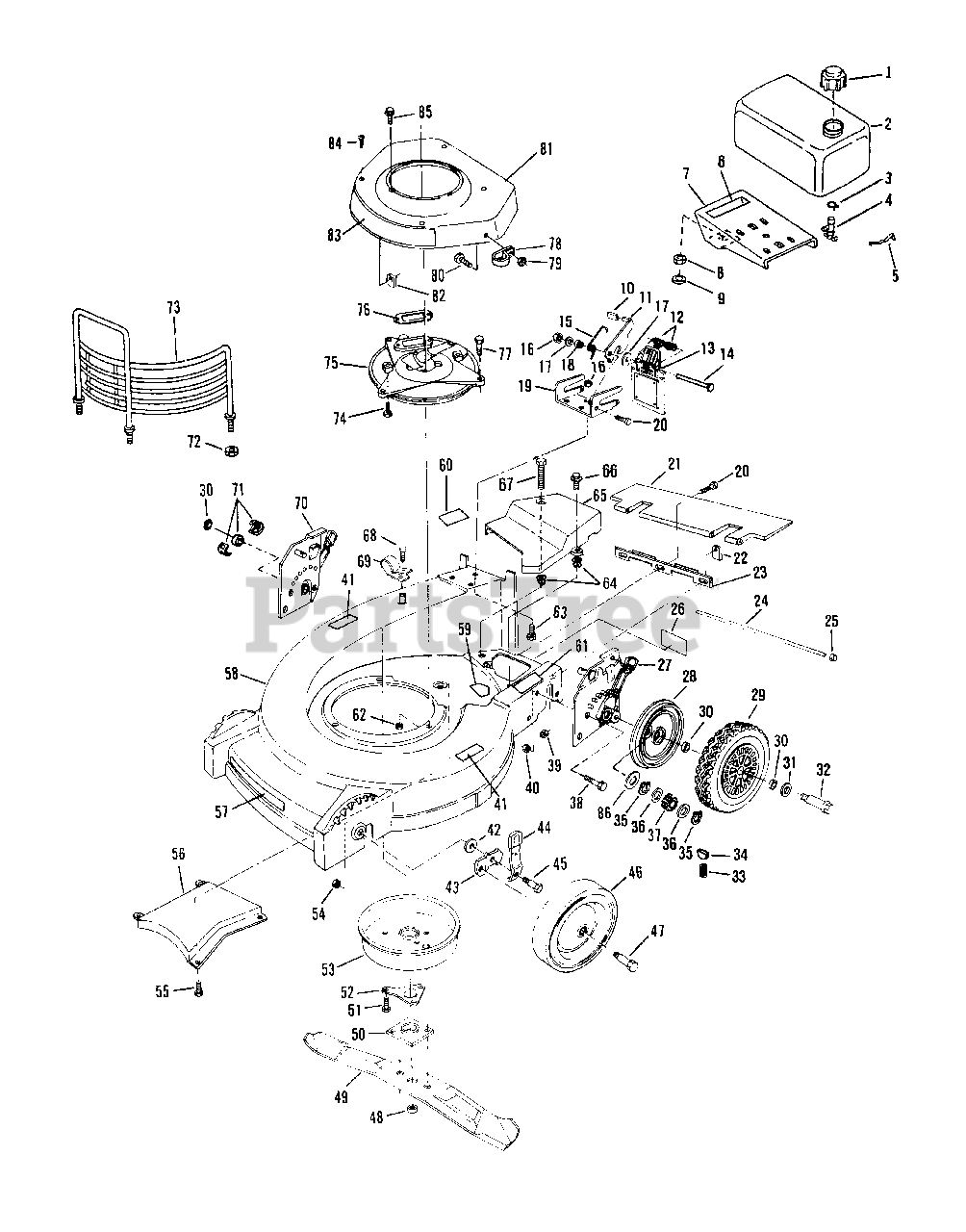

HOUSING AND SHROUD GROUP MODEL: 8861 Parts Diagram

  • Title

1

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 9

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 613164

Fuel Tank
(Superseded to 612433)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 312387

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

4

Lawn-Boy 677052

Shut-Off Valve and Screen

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, Qty 5

0

5

Lawn-Boy 609830

Spring-Fuel Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

6

Lawn-Boy 612753

Decal-Fuel Mixture

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 612797

Bracket-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$234.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 602315

Nut-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 602945

Washer-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612658

Knob-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611486

Latch-Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611480

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 683039

Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611493

Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611491

Spring-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 611485

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611484

Stepped Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611496

Hinge Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 609892

Screw-Latch Mounting and Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611495

Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611602

Clamp-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 612363

Bracket-Bag Support

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 609975

Nut-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611533

Decal-Caution

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 683742

Height Adjust Assembly-L.H.
(Superseded to 683688)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683195

Bearing and Retainer Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 612236

Cover-Wheel
(Superseded to 613512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684053

Wheel-Rear

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 605256

Washer-Rear Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

32

Lawn-Boy 612604

Screw-Rear Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 612067

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 612066

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

36

Lawn-Boy 612068

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 612064

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 610404

Screw-Handle Bracket to Housing
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 602315

Nut-Bag Support Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

40

Lawn-Boy 608311

Nut-Handle Bracket to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 612071

Decal-Cutting Height

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 608834

Washer Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 683464

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$79.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 603567

Bolt-Front Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$13.99

$

In Stock, only 3 left!

0

48

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 7

0

49

Lawn-Boy 683680

Blade-20"
(Superseded to 612542-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 11

0

51

Lawn-Boy 609471

Screw-Muffler Cover to Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$143.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 603773

Nut-Wheel Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

55

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

56

Lawn-Boy 611497

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 613156

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 684009

Housing-20" Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 610640

Decal-Blade Contact
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

60

Lawn-Boy 612879

Decal-Commercial Mower

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 612880

Decal-Commercial Safety Warning

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 606450

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

64

Lawn-Boy 604604

Grommet-Belt Cover
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

65

Lawn-Boy 684055

Belt Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 612055

Screw-Belt Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

67

Lawn-Boy 611849

Screw-Hex Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 611503

Screw-Clamp to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 611504

Clamp-Cable to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 683741

Height Adjust Assembly-R.H.
(Superseded to 684172)

Note: Important Note: Replacement parts may not always be available in matching colors.

$270.99

$

Usually ships in 3-6 days

0

71

Lawn-Boy 683195

Bearing and Retainer Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

72

Lawn-Boy 608311

Nut-Guard Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 683800

Engine Guard Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 5

0

75

Lawn-Boy 612736

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$217.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

77

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

78

Lawn-Boy 611504

Clamp-Throttle Cable to Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

79

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

80

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

81

Lawn-Boy 683638

Shroud and Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 145945

Retainer-Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 612754

Applique-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 611395

Screw-Shroud Mounting
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

85

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

86

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

Lawn-Boy 611831

Fitting-Lube-Rear Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0
