887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000101 - 000723)

60" Deck for Center Mount 4-Wheel Tractor

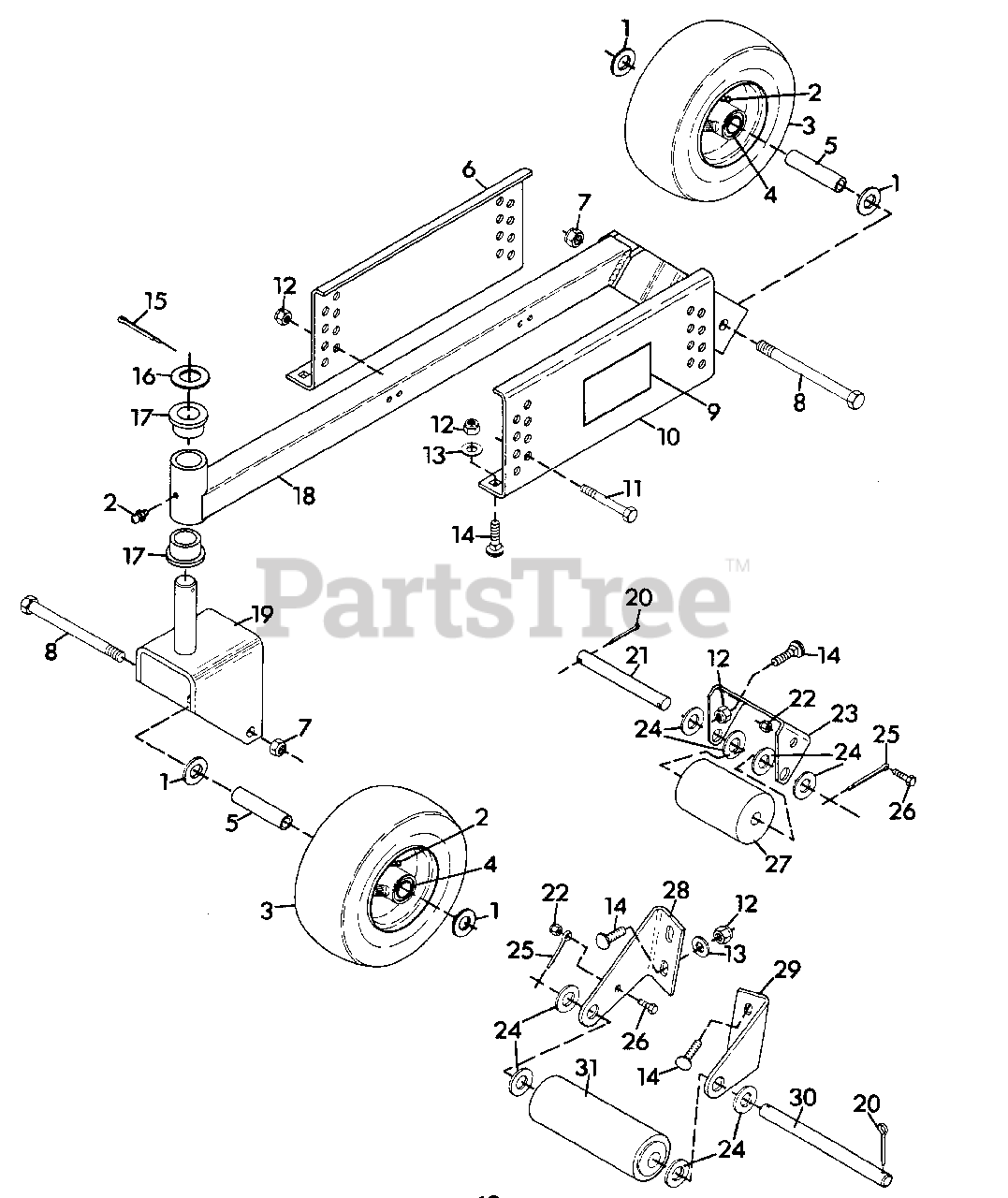

887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000101 - 000723) > Parts Diagrams (3) > GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT

  • Title
415543

1

Washer, Flat .531x1.250x.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

411027

2

Fitting, Lube 1/4-28

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

045205

3

Wheel, Gauge

Part# 045205 (Superseded to 07130100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $62.05

037823

4

Bearing, Gauge Wheel

Part# 037823 (Superseded to 05408900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

011950

5

Bushing, Wheel

Part# 011950 (Superseded to 09023500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.08

045510

6

Hanger, L.H.

Part# 045510 (Superseded to 21275200)

OEM Warranty Repair Part for Gravely

Not available

435507

7

Nut, Lock 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

433163

8

Bolt, Hex 1/2-13x5.00

Part# 433163 (Superseded to 05962200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

033927

9

Decal, Danger Foot

Part# 033927 (Superseded to 05350100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

045509

10

Hanger, R.H.

Part# 045509 (Superseded to 21275100)

OEM Warranty Repair Part for Gravely

Not available

180134

11

Bolt, Hex 3/8-16x2.50

Part# 180134 (Superseded to 05958400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

456004

12

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

120394

13

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120915

14

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

137253

15

Pin, Cotter .187x1.625

Part# 137253 (Superseded to 06705800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

019340

16

Race, Bearing Thrust

Part# 019340 (Superseded to 06435300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

018355

17

Bushing, Pivot

Part# 018355 (Superseded to 05520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

045487

18

Weldment, Caster Wheel Support

Part# 045487 (Superseded to 08791800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

045523

19

Weldment, Caster Fork

Part# 045523 (Superseded to 08969153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $266.06

179128

20

Pin, Cotter .25x1.00

Part# 179128 (Superseded to 06713000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

045211

21

Rod

Part# 045211 (Superseded to 08966900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

120375

22

Nut, Hex 1/4-20

Part# 120375 (Superseded to 06533200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

045210

23

Bracket, Roller

Part# 045210 (Superseded to 08966853)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

131016

24

Washer, Flat .656x1.312x.095

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

103422

25

Pin, Cotter .250x2.00

Part# 103422 (Superseded to 06713100)

OEM Warranty Repair Part for Gravely

Not available

180020

26

Bolt, Hex 1/4-20x.75

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

015351

27

Roller, Gauge

Part# 015351 (Superseded to 07520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

045567

28

Bracket, Roller L.H.

Part# 045567 (Superseded to 08970000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

045568

29

Bracket, Roller R.H.

Part# 045568 (Superseded to 08970153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

024795

30

Shaft, Center Roller

Part# 024795 (Superseded to 08598800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.14

031390

31

Roller, Gauge

Part# 031390 (Superseded to 08803300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $34.60
