Parts Home > Gravely > Accessories & Attachments > 887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000101 - 000723) > MOWER DECK

887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000101 - 000723)

60" Deck for Center Mount 4-Wheel Tractor

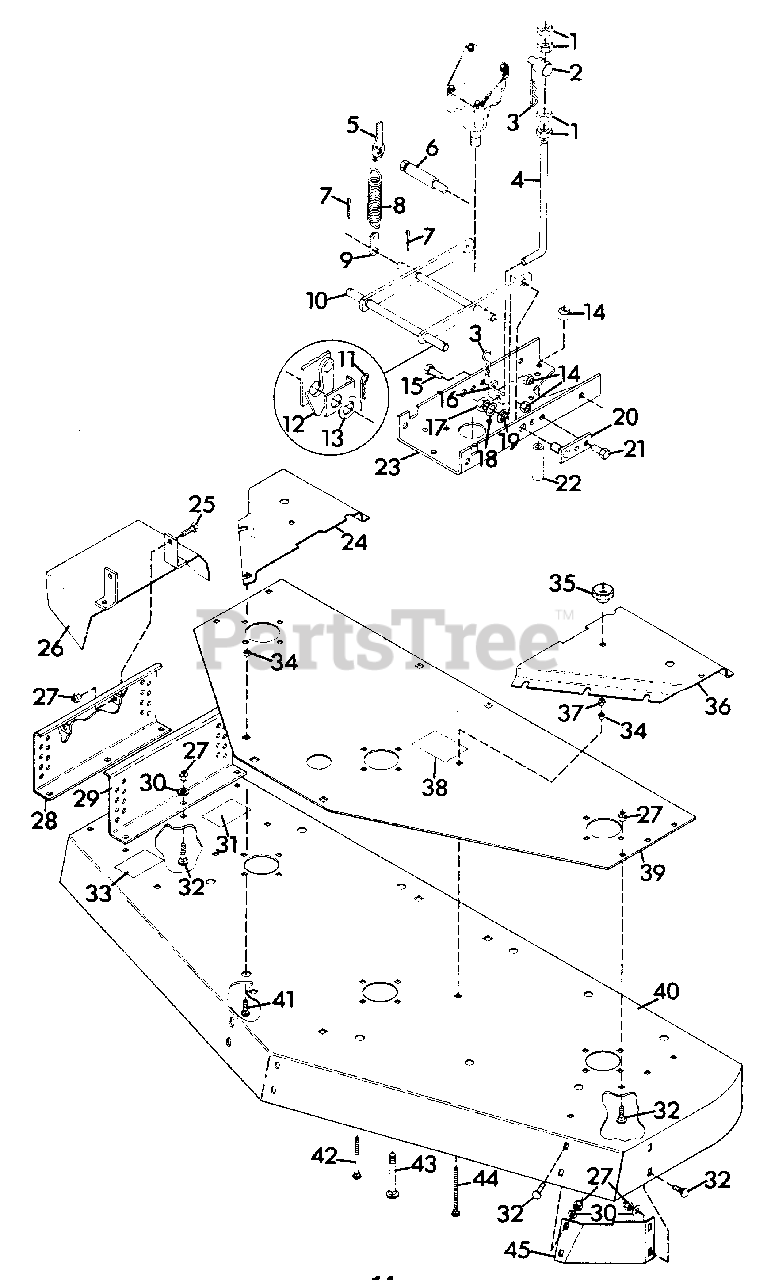

887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000101 - 000723) > Parts Diagrams (3) > MOWER DECK

  • Title
120238

1

Nut, Jam 1/2-13 Hex

Part# 120238 (Superseded to 06529300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

040625

2

Pivot, Mower Lift

Part# 040625 (Superseded to 08811600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.89

015691

3

Pin, Cotter Hair

Part# 015691 (Superseded to 06714900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

040815

4

Rod, Lift

Part# 040815 (Superseded to 08655500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $66.91

040309

5

Latch, Spring Assembly R.H.

Part# 040309 (Superseded to 08747300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $40.53

040311

5

Latch, Spring Assembly L.H.

Part# 040311 (Superseded to 08747400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

031688

6

Latch, Pin

Part# 031688 (Superseded to 08729600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

120123

7

Pin, Cotter .125x1.25

Part# 120123 (Superseded to 06712600)

OEM Warranty Repair Part for Gravely

Not available

011272

8

Spring, Ext. 7.625x1.50x.70 Rate

Part# 011272 (Superseded to 08334300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

011273

9

Strap

Part# 011273 (Superseded to 08861800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

040512

10

Weldment, Pivot Arm

Part# 040512 (Superseded to 08748800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

010405

11

Pin, Hair

Part# 010405 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

037982

12

Keeper, Mower Pivot

Part# 037982 (Superseded to 08741100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

423315

13

Washer, Flat .813x1.37x.100

Part# 423315 (Superseded to 06439000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

435507

14

Nut, Lock 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180179

15

Bolt, Hex 1/2-13x1.75

Part# 180179 (Superseded to 05970600)

OEM Warranty Repair Part for Gravely

Not available

040816

16

Bracket, Lift

Part# 040816 (Superseded to 08751900)

OEM Warranty Repair Part for Gravely

Not available

034112

17

Nut, Lock 3/4-10

Part# 034112 (Superseded to 06526300)

OEM Warranty Repair Part for Gravely

Not available

011223

18

Race, Bearing Thrust

Part# 011223 (Superseded to 06413400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

010174

19

Bushing, Nylon 76x1.0x.6 Flg.

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

037987

20

Weldment, Pivot Anchor

Part# 037987 (Superseded to 08741400)

OEM Warranty Repair Part for Gravely

Not available

180177

21

Bolt, Hex 1/2-13x1.50

Part# 180177 (Superseded to 05962000)

OEM Warranty Repair Part for Gravely

Not available

031367

22

Spacer, .850x.546x2.18

Part# 031367 (Superseded to 08827800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

040511

23

Plate, Support

Part# 040511 (Superseded to 08748700)

OEM Warranty Repair Part for Gravely

Not available

040534

24

Cover, Belt R.H.

Part# 040534 (Superseded to 08749100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

180124

25

Bolt, Hex 3/8-16x1.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035668

26

Weldment, Discharge Chute

Part# 035668 (Superseded to 09090300)

OEM Warranty Repair Part for Gravely

Not available

456004

27

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

045573

28

Weldment, 60" Hanger

Part# 045573 (Superseded to 21275600)

OEM Warranty Repair Part for Gravely

Not available

045510

29

Hanger, L.H.

Part# 045510 (Superseded to 21275200)

OEM Warranty Repair Part for Gravely

Not available

120394

30

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

033926

31

Decal, Danger Hand

Part# 033926 (Superseded to 05350300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

120915

32

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

033928

33

Decal, Warning Eye

Part# 033928 (Superseded to 05350200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

124824

34

Nut, Jam 5/16-18 Hex

Part# 124824 (Superseded to 06536100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

041674

35

Knob

Part# 041674 (Superseded to 07534800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

040535

36

Cover, Belt L.H.

Part# 040535 (Superseded to 08749200)

OEM Warranty Repair Part for Gravely

Not available

419455

37

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

031834

38

Decal, Belt Diagram

Part# 031834 (Superseded to 05208100)

OEM Warranty Repair Part for Gravely

Not available

040536

39

Plate, Deck Support

Part# 040536 (Superseded to 08936300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46

045546

40

Weldment, 60" Deck

Part# 045546 (Superseded to 08969400)

OEM Warranty Repair Part for Gravely

Not available

126358

41

Bolt, Carriage 5/16-18x1.00

Part# 126358 (Superseded to 06216100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

040193

42

Bolt, Hex 5/16-18x3.50

Part# 040193 (Superseded to 06221300)

OEM Warranty Repair Part for Gravely

Not available

126803

43

Bolt, 1/2-13x3.50 Rd Hd Sq Nk

Part# 126803 (Superseded to 06218500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

040546

44

Bolt, 5/16-16x4.0 Rd Hd Sq Nk

Part# 040546 (Superseded to 06222500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

031354

45

Baffle, Front

Part# 031354 (Superseded to 08905253)

OEM Warranty Repair Part for Gravely

Not available

038769

Stripe

Part# 038769 (Superseded to 07852100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89
