887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000768 - 009999) MOWER SPINDLES Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

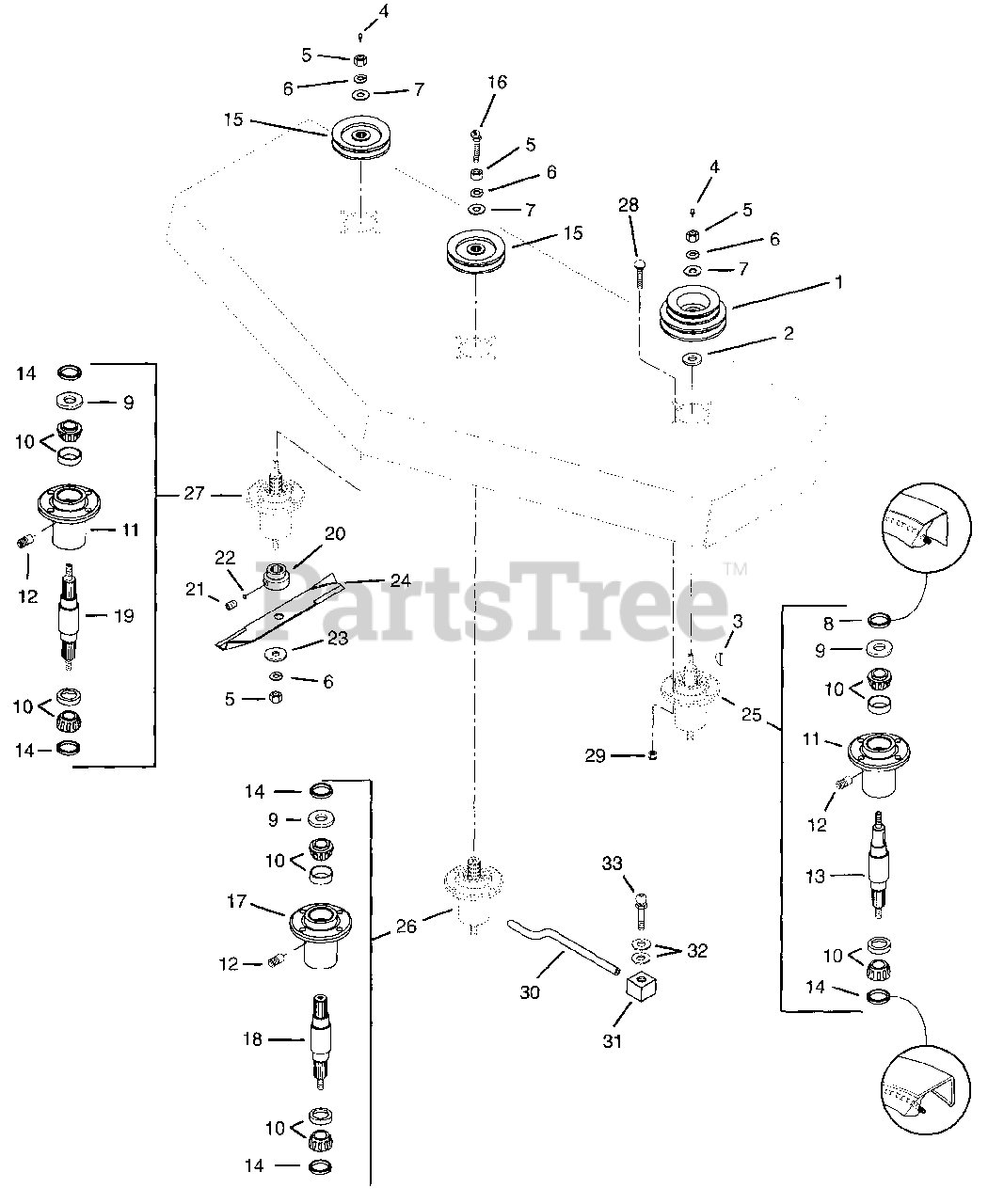

MOWER SPINDLES Parts Diagram

  • Title

1

Gravely 08895600

Sheave

$

$

Not available

2

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

3

Gravely 124553

Key-Woodruff .25 x 1.00 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

5

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06300700

Washer-Lock .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$15.99

$

In Stock, only 1 left!

0

9

Gravely 06416600

Washer-Flat Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

10

Gravely 038199

Assembly-Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 12

0

11

Gravely 08894500

Bearing Housing

$

$

Not available

12

Gravely 08896800

Relief Fitting-Grease

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 58802900

Spindle Shaft Service Assembly

$125.99

$

Usually ships in 4-12 days

0

14

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, Qty 11

0

15

Gravely 08895100

Sheave

$156.99

$

Usually ships in 4-12 days

0

16

Gravely 022065

Bolt-Hex Spec 1/2-13 x 1.34
(Superseded to 08724300)

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 08894600

Bearing Housing

$68.99

$

Usually ships in 4-12 days

0

18

Gravely 08899900

Spindle Shaft

$137.99

$

Usually ships in 4-12 days

0

19

Gravely 58802800

Spindle Shaft Service Assembly

$85.99

$

In Stock, only 4 left!

0

20

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

21

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

23

Gravely 06435200

Washer
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

24

Gravely 025124

Blade
(Superseded to 08904600)

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 58802400

Spindle Service Kit (Left)
(Superseded to 58803600)

Note: (Contains one each of Items 4,7,8,9,11,12,13,14,20,21,22,23; two each of Items 5,6,10)

$250.99

$

In Stock, only 1 left!

0

26

Gravely 58802600

Spindle Service Kit (Center)
(Superseded to 58803700)

Note: (Contains one each of Items 7,8,9,12,16,17,18,20,21,22,23; two each of Items 5,6,10,14)

$355.99

$

Usually ships in 4-12 days

0

27

Gravely 58802300

Spindle Service Kit (Right)
(Superseded to 58803600)

Note: (Contains one each of Items 4,7,8,9,11,12,19,20,21,22,23; two each of Items 5,6,10,14)

$250.99

$

In Stock, only 1 left!

0

28

Gravely 126406

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

29

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

30

Gravely 08799000

Grease Tube

$

$

Not available

31

Gravely 08799100

Grease Fitting

$29.99

$

Usually ships in 4-12 days

0

32

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 07025400

Fitting-Lube .12 x 65 x 1.18

$

$

Not available
