887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000768 - 009999) WHEELS, ROLLERS & HEIGHT ADJUSTMENT Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

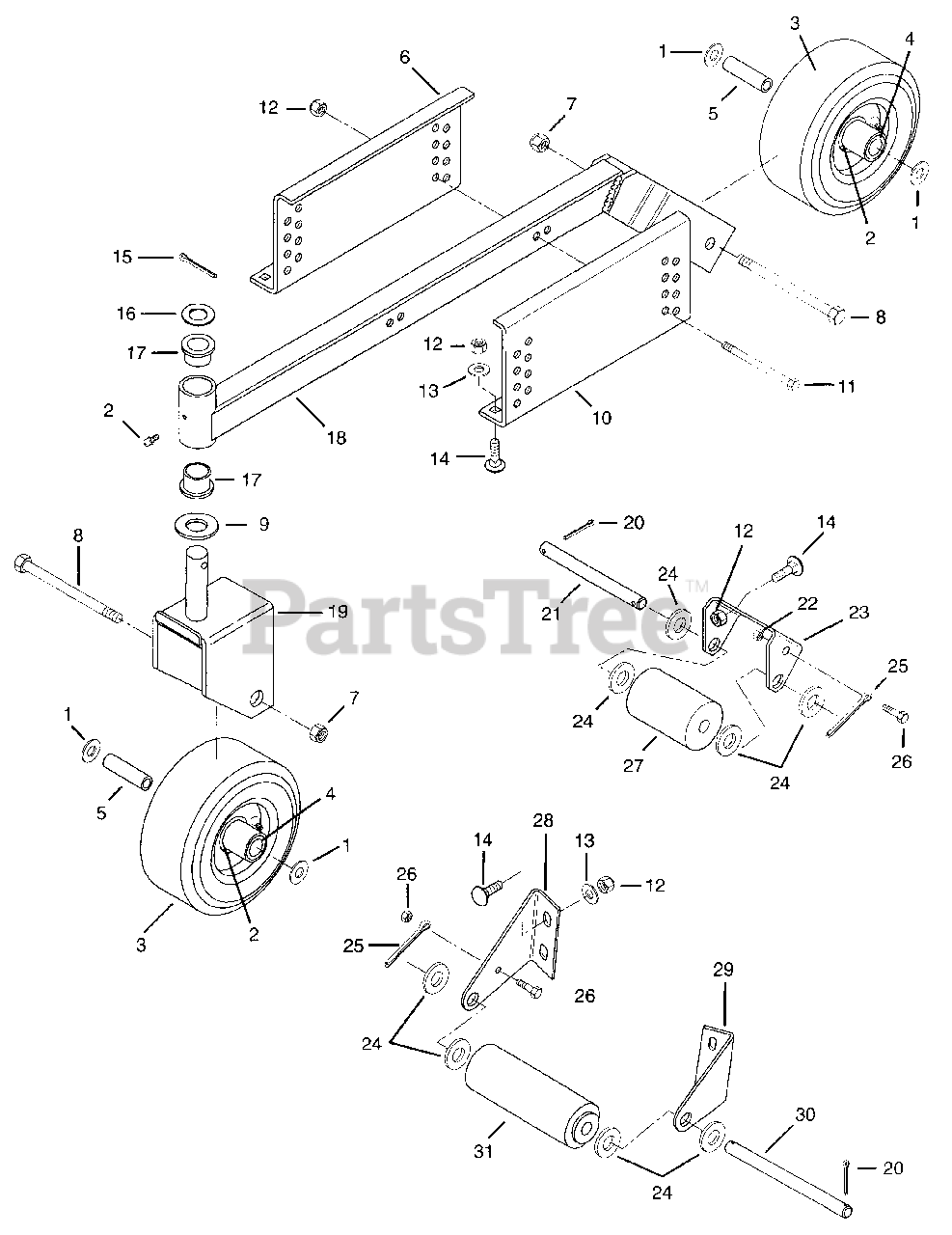

WHEELS, ROLLERS & HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 10

0

2

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

3

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$119.99

$

Usually ships in 4-12 days

0

4

Gravely 036778

BRG-BALL .752X1.50X.50
(Superseded to 05408900)

$20.99

$

In Stock, only 3 left!

0

5

Gravely 011950

SPACER .532X.748X3.34
(Superseded to 09023500)

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 051869

HANGER,L.H.
(Superseded to 08792000)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 433163

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

10

Gravely 052035

HANGER,R.H.
(Superseded to 08791900)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 137253

PIN-COTR .188X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0

17

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

18

Gravely 051867

WLDMT,CASTER WHL SUPPORT
(Superseded to 08791800)

$79.99

$

Usually ships in 4-12 days

0

19

Gravely 09066400

WM'T, CASTER FORK

$197.99

$

Usually ships in 4-12 days

0

20

Gravely 179128

PIN-CTR .25X1.00 YWZC
(Superseded to 06713000)

$1.99

$

In Stock, only 4 left!

0

21

Gravely 045211

ROD
(Superseded to 08966900)

$58.99

$

Usually ships in 4-12 days

0

22

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

23

Gravely 045210

BRKT., ROLLER (RED)
(Superseded to 08966853)

$

$

Not available

24

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 103422

PIN-CTR .25X2.00 YWZC
(Superseded to 06713100)

$4.99

$

In Stock, only 2 left!

0

26

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 015351

RLR,GAGE
(Superseded to 07520100)

$27.99

$

Usually ships in 4-12 days

0

28

Gravely 045567

BRKT,ROLLER R.H.
(Superseded to 08970000)

$35.99

$

Usually ships in 4-12 days

0

29

Gravely 045568

BRKT,ROLLER L.H.
(Superseded to 08970153)

$52.99

$

Usually ships in 4-12 days

0

30

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$61.99

$

Usually ships in 4-12 days

0

31

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$38.99

$

In Stock, only 3 left!

0
