887017 - Gravely Mower Lift for 4-Wheel Tractor (SN: 000101 & Above) MOWER DECK ASSEMBLY 50" Parts Diagram

Mower Lift for 4-Wheel Tractor

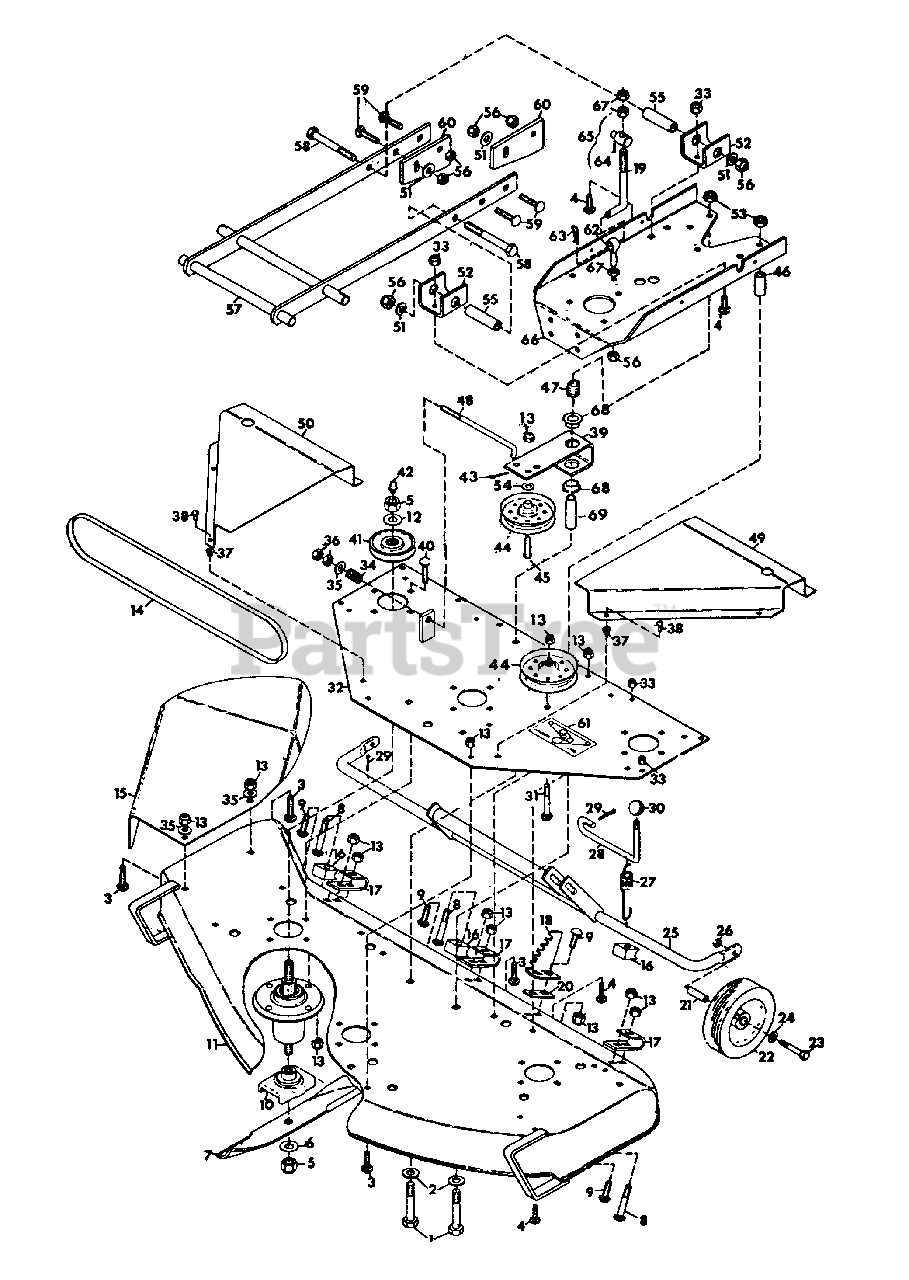

MOWER DECK ASSEMBLY 50" Parts Diagram

  • Title

1

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

2

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 126227

BOLT, 3/8-16X.75 RD. HD. SQ. NK.
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 126216

BOLT, 5/16-18X.75 RD. HD. SQ. NK.

$

$

Not available

5

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

6

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 011234

BLADE
(Superseded to 08861600)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 126419

BOLT, 3/8-16X2 RD. HD. SQ. NK.
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

9

Gravely 120915

BOLT, 3/8-16X1 RD. HD. SQ. NK.

$

$

Not available

10

Gravely 023026

CRADLE, BLADE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

11

Gravely 020055

WELDMENT, 50 INCH DECK
(Superseded to 58810100)

$517.99

$

Usually ships in 4-12 days

0

12

Gravely 033845

WASHER, FLAT .687X1.300X.122/.146
(Superseded to 06427400)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

14

Gravely 011216

BELT, V .500X.312X126.3
(Superseded to 07219600)

$79.99

$

In Stock, Qty 10

0

15

Gravely 019985

SHIELD, SAFETY EXTENSION

$

$

Not available

16

Gravely 011260

STOP, NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

17

Gravely 011264

BRACKET, AXLE SUPPORT
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

18

Gravely 011265

BRACKET, HEIGHT ADJUST
(Superseded to 08598000)

$41.99

$

In Stock, only 1 left!

0

19

Gravely 019201

ROD, LIFT
(Superseded to 08599900)

$67.99

$

Usually ships in 4-12 days

0

20

Gravely 021462

SHIM, MOWER HT. ADJ. BKT.
(Superseded to 08517400)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 034425

BUSHING, .750X.375X1.785
(Superseded to 20602600)

$64.99

$

In Stock, only 2 left!

0

22

Gravely 034426

WHEEL, GAUGE
(Superseded to 07128800)

$102.99

$

In Stock, only 3 left!

0

23

Gravely 180134

BOLT, HEX 3/8-16X2.5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 446477

WASHER, FLAT .436X1.375X.083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

25

Gravely 011243

WELDMENT, AXLE PIVOT
(Superseded to 21339400)

$

$

Not available

26

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

27

Gravely 021471

SPRING, 40 AND 50 INCH MOWER
(Superseded to 08329500)

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 010993

LEVER, HEIGHT ADJUST
(Superseded to 20062200)

$103.99

$

Usually ships in 4-12 days

0

29

Gravely 120123

PIN, COTTER .125X1.250
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

30

Gravely 011261

KNOB, ADJUSTMENT CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 126416

BOLT, 3/8-16X1.75 RD. HD. SQ. NK.
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 021118

WELDMENT, DECK SUPPORT PLATE
(Superseded to 21252200)

$225.99

$

Usually ships in 4-12 days

0

33

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 011779

SPRING, COMP. TYPE 1X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

35

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

37

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 11

0

38

Gravely 160515

SCREW, MACH. 1/4-20X.5
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

40

Gravely 126402

BOLT, 3/8-16X1.25 RD. HD. SQ. NK.
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 020065

SHEAVE, SPINDLE
(Superseded to 08896000)

$89.99

$

In Stock, only 3 left!

0

42

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

43

Gravely 121224

PIN, COTTER 3/32X1.000

$0.99

$

Usually ships in 4-12 days

0

44

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

45

Gravely 180130

BOLT, HEX 3/8-16X2
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

46

Gravely 019348

SPACER, .510X.840X2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

47

Gravely 020444

SPRING, COMP.
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

48

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

49

Gravely 021259

COVER, PULLEY L.H.
(Superseded to 08933400)

$

$

Not available

50

Gravely 021260

COVER, PULLEY R.H.
(Superseded to 08933500)

$

$

Not available

51

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

52

Gravely 022415

SUPPORT, MOWER PIVOT
(Superseded to 08522800)

$34.99

$

Usually ships in 4-12 days

0

53

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

54

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

55

Gravely 022414

BUSHING, PIVOT .510X.750X2.020
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

56

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

57

Gravely 022418

WELDMENT, PIVOT ARM
(Superseded to 21156400)

$283.99

$

Usually ships in 4-12 days

0

58

Gravely 180190

BOLT, HEX 1/2-13X3.00
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

59

Gravely 126485

BOLT, 1/2-13X1.25 RD. HD. SQ. NK.
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

60

Gravely 021222

PLATE, ADJUSTMENT
(Superseded to 21136800)

$37.99

$

Usually ships in 4-12 days

0

61

Gravely 011715

DECAL, BELT INSTALLATION
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

62

Gravely 019350

BOLT, EYE
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

63

Gravely 015691

COTTER, HAIR PIN
(Superseded to 06714900)

$0.99

$

In Stock, Qty 18

0

64

Gravely 142485

PIN, GROOVE .125X.625
(Superseded to 06706000)

$

$

Not available

65

Gravely 011317

ASSEMBLY, MOWER LIFT PIVOT
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

66

Gravely 022417

SUPPORT, GEAR HOUSING
(Superseded to 08561300)

$203.99

$

Usually ships in 4-12 days

0

67

Gravely 120238

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 15

0

68

Gravely 010174

BUSHING, NYLON .760X1.00X.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

69

Gravely 034119

SPACER
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0
