887020 - Gravely 40" Deck, 3-Spindle for Tractor (SN: 000101 & Above) MOWER DECK ASSEMBLY 40" Parts Diagram

40" Deck, 3-Spindle for Tractor

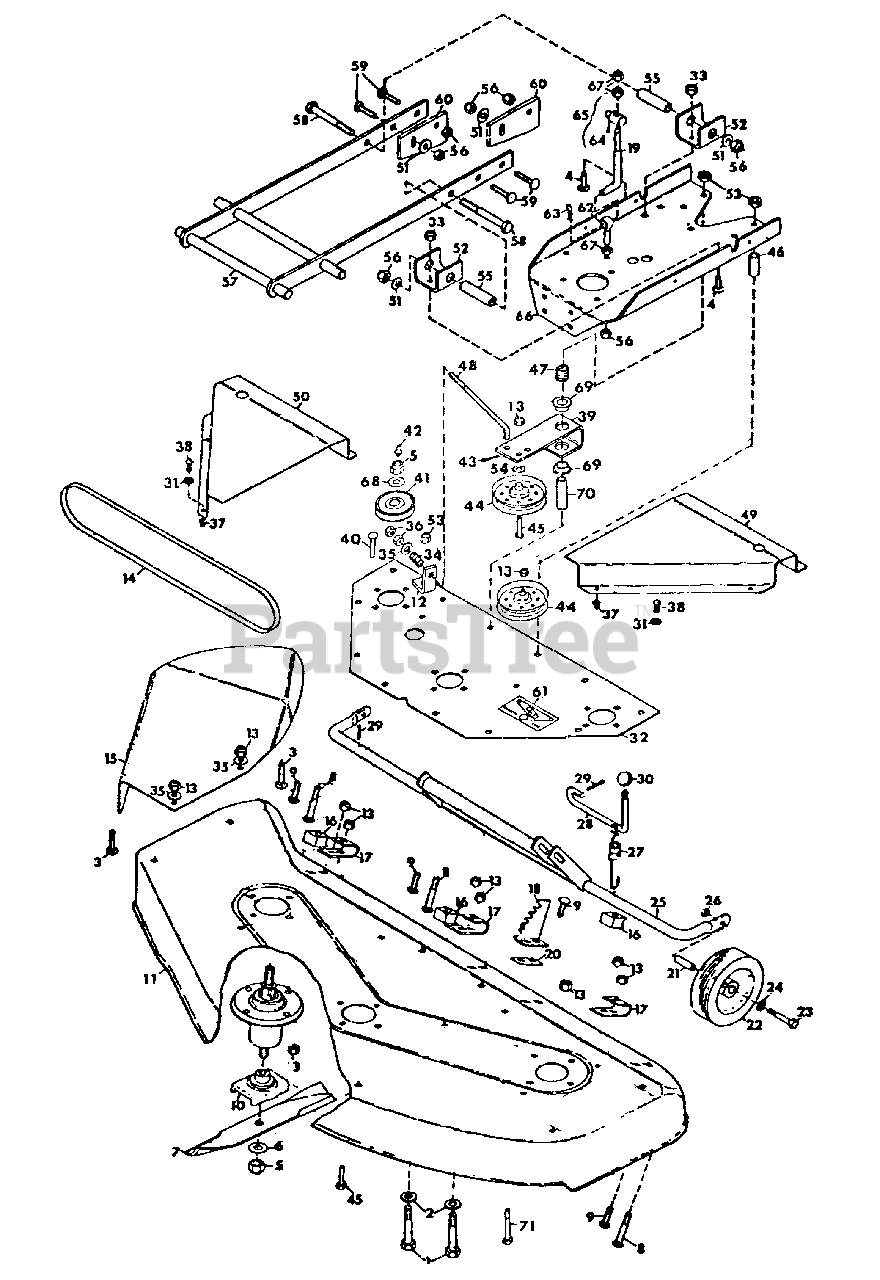

MOWER DECK ASSEMBLY 40" Parts Diagram

  • Title

1

Gravely 180193

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0

2

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 126227

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

4

Gravely 180078

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 014668

MOWER BLADE, 13.94"
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

8

Gravely 126419

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

9

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 023026

WELM'D, BLADE CRADLE
(Superseded to 08798300)

$158.99

$

Usually ships in 4-12 days

0

11

Gravely 034438

WLDMT,40" DECK
(Superseded to 20602800)

$

$

Not available

12

Gravely 034431

SPRT,SPRING
(Superseded to 08537000)

$

$

Not available

13

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 034429

V-BELT, HA-WRAPPED
(Superseded to 07226700)

$70.99

$

In Stock, Qty 20+

0

15

Gravely 019986

SHIELD,SFTY EXT 40"MWR
(Superseded to 21129200)

$

$

Not available

16

Gravely 011260

STOP,NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

17

Gravely 011264

BRKT,AXLE SUPPORT
(Superseded to 03349000)

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 011265

BRACKET, HEIGHT ADJUST.
(Superseded to 08598000)

$42.99

$

In Stock, only 1 left!

0

19

Gravely 019201

ROD,LIFT
(Superseded to 08599900)

$69.99

$

Usually ships in 4-12 days

0

20

Gravely 021462

SHIM,MOWER HT. ADJ. BKT.
(Superseded to 08517400)

$

$

Not available

21

Gravely 034425

BUSH.,S.380X.750X1.79 ST
(Superseded to 20602600)

$65.99

$

Usually ships in 4-12 days

0

22

Gravely 034426

T/WHL ASSY 6 X 2
(Superseded to 07128800)

$104.99

$

In Stock, only 2 left!

0

23

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 446477

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 014661

WLDMT,AXLE PIVOT
(Superseded to 21098700)

$

$

Not available

26

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 021471

SG-TENS .095X.85X4.38 WLD25
(Superseded to 08329500)

$

$

Not available

28

Gravely 010993

LVR,HEIGHT ADJUST.
(Superseded to 20062200)

$105.99

$

Usually ships in 4-12 days

0

29

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 18

0

30

Gravely 011261

KNOB,ADJ. CONTROL
(Superseded to 20069800)

$23.99

$

Usually ships in 4-12 days

0

31

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 034195

PLT,SUPPORT
(Superseded to 08542100)

$179.99

$

Usually ships in 4-12 days

0

33

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

35

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

37

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 160536

SCR-MCH .25-20X.625 RDHD
(Superseded to 06113400)

$

$

Not available

39

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

In Stock, only 1 left!

0

40

Gravely 126402

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

41

Gravely 034428

SHEAVE,SPINDLE
(Superseded to 08536900)

$140.99

$

In Stock, only 1 left!

0

42

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

43

Gravely 121224

PIN-CTR .09X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 11

0

44

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 10

0

45

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

46

Gravely 019348

SPACER .510X.840X2.437 ST
(Superseded to 08510400)

$34.99

$

Usually ships in 4-12 days

0

47

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

48

Gravely 034430

ROD,IDLER 40 IN. MOWER
(Superseded to 03351200)

$

$

Not available

49

Gravely 021257

CVR,BELT L.H.
(Superseded to 08542300)

$52.99

$

Usually ships in 4-12 days

0

50

Gravely 021258

CVR,BELT R.H.
(Superseded to 08542200)

$

$

Not available

51

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 9

0

52

Gravely 022415

SPRT,MOWER PIVOT
(Superseded to 08522800)

$35.99

$

Usually ships in 4-12 days

0

53

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

54

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

55

Gravely 022414

SPACER .510X.750X2.02 ST
(Superseded to 08522700)

$22.99

$

In Stock, Qty 9

0

56

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

57

Gravely 022418

WLDMT,PIVOT ARM
(Superseded to 21156400)

$289.99

$

Usually ships in 4-12 days

0

58

Gravely 180190

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

59

Gravely 126485

BLT-RDHDSQNK .50-13X1.25 G5YZ
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 021222

PLT,ADJUSTMENT
(Superseded to 21136800)

$38.99

$

Usually ships in 4-12 days

0

61

Gravely 011715

DECAL,BELT INSTALLATION
(Superseded to 05216600)

$

$

Not available

62

Gravely 019350

BLT-EYE .56X2.12
(Superseded to 07015300)

$33.99

$

Usually ships in 4-12 days

0

63

Gravely 015691

PIN, HAIR, EXT - #16 YWZC
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

64

Gravely 142485

PIN-GROOVE .125X.625
(Superseded to 06706000)

$

$

Not available

65

Gravely 011317

PIVOT,MOWER LIFT
(Superseded to 08811600)

$52.99

$

In Stock, only 2 left!

0

66

Gravely 022417

SUPPORT, GEAR HOUSING
(Superseded to 08561300)

$

$

Not available

67

Gravely 120238

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

68

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

69

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

70

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

71

Gravely 180177

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0
