887034 - Gravely Grass Bagger for Pro Series Mower (SN: 000101 & Above)

Grass Bagger for Pro Series Mower

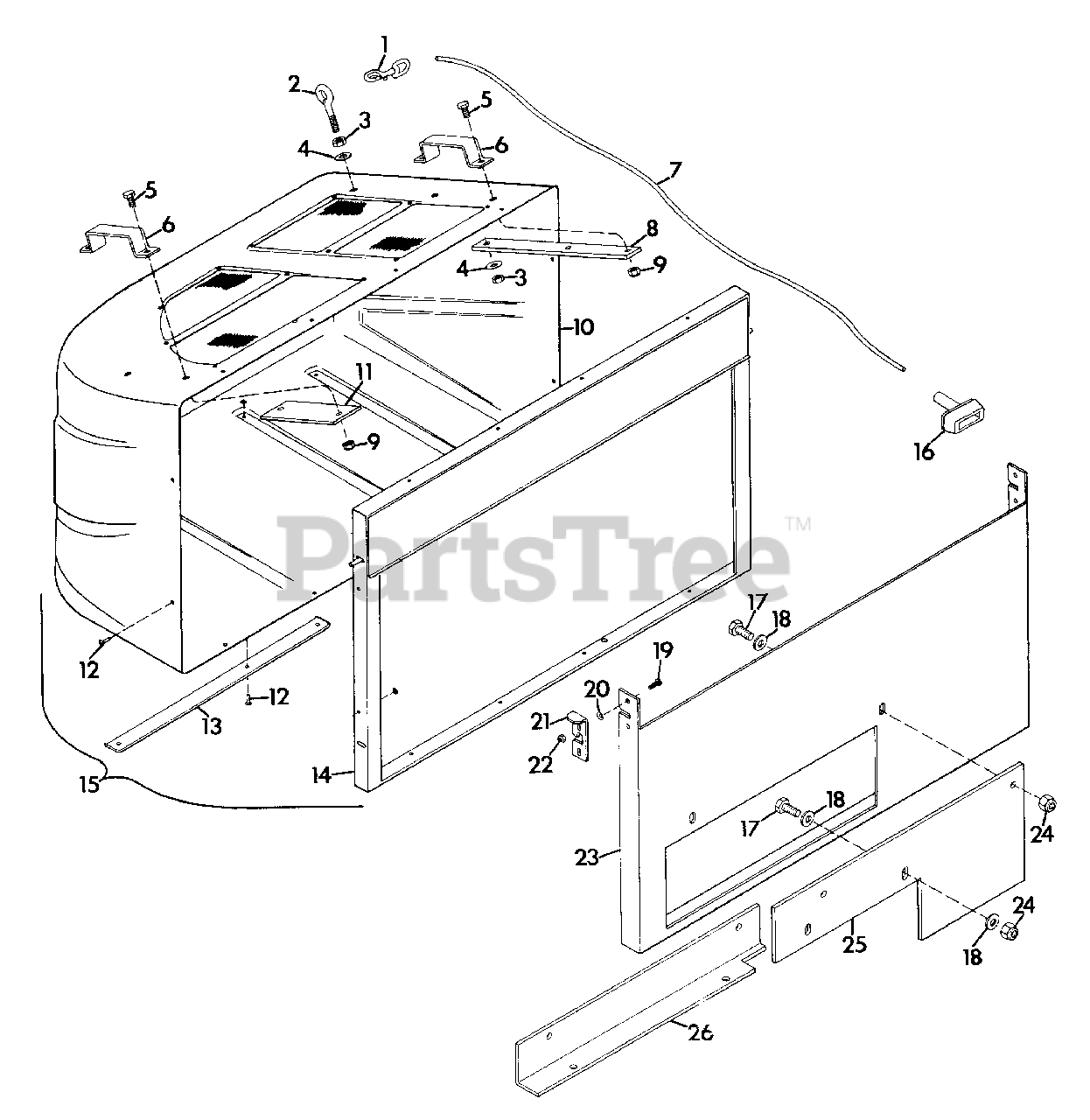

887034 - Gravely Grass Bagger for Pro Series Mower (SN: 000101 & Above) > Parts Diagrams (1) > PRO MOWER GRASS CATCHER

  • Title
035095

1

SNAP, SWIVEL

Part# 035095

OEM Warranty Repair Part for Gravely

Not available

035094

2

BOLT, EYE

Part# 035094 (Superseded to 07014800)

OEM Warranty Repair Part for Gravely

Not available

120376

3

NUT, HEX 5/16-18

Part# 120376 (Superseded to 06529200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

120386

4

WASHER, FLAT .312X.734X.065

Part# 120386 (Superseded to 06435800)

OEM Warranty Repair Part for Gravely

Not available

180022

5

BOLT, HEX 1/4-20X1.00

Part# 180022 (Superseded to 05947700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

040517

6

HANDLE, HOPPER

Part# 040517 (Superseded to 20670600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

019212

7

ROPE, #6X66" LONG

Part# 019212 (Superseded to 07520400)

OEM Warranty Repair Part for Gravely

Not available

040500

8

STRAP

Part# 040500 (Superseded to 20670400)

OEM Warranty Repair Part for Gravely

Not available

419454

9

NUT, LOCK 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

040808

10

HOPPER W/SCREENS, CAUTION DECAL

Part# 040808

OEM Warranty Repair Part for Gravely

Not available

040518

11

PLATE, BRACE

Part# 040518 (Superseded to 20670700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

040524

12

RIVET, POP .125X.357

Part# 040524

OEM Warranty Repair Part for Gravely

Not available

040519

13

PLATE, SKID

Part# 040519 (Superseded to 20670800)

OEM Warranty Repair Part for Gravely

Not available

040520

14

FRAME, HOPPER

Part# 040520 (Superseded to 20670900)

OEM Warranty Repair Part for Gravely

Not available

040809

15

HOPPER/FRAME, COMPLETE

Part# 040809 (Superseded to 20679500)

OEM Warranty Repair Part for Gravely

Not available

022276

16

HANDLE

Part# 022276 (Superseded to 07521300)

OEM Warranty Repair Part for Gravely

Not available

180122

17

BOLT, HEX 3/8-16X1.00

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120394

18

WASHER, FLAT .406X.812X.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

436733

19

SCREW

Part# 436733 (Superseded to 21070200)

OEM Warranty Repair Part for Gravely

Not available

040523

20

1/4" SPRING WASHER

Part# 040523 (Superseded to 20671200)

OEM Warranty Repair Part for Gravely

Not available

040522

21

LATCH, CATCHER LEFT

Part# 040522 (Superseded to 20671100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

040521

NS

LATCH, CATCHER RIGHT

Part# 040521 (Superseded to 20671000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

190254

22

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

040499

23

SUPPORT, GRASS CATCHER

Part# 040499 (Superseded to 20670300)

OEM Warranty Repair Part for Gravely

Not available

456004

24

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

040502

25

ADAPTOR, PRO 40

Part# 040502 (Superseded to 21254300)

OEM Warranty Repair Part for Gravely

Not available

040503

26

ADAPTOR, PRO 36

Part# 040503 (Superseded to 08864600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20
