887040 - Gravely Grass Bagger Blower (SN: 000101 & Above) BLOWER FRAME Parts Diagram

Grass Bagger Blower

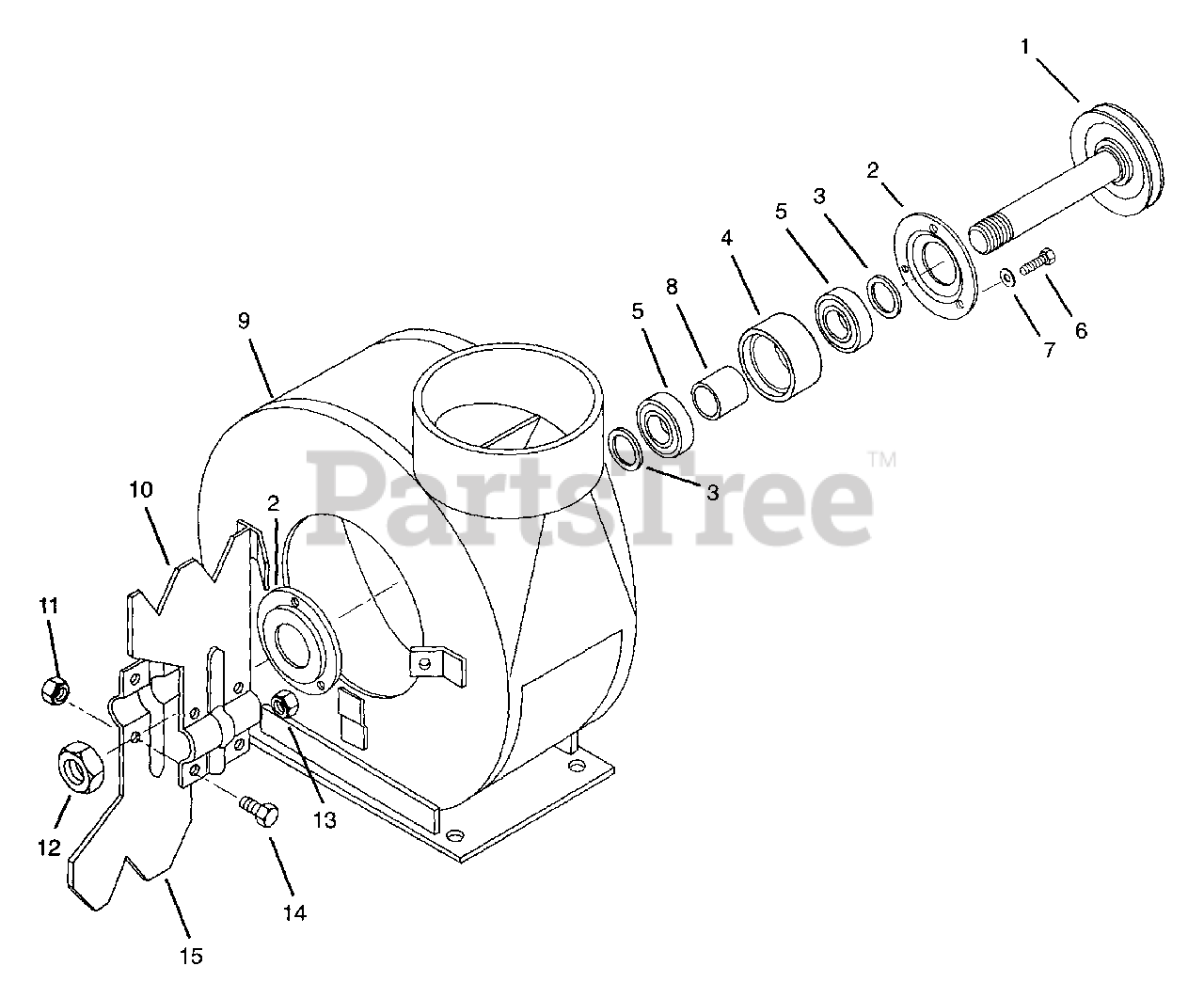

BLOWER FRAME Parts Diagram

  • Title

1

Gravely 039027

Weldment, Spindle
(Superseded to 03422100)

$356.99

$

Usually ships in 4-12 days

0

2

Gravely 036874

Bearing, Flange
(Superseded to 03185900)

$23.99

$

In Stock, only 4 left!

0

3

Gravely 039022

Washer-Flat-Steel 1.015 x 1.500 x .125
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 03421800

Housing

$206.99

$

In Stock, only 1 left!

0

5

Gravely 05416000

Bearing, Ball 1.00 x 2.00
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

6

Gravely 180044

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06412700

Washer-Flat .263 x .562 x .040
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

8

Gravely 03421900

Spacer

$43.99

$

Usually ships in 4-12 days

0

9

Gravely 03336900

Housing, Blower
(Superseded to 58700400)

$

$

Not available

10

Gravely 039020

Fan Blade
(Superseded to 03021500)

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 06529800

Nut-Locking .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 039019

Nut-Locking-Jam 1.00-14
(Superseded to 06512000)

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 06504000

Nut-Locking-Center .25-20
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05952200

Bolt-Hex .31-18 x .625 Grade 5
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 039018

Fan Blade
(Superseded to 03422000)

$46.99

$

Usually ships in 4-12 days

0
