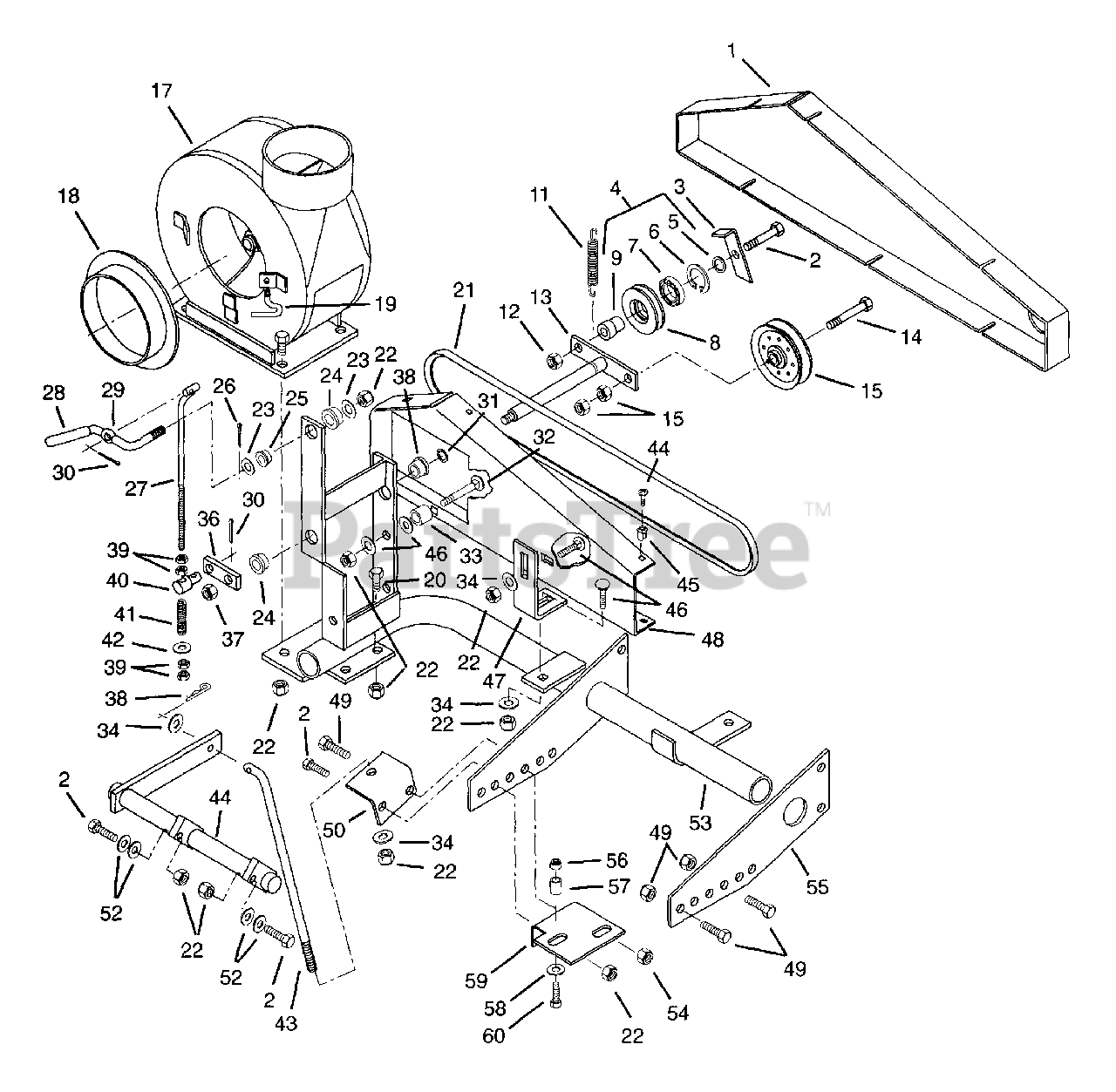

887040 - Gravely Grass Bagger Blower (SN: 000101 & Above) GRASS CATCHER Parts Diagram

Grass Bagger Blower

GRASS CATCHER Parts Diagram

  • Title

1

Gravely 041719

Cover, Belt
(Superseded to 08757500)

$

$

Not available

2

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 042444

Guide, Belt
(Superseded to 08759100)

$

$

Not available

4

Gravely 041714

Assembly, Idler Sheave
(Superseded to 08757100)

Note: (Includes items 5-9)

$

$

Not available

5

Gravely 039331

Ring, Retaining
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

8

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

9

Gravely 041715

Bushing, .515 x 1.00 x 1.21
(Superseded to 08757200)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 011329

Clip, Spring
(Superseded to 08657900)

$

$

Not available

11

Gravely 019681

Spring-Tension .063 x .62 x 2.50

$

$

Not available

12

Gravely 06536300

Nut-Hex-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 041704

Weldment, Clutch Shaft
(Superseded to 08756600)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 021060

Sheave, Idler 4.00 x .38
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

16

Gravely 06503900

Nut-Locking-Center .375-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

17

58788400

G-Blower Assembly

$

$

Not available

18

Gravely 03053700

Adapter, Hose

$11.99

$

Usually ships in 4-12 days

0

19

Gravely 042543

Clamp Screw
(Superseded to 03444800)

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 036987

Belt
(Superseded to 20635100)

$

$

Not available

22

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06428900

Washer-Flat-Steel .531 x 1.250 x .10
(Superseded to 06401202)

$2.99

$

In Stock, Qty 15

0

24

Gravely 010174

Bushing-Flange .762 x 1.00 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

26

Gravely 421202

Pin-Roll .187 x 1.00
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 041713

Rod, Control Actuating
(Superseded to 08655700)

$

$

Not available

28

Gravely 042569

Grip
(Superseded to 07527900)

$

$

Not available

29

Gravely 042445

Lever, Control
(Superseded to 08806000)

$

$

Not available

30

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

31

Gravely 026300

Ring-Retaining-External .689 x ,078
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

32

Gravely 06221500

Bolt, Round Head Square Neck .50-13 x 3.00
(Superseded to 06224900)

$5.99

$

In Stock, Qty 11

0

33

Gravely 041722

Bushing .750 x 1.00 x 1.10
(Superseded to 08826600)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 037842

Washer-Flat-Steel .56 x 1.38 x .109
(Superseded to 06427800)

$

$

Not available

35

Gravely 041696

Weldment, Control Support
(Superseded to 08756000)

$

$

Not available

36

Gravely 041708

Arm, Control
(Superseded to 08756900)

$9.49

$

Usually ships in 4-12 days

0

37

Gravely 06538800

Nut-Locking-Nylon .38-24 with Insert

$1.99

$

In Stock, only 4 left!

0

38

Gravely 06702000

Pin-Cotter .05 x 1.157
(Superseded to 06713500)

$0.99

$

In Stock, Qty 17

0

39

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

40

Gravely 041712

Pivot
(Superseded to 08757000)

$

$

Not available

41

Gravely 041327

Spring-Compression .063 x .480 x 1.50
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

42

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

43

Gravely 042300

Rod, Blower Frame Support
(Superseded to 08655800)

$95.99

$

Usually ships in 4-12 days

0

44

Gravely 160515

Screw, Machine .25-20 x .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

45

Gravely 01777

Grommet, Plastic

$

$

Not available

46

Gravely 06201400

Bolt-Round Head Square Neck .50-13 x 1.25
(Superseded to 06224700)

$5.99

$

In Stock, only 1 left!

0

47

Gravely 041717

Bracket, Guard Support
(Superseded to 08757300)

$5.99

$

Usually ships in 4-12 days

0

48

Gravely 041718

Guide, Channel
(Superseded to 08757400)

$45.99

$

Usually ships in 4-12 days

0

49

Gravely 05968100

Bolt-Hex .62-11 x 2.00

$3.49

$

Usually ships in 4-12 days

0

50

Gravely 08762100

Bracket, Vacuum Support

$5.99

$

Usually ships in 4-12 days

0

51

Gravely 040653

Weldment, Vacuum Support
(Superseded to 08750900)

$

$

Not available

52

Gravely 417098

Washer-Flat-Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

53

Gravely 04902300

Weldment, Blower Support Frame

$250.99

$

Usually ships in 4-12 days

0

54

Gravely 06540700

Nut-Locking-Nylon .62-11

$3.99

$

In Stock, Qty 14

0

55

Gravely 04902453

Plate, Frame Mounting

$25.99

$

Usually ships in 4-12 days

0

56

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

57

Gravely 011936

Bushing .407 x .625 x .813
(Superseded to 08905500)

$13.99

$

In Stock, only 1 left!

0

58

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

59

Gravely 043872

Bracket, Rear Centering
(Superseded to 08761500)

$

$

Not available

60

Gravely 05963300

Bolt-Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0
