888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 010000 & Above) Mower Drive Parts Diagram

36" Deck for Pro-Walk Mower

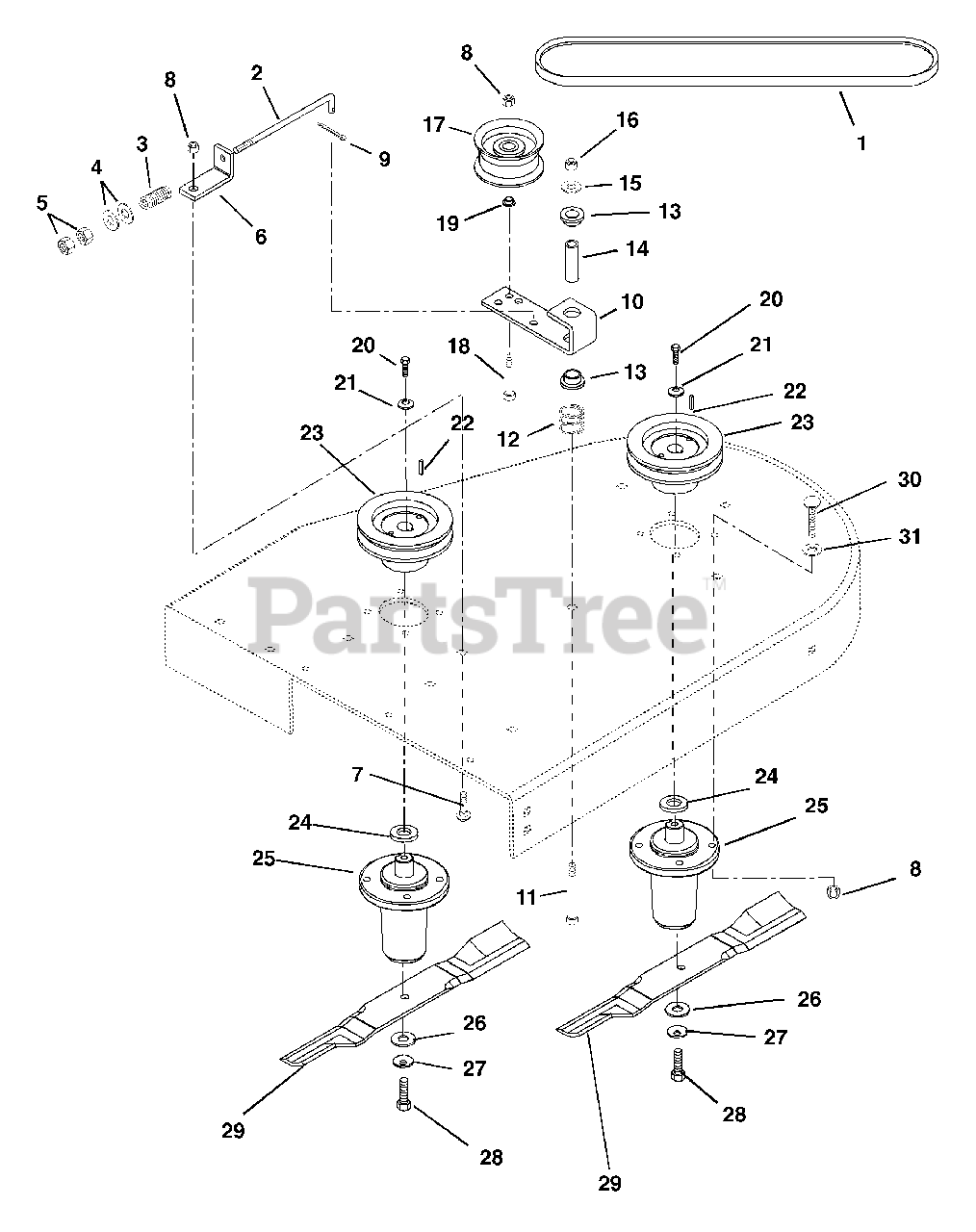

Mower Drive Parts Diagram

  • Title

1

Gravely 07227700

OBSOLETE
(Superseded to 07238200)

$64.99

$

In Stock, Qty 6

0

Gravely 07231900

V-BELT, 4L-WRAPPED

$

$

Not available

2

Gravely 046264

ROD,IDLER
(Superseded to 08656800)

$65.99

$

Usually ships in 4-12 days

0

3

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

4

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

6

Gravely 034287

BRKT,BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

10

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

11

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

13

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

14

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

15

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

16

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

18

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 15

0

20

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

23

Gravely 04904300

WLDM'T,PLY-V 4.75X1.004

$101.99

$

Usually ships in 4-12 days

0

24

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

25

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$273.99

$

In Stock, Qty 8

0

26

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

28

Gravely 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$48.99

$

In Stock, only 3 left!

0

29

Gravely 08899400

BLADE, MOWER TUNGSTEN CARBIDE
(Superseded to 08816600)

$20.99

$

Usually ships in 4-12 days

0

30

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0
