888005 - Gravely 40" Deck for Pro-Walk Mower (SN: 000101 & Above)

40" Deck for Pro-Walk Mower

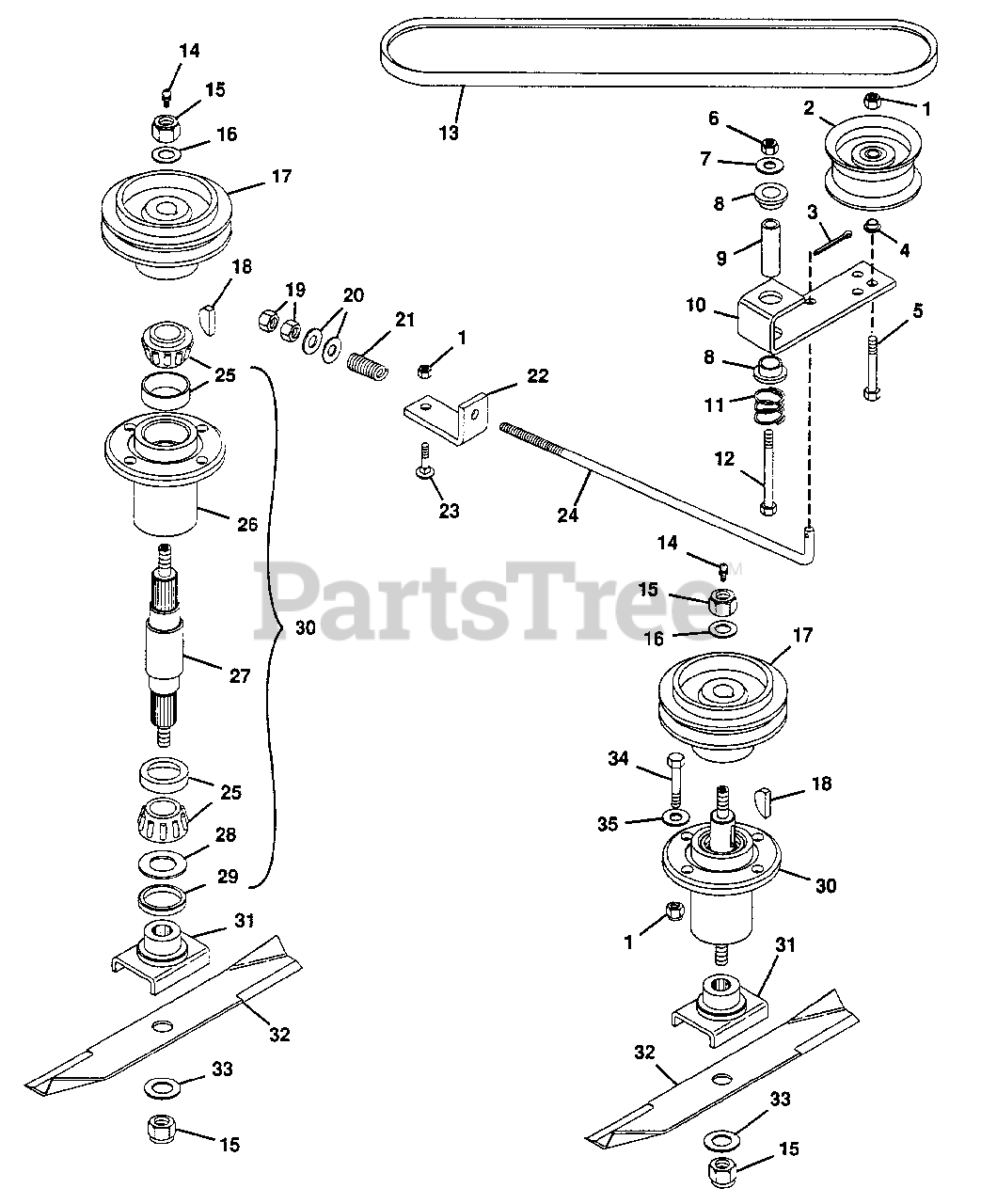

888005 - Gravely 40" Deck for Pro-Walk Mower (SN: 000101 & Above) > Parts Diagrams (3) > MOWER DRIVE

  • Title
456004

1

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

034286

2

Pulley, Idler

Part# 034286 (Superseded to 07327800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

121222

3

Pin, Cotter .09x.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

024815

4

Bushing, Flange Bronze

Part# 024815 (Superseded to 05515800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

180132

5

Bolt, Hex 3/8-16x2.25

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

414074

6

Nut, Lock 1/2-13

Part# 414074 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

415543

7

Washer, Flat .531x1.250x.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

010174

8

Bushing, Flange Nylon

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

034119

9

Bushing, St. .560x.750x2.44 Stl.

Part# 034119 (Superseded to 08820500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.70

034120

10

Arm, Idler Pivot

Part# 034120 (Superseded to 08905900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

020444

11

Spring, Comp. 1x.80x36 Lb/N

Part# 020444 (Superseded to 08329100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

180191

12

Bolt, Hex 1/2-13x3.25

Part# 180191 (Superseded to 05960000)

OEM Warranty Repair Part for Gravely

Not available

043318

13

Belt, Pro-40 Mower

Part# 043318 (Superseded to 07221300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

411010

14

Fitting, Lube 1/8

Part# 411010 (Superseded to 07012500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

418692

15

Nut, Lock 5/8-11

Part# 418692 (Superseded to 06540700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

033845

16

Washer, Flat .687x1.312x.122

Part# 033845 (Superseded to 06427400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

043837

17

Sheave

Part# 043837 (Superseded to 08946700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $147.52

124553

18

Key, Woodruff 1/4x1 Hard #15

Part# 124553 (Superseded to 06608900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

120369

19

Nut, Hex 3/8-24

Part# 120369 (Superseded to 06522900)

OEM Warranty Repair Part for Gravely

Not available

120394

20

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011779

21

Spring, Comp. 1x.78x338 Lb/N

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

034287

22

Bracket, Belt Tensioner

Part# 034287 (Superseded to 08802700)

OEM Warranty Repair Part for Gravely

Not available

120915

23

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

021111

24

Rod, Idler

Part# 021111 (Superseded to 08598300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.65

038199

25

Assembly, Bearing

Part# 038199 (Superseded to 21245800)

OEM Warranty Repair Part for Gravely

Not available

021215

26

Housing, Bearing

Part# 021215 (Superseded to 08722700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

034603

27

Shaft, Spindle

Part# 034603 (Superseded to 58802900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $110.63

020743

28

Washer, Flat .975x1.970x.030

Part# 020743 (Superseded to 06426900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

021211

29

Seal, Steel

Part# 021211 (Superseded to 08722600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

034605

30

Assembly, Spindle

Part# 034605 (Superseded to 58803600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

023026

31

Weldment, Blade Cradle

Part# 023026 (Superseded to 08798300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $89.72

025124

32

Blade

Part# 025124 (Superseded to 08904600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

131016

33

Washer, Flat .656x1.312x.095

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180124

34

Bolt, Hex 3/8-16x1.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120388

35

Washer, Flat .438x1.000x.083

Part# 120388 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
