888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 000101 - 000594) MOWER FRAME 1 Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

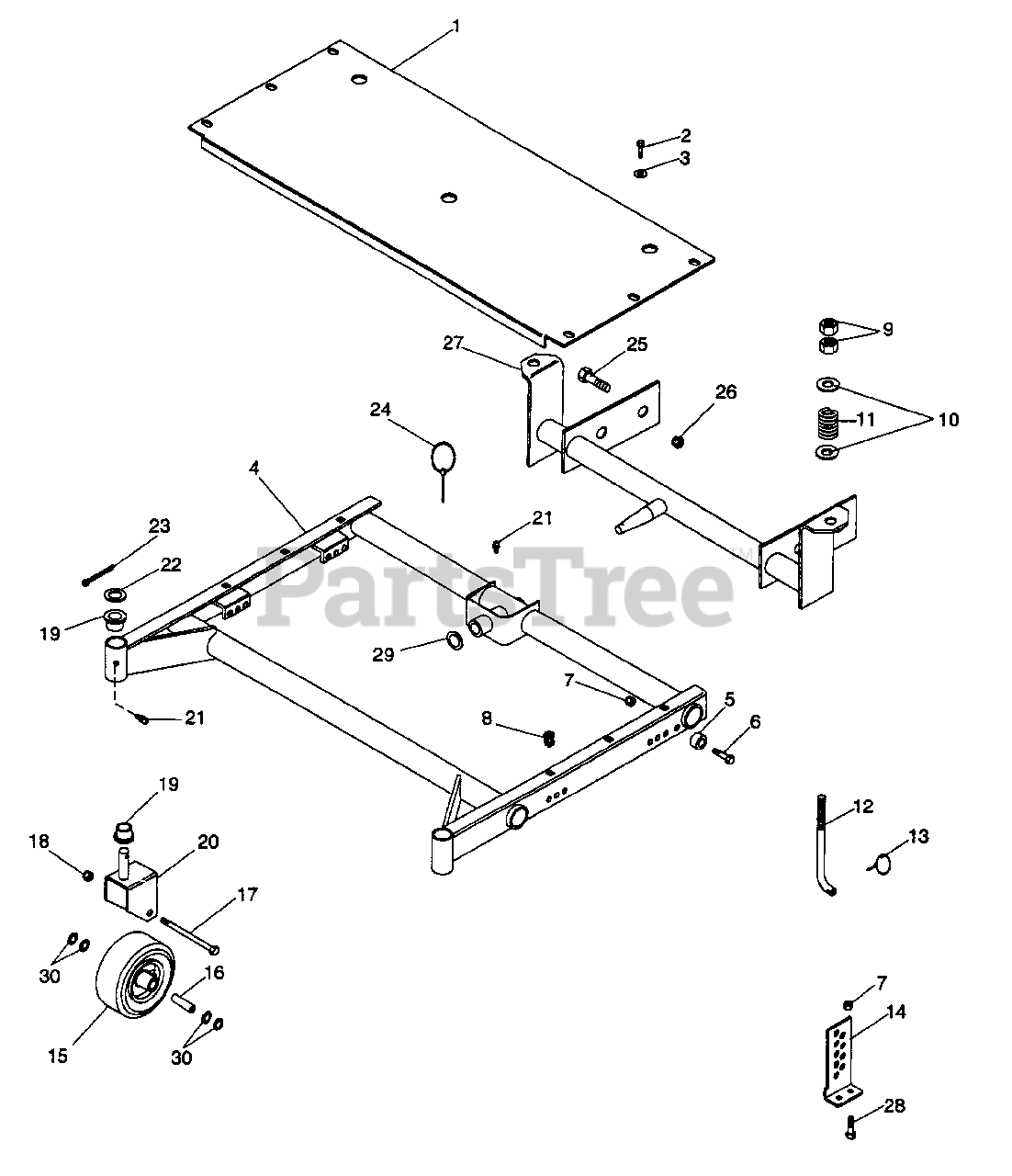

MOWER FRAME 1 Parts Diagram

  • Title

1

Gravely 08869700

GRD, 50 MOWER BELT
(Superseded to 08869800)

$

$

Not available

2

Gravely C045207

SCR - TAP .25-X20 .50HXSLHDPL

$

$

Not available

3

Gravely C120392

WSHR - FL - STL .281 X .625 X .065

$

$

Not available

4

Gravely 08852100

WLDMT, MWR FRM

$205.99

$

Usually ships in 4-12 days

0

5

Gravely C050396

BUSH., 021076 W/E - COAT FINISH

$

$

Not available

6

Gravely C180126

BLT - HEX .38 - 16 X 1.50 PL GR 5

$

$

Not available

7

Gravely C456004

NUT - LK - NYL .375 - 16 PL

$

$

Not available

8

Gravely C011777

GRMT, PLASTIC

$

$

Not available

9

Gravely C120378

NUT, 50 - 13 PL

$

$

Not available

10

Gravely C120396

WSHR - FL - STL .531 X 1.062 X .095

$

$

Not available

11

Gravely C011779

SG - COMP .188 X 1.66 X 2.0

$

$

Not available

12

Gravely C035690

ROD, HEIGHT ADJ.

$

$

Not available

13

Gravely C023468

PIN - KLIK 1.000 X .188 X 1.25

$

$

Not available

14

Gravely 08852800

BRKT, REAR ADJ R.H.

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 08852900

BRKT, REAR ADJ L.H.
(Superseded to 08852953)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely C045205

WHL, GA

$

$

Not available

16

Gravely C011950

BUSH., S.506X.748X3.34 ST

$

$

Not available

17

Gravely C445608

BLT-HEX .50 - 13 X 5.50

$

$

Not available

18

Gravely C435507

NUT - LK - NYL .50 - 13 PL

$

$

Not available

19

Gravely C018355

BSHG - FLG 1.020 X 1.75 X .75 NYL

$

$

Not available

20

Gravely C050973

WLDMT, CASTER FORK

$

$

Not available

21

Gravely C411027

FTG, LUBE; .25 - 28 SELF-THREAD

$

$

Not available

22

Gravely C019340

BRG-R-THRST 1.002 X 1.552 X .030

$

$

Not available

23

Gravely C103409

PIN - COTR .188 X 1.50

$

$

Not available

24

Gravely C011902

PIN - KLIK .25 X 1.75

$

$

Not available

25

Gravely C271547

BLT - HEX .625 - 11 X 1.50

$

$

Not available

26

Gravely C418692

NUT, LK 5/8 - 11 HEX W/INSR

$

$

Not available

27

Gravely 08851700

WLDMT, MWR FRAME MTG

$

$

Not available

28

Gravely C126227

BLT - CARRIAGE .38 - 16 X .75

$

$

Not available

29

Gravely C011223

BRG-N-THRUST; 1.50X2.187X.0781

$

$

Not available

30

Gravely C415543

WSHR-FL-STL .531X1.250X.100

$

$

Not available
