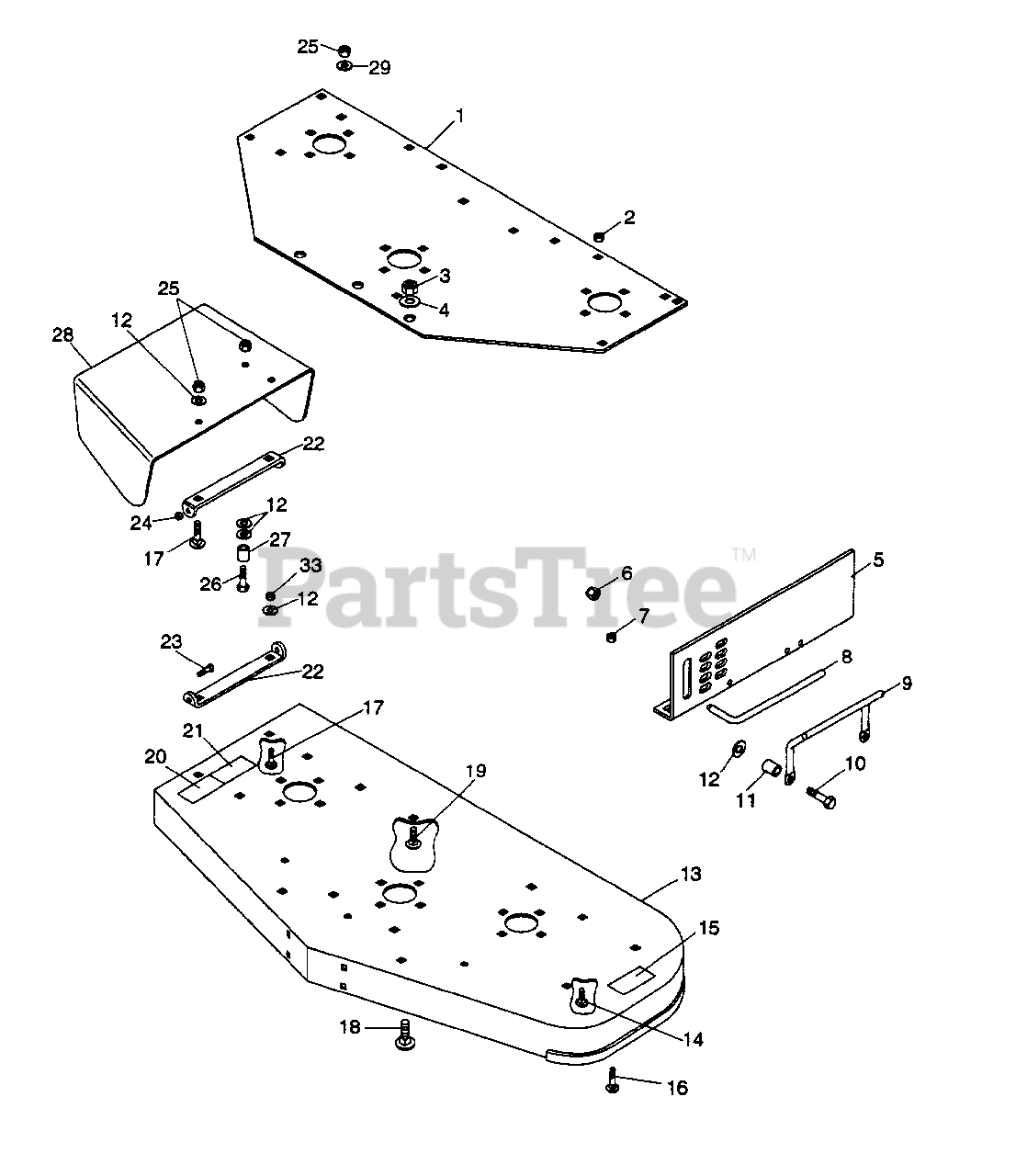

888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 000101 - 000594) MOWER FRAME 2 Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

MOWER FRAME 2 Parts Diagram

  • Title

1

Gravely C052760

PLT, SUPPORT

$

$

Not available

2

Gravely C419455

NUT - LK - NYL .312 - 18 PL

$

$

Not available

3

Gravely C435507

NUT - LK - NYL .50 - 13 PL

$

$

Not available

4

Gravely C415543

WSHR - FL - STL .531 X 1.250 X .100

$

$

Not available

5

Gravely 08852700

BRKT, MWR SIDE SPRT L.H.

$

$

Not available

5

Gravely 08852600

BRKT, MWR SIDE SPRT R.H.

$

$

Not available

6

Gravely C456004

NUT - LK - NYL .375 - 16 PL

$

$

Not available

7

Gravely C419455

NUT - LK - NYL .312 - 18 PL

$

$

Not available

8

Gravely C038514

PIN, MOWER LOCKING

$

$

Not available

9

Gravely C044507

HANDLE

$

$

Not available

10

Gravely C180128

BLT - HEX .38 - 16 X 1.75 PL GR 5

$

$

Not available

11

Gravely C043922

BUSHING

$

$

Not available

12

Gravely C120394

WSHR - FL - STL .406 X .812 X .065 PL

$

$

Not available

13

Gravely C052750

WLDMT, 50" MWR FABRICATED

$

$

Not available

14

Gravely C126211

BLT, 5/16 - 18 X .625 RDHDSQNK

$

$

Not available

15

Gravely 05350100

G-DECAL, DANGER FOOT

$11.99

$

Usually ships in 4-12 days

0

16

Gravely C126358

BLT, CARRIAGE 5/16 - 18 X 1.0

$

$

Not available

17

Gravely C120915

BLT - RDHDSQNK .38 - 16 X 1.0 PL

$

$

Not available

18

Gravely C126475

BLT - RDHDSQNK .50 - 13 X 1.00

$

$

Not available

19

Gravely C126227

BLT, CARRIAGE 3/8 - 16 X .75

$

$

Not available

20

Gravely 05350200

G-DECAL, WARNING EYE

$31.99

$

Usually ships in 4-12 days

0

21

Gravely 05350300

G-DECAL, DANGER HAND

$31.99

$

Usually ships in 4-12 days

0

22

Gravely C017999

BRKT, CHUTE

$

$

Not available

23

Gravely C180021

BLT - HEX .25 - 20 X .875

$

$

Not available

24

Gravely C103422

NUT - LK - NYL .250 - 20 PL

$

$

Not available

25

Gravely C456004

NUT - LK - NYL .375 - 16 PL

$

$

Not available

26

Gravely C180126

BLT - HEX .38 - 16 X 1.50 PL GR 5

$

$

Not available

27

Gravely C038696

BSHG - SLV .407 X .625 X .750 PL

$

$

Not available

28

Gravely C052805

SHIELD, SFTY EXT 50" MWR

$

$

Not available

29

Gravely C120394

WSHR - FL - STL .406 X .812 X .065

$

$

Not available

WIDTH OF CUT DECAL

$

$

Not available

Gravely 05350000

DECAL, WARNING
(Superseded to 07893700)

$17.99

$

Usually ships in 4-12 days

0
