888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 000595 - 010999) MOWER DRIVE Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

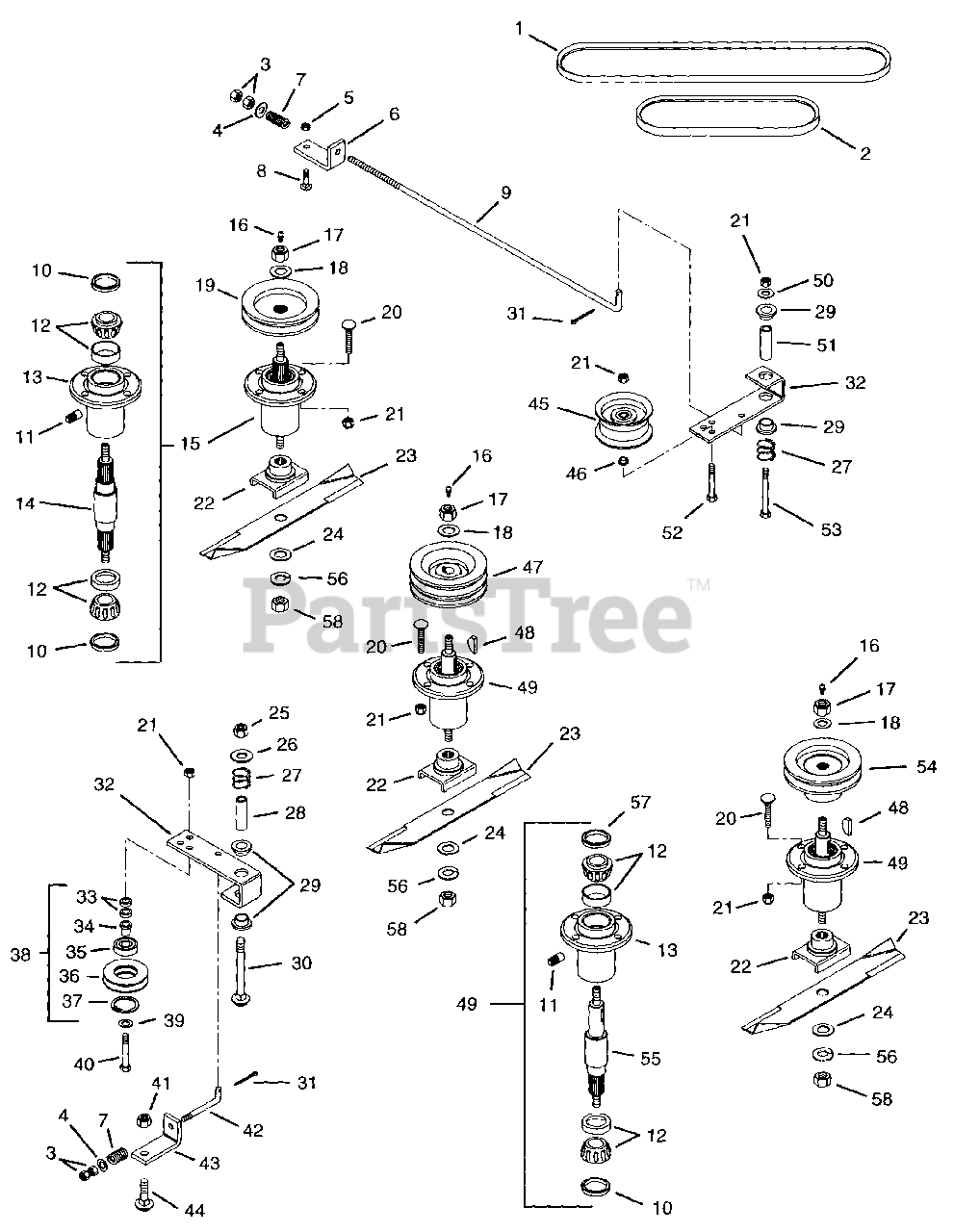

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07223900

V-BELT, HA-RAW EDGE

$

$

Not available

2

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$30.99

$

In Stock, only 1 left!

0

3

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

6

Gravely 034287

BRKT,BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$17.99

$

In Stock, only 3 left!

0

8

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 031913

ROD,IDLER L.H.
(Superseded to 08654100)

$

$

Not available

10

Gravely 05613000

SEAL 1.987X1.375X.313

$18.99

$

In Stock, only 2 left!

0

11

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 038199

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$30.99

$

In Stock, Qty 15

0

13

Gravely 08894500

BEARING HOUSING

$

$

Not available

14

Gravely 021216

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802800)

$91.99

$

In Stock, only 2 left!

0

15

Gravely 58801800

SERVICE KIT SPINDLE ASSEMBLY
(Superseded to 58803600)

Note: (Contains Items 10-14)

$286.99

$

In Stock, Qty 7

0

16

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$5.49

$

In Stock, Qty 11

0

17

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$5.49

$

In Stock, Qty 20+

0

18

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$3.49

$

In Stock, Qty 6

0

19

Gravely 08894900

SHEAVE
(Superseded to 58803500)

$

$

Not available

20

Gravely 126406

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$5.49

$

In Stock, Qty 17

0

21

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 08798700

WELD'M BLADE CRADLE

$133.99

$

Usually ships in 4-12 days

0

23

Gravely 046998

BLD,50 INCH MOWER
(Superseded to 08779200)

Note: Model (015)

$27.99

$

In Stock, only 2 left!

0

Gravely 053064

BLADE, 50" MOWER SAND TUNGSTEN
(Superseded to 09252600)

Note: Model (303)

$

$

Not available

24

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 14

0

26

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, only 4 left!

0

28

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$20.99

$

In Stock, Qty 6

0

29

Gravely 049669

BUSH.,F1.00X1.25X1.40 NY

$

$

Not available

30

Gravely 126803

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06218500)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$88.99

$

In Stock, only 1 left!

0

33

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.99

$

In Stock, only 2 left!

0

34

Gravely 038897

BSHG-FLG .786X1.0X.79
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

35

Gravely 038898

BRG-BALL 1.85X.787X.55
(Superseded to 05425100)

$

$

Not available

36

Gravely 038896

SHEAVE,IDLER
(Superseded to 08744300)

$138.99

$

In Stock, only 1 left!

0

37

Gravely 018960

RG-RTNG-INT 2.054X.062
(Superseded to 05713100)

$4.99

$

Usually ships in 4-12 days

0

38

Gravely 038900

ASM,IDLER SHEAVE
(Superseded to 08930300)

Note: (Contains items 34-37)

$

$

Not available

39

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$3.49

$

In Stock, Qty 10

0

40

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.99

$

In Stock, Qty 20+

0

41

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 038714

ROD,IDLER
(Superseded to 08876000)

$

$

Not available

43

Gravely 038713

BRKT,BELT TENSIONER
(Superseded to 08928800)

$

$

Not available

44

Gravely 120917

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$95.99

$

In Stock, Qty 11

0

46

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$10.99

$

In Stock, Qty 9

0

47

Gravely 08894800

SHEAVE
(Superseded to 08895900)

$

$

Not available

48

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$4.99

$

In Stock, Qty 9

0

49

Gravely 58801700

SERVICE KIT SPINDLE ASSEMBLY
(Superseded to 58803600)

Note: (Contains Items 10-13,55,57)

$286.99

$

In Stock, Qty 7

0

50

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

51

Gravely 034938

BUSH.,S.437X.750X2.44 ST
(Superseded to 08818500)

$

$

Not available

52

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

53

Gravely 189304

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$5.49

$

In Stock, Qty 12

0

54

Gravely 08895000

SHEAVE
(Superseded to 08895500)

$

$

Not available

55

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$134.99

$

In Stock, Qty 6

0

56

Gravely 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.99

$

In Stock, only 2 left!

0

57

Gravely 05611400

SEAL 1.987 X1.500 X.313

$17.99

$

In Stock, only 3 left!

0

58

Gravely 124589

NUT-HEX .62-11 YWZC
(Superseded to 06535600)

$3.49

$

In Stock, only 3 left!

0
