888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Drive Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

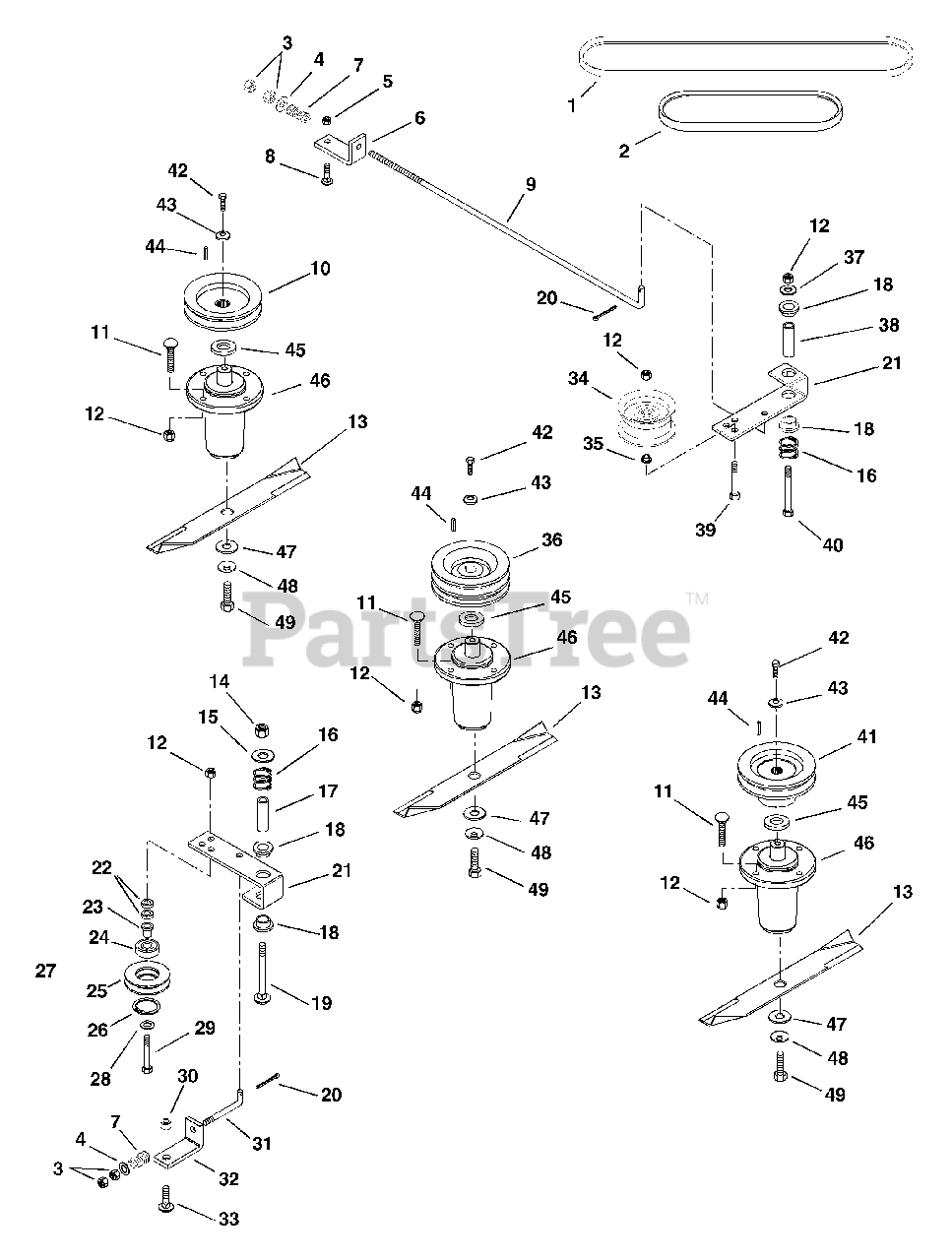

Mower Drive Parts Diagram

  • Title

1

Gravely 07223900

V-BELT, HA-RAW EDGE

$

$

Not available

2

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$29.99

$

In Stock, Qty 6

0

3

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

6

Gravely 034287

BRKT,BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

8

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 031913

ROD,IDLER L.H.
(Superseded to 08654100)

$

$

Not available

10

Gravely 04903900

WLDM'T, PLY-V 3.50X1.004 W/KEY
(Superseded to 07333467)

$70.99

$

In Stock, only 2 left!

0

11

Gravely 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 08899600

BLADE, MOWER TUNGSTEN CARBIDE
(Superseded to 08779200)

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

15

Gravely 06428900

WSHR-FL-STL .500X1.250X.083
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

16

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

17

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

18

Gravely 049669

BUSH.,F1.00X1.25X1.40 NY

$

$

Not available

19

Gravely 126803

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06218500)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

21

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

22

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

23

Gravely 038897

BSHG-FLG .786X1.0X.79
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 038898

BRG-BALL 1.85X.787X.55
(Superseded to 05425100)

$

$

Not available

25

Gravely 038896

SHEAVE,IDLER
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

26

Gravely 018960

RG-RTNG-INT 2.054X.062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 038900

ASM,IDLER SHEAVE
(Superseded to 08930300)

Note: (Contains Items 23 - 26)

$247.99

$

Usually ships in 4-12 days

0

28

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

29

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 038714

ROD,IDLER
(Superseded to 08876000)

$

$

Not available

32

Gravely 038713

BRKT,BELT TENSIONER
(Superseded to 08928800)

$

$

Not available

33

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

34

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

35

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 15

0

36

Gravely 04904200

WLDM'T PLY-DBLV 4.75,3.50X1.00

$87.99

$

In Stock, only 2 left!

0

37

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 034938

BUSH.,S.437X.750X2.44 ST
(Superseded to 08818500)

$

$

Not available

39

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 189304

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

41

Gravely 04904300

WLDM'T,PLY-V 4.75X1.004

$101.99

$

Usually ships in 4-12 days

0

42

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

43

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

44

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

45

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

46

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

Note: (Includes item 45)

$273.99

$

In Stock, Qty 8

0

47

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

48

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

49

Gravely 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$48.99

$

In Stock, only 3 left!

0
