888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Drive Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

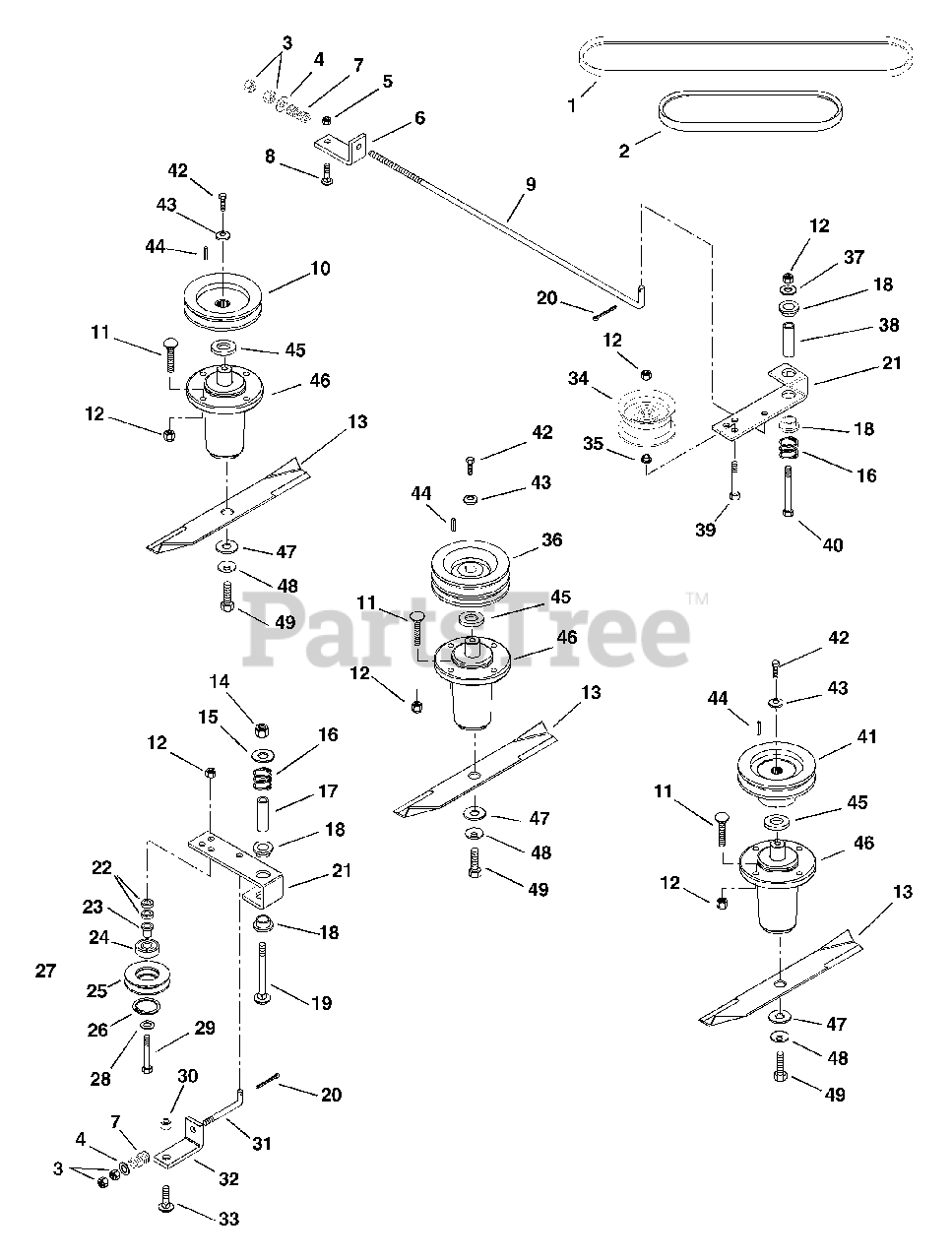

Mower Drive Parts Diagram

  • Title

1

Gravely 07223900

V-Belt, A-Section 42.15 x .516/.031

$58.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

V-Belt, A-Section 18.05 x .495
(Superseded to 07220000)

$27.99

$

In Stock, only 2 left!

0

3

Gravely 06501800

Nut-Hex .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

4

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06506200

Nut-Locking-Nylon .31-18
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 011779

Spring-Compression .125 x .781 x 1.00 338 lbs/in
(Superseded to 08327000)

$15.99

$

In Stock, only 4 left!

0

8

Gravely 126358

Bolt, Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

9

Gravely 031913

Rod, Idler
(Superseded to 08654100)

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 04903900

Sheave
(Superseded to 07333467)

$64.99

$

In Stock, only 2 left!

0

11

Gravely 06205600

Bolt, Round Head Square Neck .31-16 x 1.375
(Superseded to 06224200)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06535800

Nut-Locking-Nylon .375-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

13

Gravely 08899600

Blade, 50" Mower
(Superseded to 08779200)

$26.99

$

In Stock, Qty 18

0

14

Gravely 06536300

Nut-Locking .50-13 Hex Type Needle
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06428900

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

16

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

17

Gravely 034119

Spacer, .560 x .750 x 2.437 Steel
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 049669

Bushing-Flange .762 x 1.0 x .580 x 1.48 Nylon

$

$

Not available

19

Gravely 126803

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

20

Gravely 121222

Pin, Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

21

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

22

Gravely 014672

Bushing .406 x .750 .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 10

0

23

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

24

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

25

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

26

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

Note: (Contains Items 23 - 26)

$242.99

$

Usually ships in 4-12 days

0

28

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

29

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 10

0

30

Gravely 06512900

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06540600)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

32

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

33

Gravely 06223100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

34

Gravely 034286

Idler, Flat
(Superseded to 07327800)

$79.99

$

In Stock, Qty 15

0

35

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, Qty 9

0

36

Gravely 04904200

Sheave

$85.99

$

In Stock, only 2 left!

0

37

Gravely 06400800

Washer-Flat-Steel .438 x 1.000 x .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

38

Gravely 034938

Bushing, Steel .437 x .750 x 2.44
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

39

Gravely 180132

Bolt-Hex .28-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 189304

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 04904300

Sheave

$99.99

$

Usually ships in 4-12 days

0

42

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

43

Gravely 00597000

Washer-Cupped Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

44

Gravely 06602200

Key-Straight .25 x 1.00 x .25

$3.99

$

In Stock, Qty 10

0

45

Gravely 09238200

Slinger-Dust

$9.49

$

In Stock, Qty 16

0

46

Gravely 58803600

Assembly-Spindle

Note: (Includes item 45)

$250.99

$

In Stock, only 1 left!

0

47

Gravely 06435200

Washer-Flat .640 x 1.81.x..250
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

48

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

49

Gravely 07053400

Bolt-Blade

$46.99

$

In Stock, Qty 12

0
