888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Frame Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

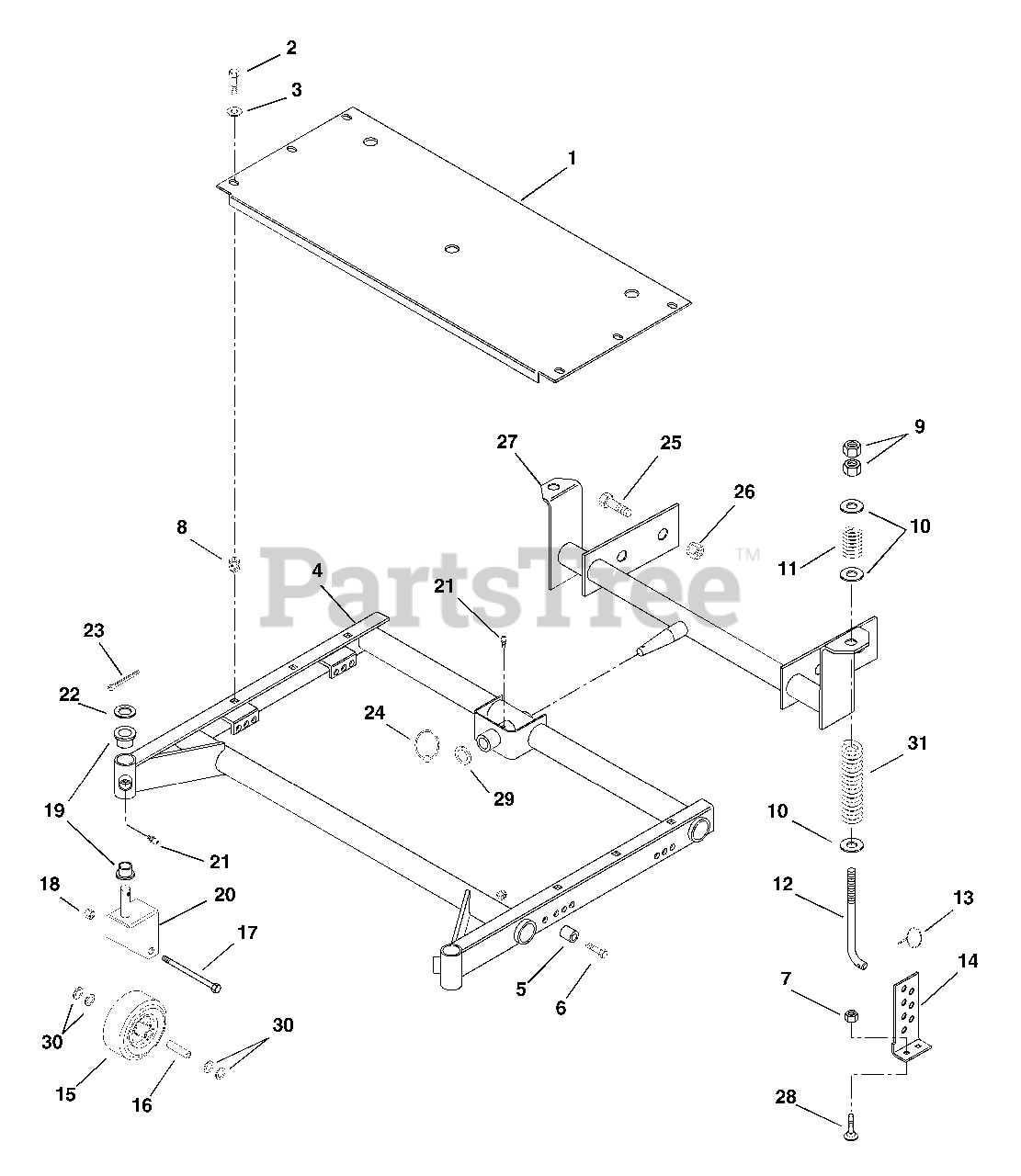

Mower Frame Parts Diagram

  • Title

1

Gravely 08869700

GRD, 50" MOWER BELT
(Superseded to 08869800)

$

$

Not available

2

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08852100

WLDMT,MWR FRM

$205.99

$

Usually ships in 4-12 days

0

5

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

7

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

12

Gravely 035690

ROD,HEIGHT ADJ
(Superseded to 08599000)

$

$

Not available

13

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 08852900

BRKT,REAR ADJ R.H.
(Superseded to 08852953)

$5.99

$

Usually ships in 4-12 days

0

Gravely 08852800

BRKT,REAR ADJ L.H.

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$119.99

$

Usually ships in 4-12 days

0

16

Gravely 011950

SPACER .532X.748X3.34
(Superseded to 09023500)

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 445608

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

18

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

20

Gravely 09066400

WM'T, CASTER FORK

$197.99

$

Usually ships in 4-12 days

0

21

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

23

Gravely 103409

PIN-CTR .18X1.50 EXTPRSQCT YZ
(Superseded to 06712800)

$2.49

$

In Stock, only 2 left!

0

24

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

26

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 08851700

WLDMT,MOWER FRM MTG

$

$

Not available

28

Gravely 126227

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

29

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

30

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

31

Gravely 08316500

SG-COMP .095X.75X6.25 WLD 35

$9.99

$

Usually ships in 4-12 days

0
