888016 - Gravely 44 Gallon Grass Bagger for 4-Wheel Tractor (SN: 000101 & Above) 44 GALLON CAN GRASS CATCHER Parts Diagram

44 Gallon Grass Bagger for 4-Wheel Tractor

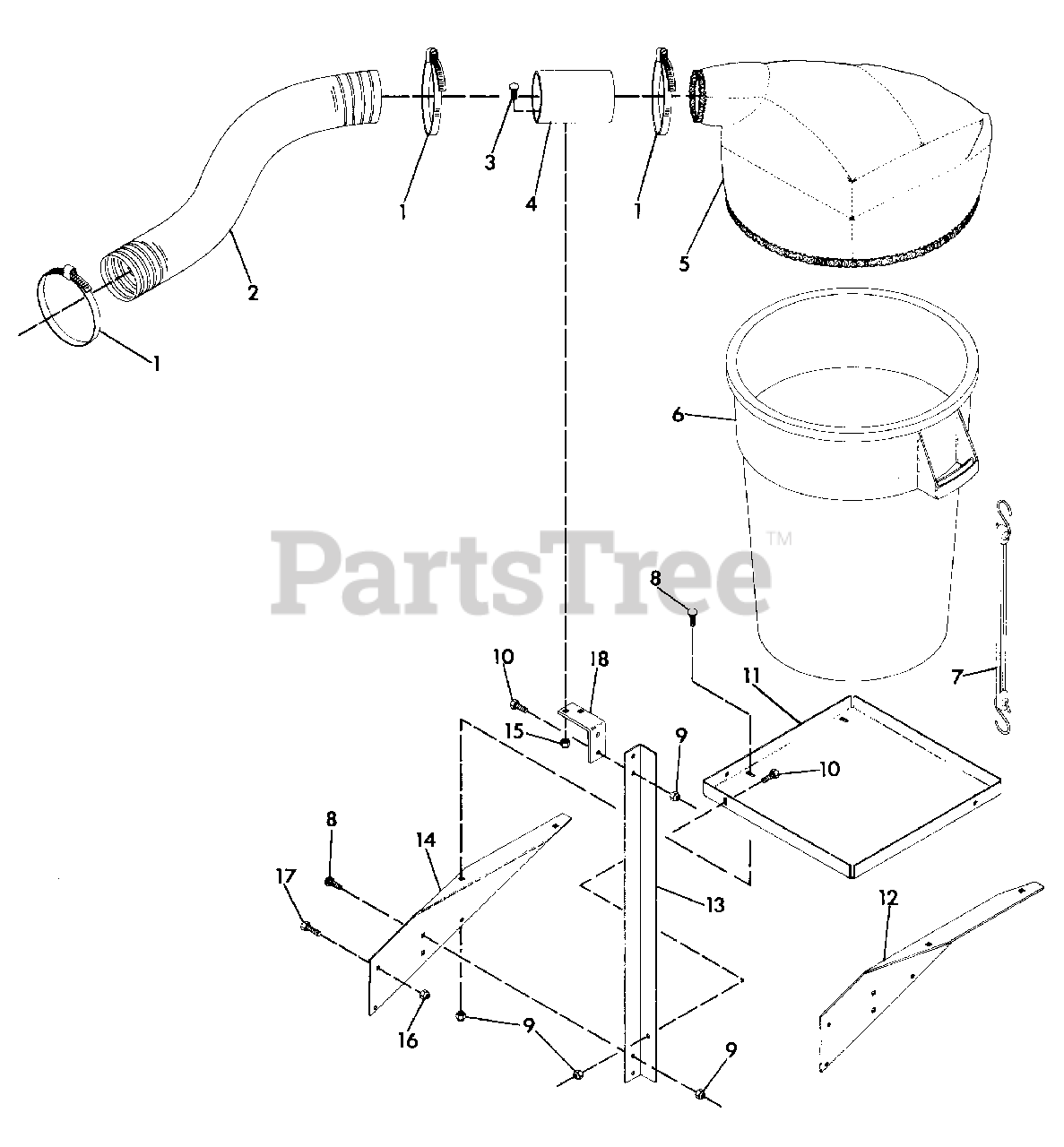

44 GALLON CAN GRASS CATCHER Parts Diagram

  • Title

1

Gravely 036996

CLAMP
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 038084

HOSE, BLOWER TO CAN
(Superseded to 08804100)

$

$

Not available

3

Gravely 126211

BOLT, 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 038092

TUBE, CONNECTOR
(Superseded to 08742453)

$

$

Not available

5

Gravely 038086

COVER, TOP
(Superseded to 08742200)

$

$

Not available

6

Gravely 038085

CAN, GRASS
(Superseded to 08707400)

$

$

Not available

7

Gravely 038089

STRAP, HOLD DOWN
(Superseded to 07524600)

$

$

Not available

8

Gravely 120915

BOLT, 3/8-16X1 RD HD SQ NK

$

$

Not available

9

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

10

Gravely 180122

BOLT, HEX 3/8-16X1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 038081

TRAY, SUPPORT
(Superseded to 08741900)

$

$

Not available

12

Gravely 038079

RAIL, LEFT SIDE
(Superseded to 08741700)

$

$

Not available

13

Gravely 038082

SUPPORT, TUBE
(Superseded to 08742000)

$

$

Not available

14

Gravely 038080

RAIL, RIGHT SIDE
(Superseded to 08741800)

$31.99

$

Usually ships in 4-12 days

0

15

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 038083

BRACKET, TUBE
(Superseded to 08742100)

$

$

Not available
