888020 - Gravely 44 Gallon Grass Bagger for 4-Wheel Tractor (SN: 000101 & Above) 44 GALLON CAN GRASS CATCHER Parts Diagram

44 Gallon Grass Bagger for 4-Wheel Tractor

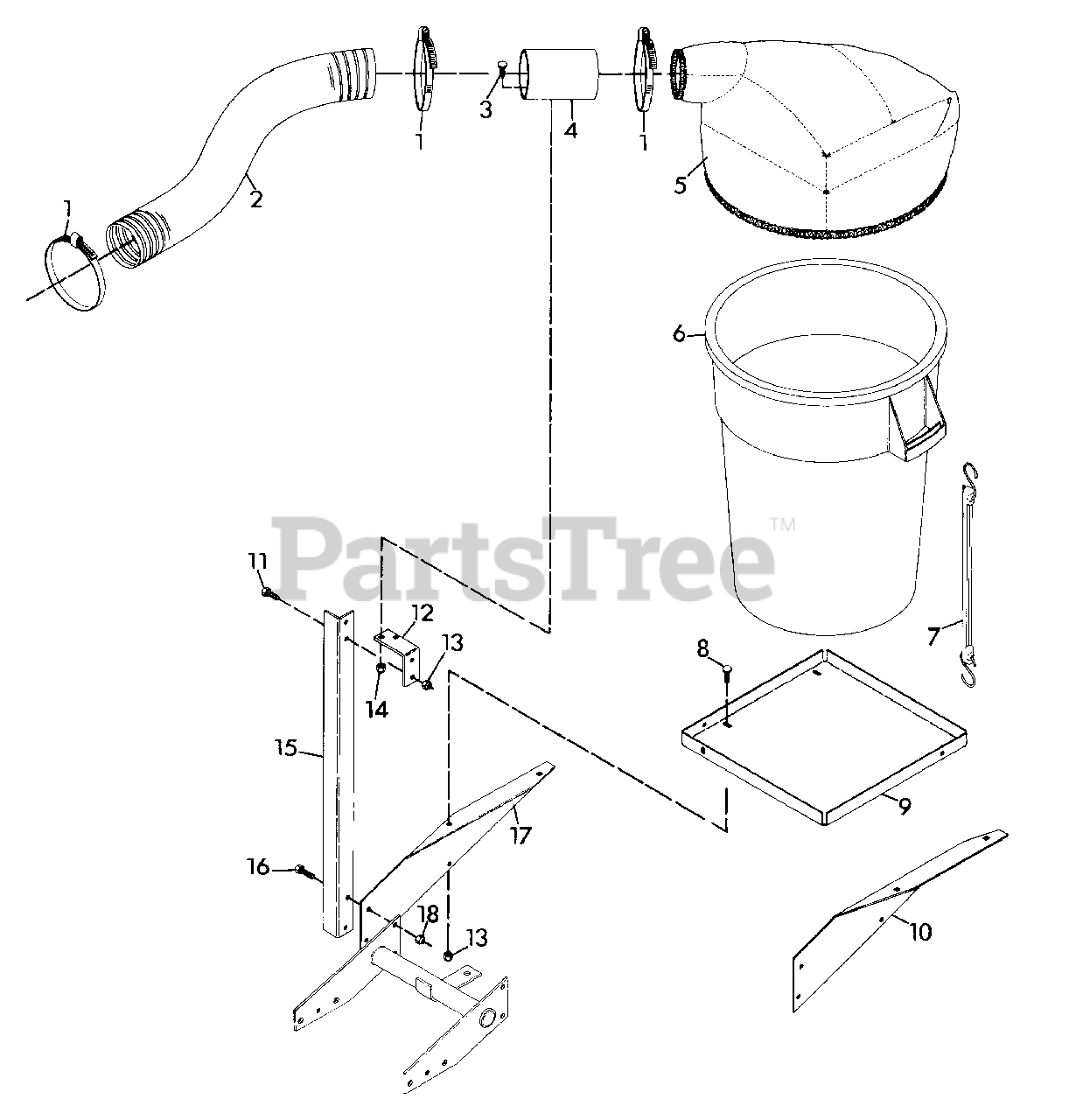

44 GALLON CAN GRASS CATCHER Parts Diagram

  • Title

1

Gravely 036996

CLAMP-HOSE WRM 2.13/8.62X.56
(Superseded to 03022400)

$18.99

$

Usually ships in 4-12 days

0

2

Gravely 038084

HOSE,BLWR TO CAN
(Superseded to 08804100)

$

$

Not available

3

Gravely 126211

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 038092

TUBE,CONN
(Superseded to 08742453)

$

$

Not available

5

Gravely 038086

CVR,TOP
(Superseded to 08742200)

$

$

Not available

6

Gravely 038085

CAN,GR
(Superseded to 08707400)

$

$

Not available

7

Gravely 038089

STRAP,HOLD DOWN
(Superseded to 07524600)

$

$

Not available

8

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 038081

TRAY,SPRT
(Superseded to 08741900)

$

$

Not available

10

Gravely 042302

RAIL,LEFT SIDE
(Superseded to 08758700)

$

$

Not available

11

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 038083

BRKT,TUBE
(Superseded to 08742100)

$

$

Not available

13

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

15

Gravely 042304

SPRT,TUBE
(Superseded to 08758900)

$

$

Not available

16

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

17

Gravely 042303

RAIL,RIGHT SIDE
(Superseded to 08758800)

$

$

Not available

18

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0
