888027 - Gravely Pro Series Sulky Ride (SN: 000101 & Above)

Pro Series Sulky Ride

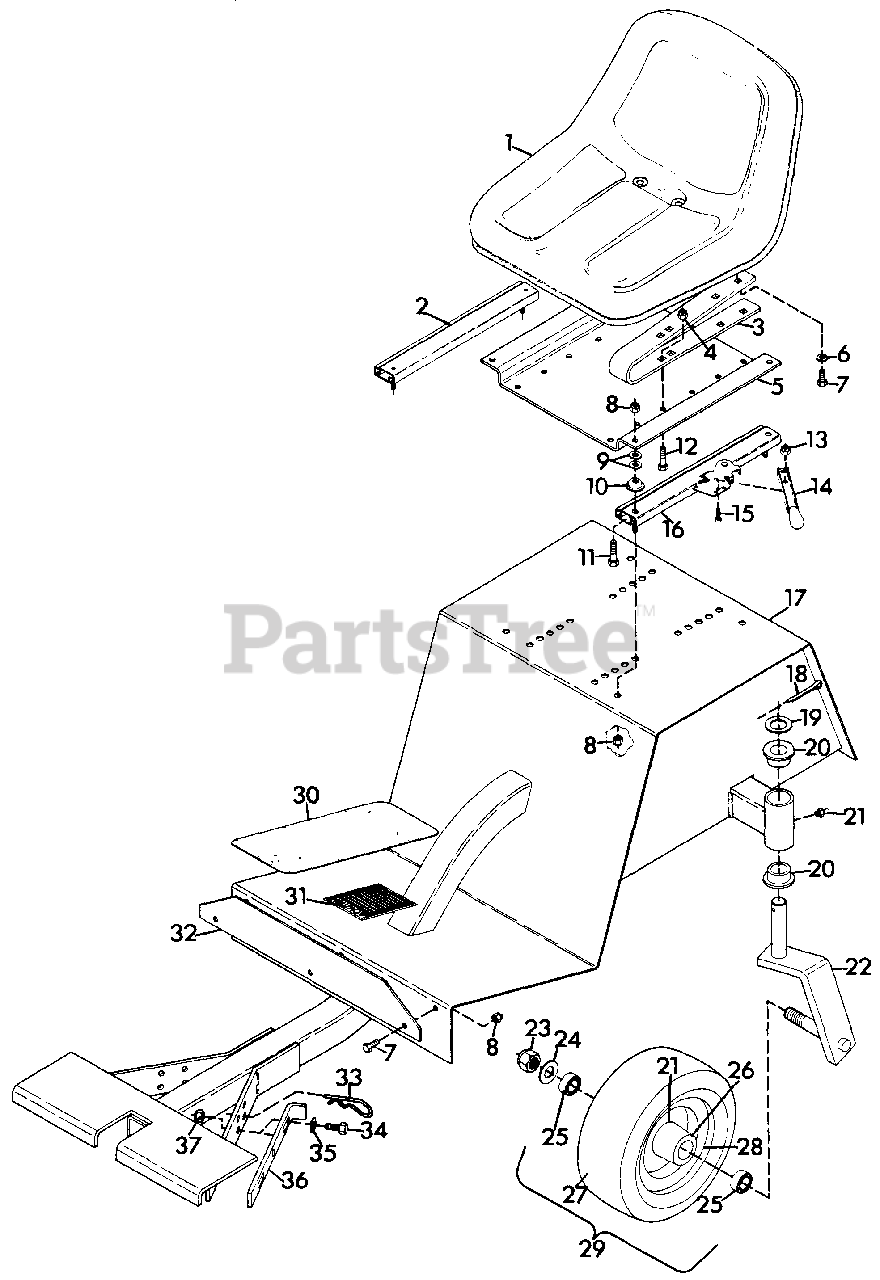

888027 - Gravely Pro Series Sulky Ride (SN: 000101 & Above) > Parts Diagrams (1) > RIDING SULKY

  • Title
038940

1

SEAT, HIGH BACK

Part# 038940 (Superseded to 59100200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

035642

2

ADJUSTER, SEAT

Part# 035642 (Superseded to 03600800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

038806

3

SPRING, SEAT

Part# 038806 (Superseded to 08809151)

OEM Warranty Repair Part for Gravely

Not available

413447

4

NUT, LOCK 5/16-18

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

042146

5

PLATE

Part# 042146 (Superseded to 08816800)

OEM Warranty Repair Part for Gravely

Not available

120214

6

WASHER, LOCK 5/16 REG.

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180077

7

BOLT, HEX 5/16-18X.75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

419455

8

NUT, LOCK 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

120393

9

WASHER, FLAT .344X.688X.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035670

10

SPACER

Part# 035670 (Superseded to 03418300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180081

11

BOLT, HEX 5/16-18X1.25

Part# 180081 (Superseded to 05947500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180079

12

BOLT, HEX 5/16-18X1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

190254

13

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

035643

14

HANDLE, SEAT ADJUSTER

Part# 035643 (Superseded to 08650800)

OEM Warranty Repair Part for Gravely

Not available

159929

15

SCREW, MACH. 10-24X.625 P/HD

Part# 159929 (Superseded to 06111100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

035641

16

ADJUSTER, SEAT W/LATCH

Part# 035641 (Superseded to 03600800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

042102

17

WELDMENT, SULKY FRAME

Part# 042102 (Superseded to 21262500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.00

137253

18

PIN, COTTER .187X1.62

Part# 137253 (Superseded to 06705800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

019340

19

RACE, BEARING THRUST

Part# 019340 (Superseded to 06435300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

018355

20

BUSHING, PIVOT

Part# 018355 (Superseded to 05520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

411027

21

FITTING, LUBE 1/4-28

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

038967

22

WELDMENT, CASTER FORK

Part# 038967 (Superseded to 08810100)

OEM Warranty Repair Part for Gravely

Not available

456007

23

NUT, LOCK 3/4-10

Part# 456007 (Superseded to 06540800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

131017

24

WASHER, FLAT .812X1.496X.134

Part# 131017 (Superseded to 06439000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

026077

25

BEARING

Part# 026077 (Superseded to 05423900)

OEM Warranty Repair Part for Gravely

Not available

031019

26

WHEEL

Part# 031019 (Superseded to 07134000)

OEM Warranty Repair Part for Gravely

Not available

026526

27

TIRE

Part# 026526 (Superseded to 07128200)

OEM Warranty Repair Part for Gravely

Not available

026509

28

TUBE

Part# 026509 (Superseded to 21373800)

OEM Warranty Repair Part for Gravely

Not available

028221

29

ASSEMBLY, WHEEL AND TIRE

Part# 028221 (Superseded to 07128400)

OEM Warranty Repair Part for Gravely

Not available

011653

30

COVER, LARGE FOOTBOARD

Part# 011653 (Superseded to 09023200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

035752

31

DECAL, SULKY

Part# 035752 (Superseded to 05209600)

OEM Warranty Repair Part for Gravely

Not available

042098

32

PLATE, TOE GUARD

Part# 042098 (Superseded to 08815800)

OEM Warranty Repair Part for Gravely

Not available

010405

33

PIN, HAIR

Part# 010405 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180123

34

BOLT, HEX 3/8-16X1.125

Part# 180123

OEM Warranty Repair Part for Gravely

Not available

446470

35

WASHER, FLAT .375X1.125X.065

Part# 446470 (Superseded to 06425500)

OEM Warranty Repair Part for Gravely

Not available

042099

36

STRAP, SULKY LATCH

Part# 042099 (Superseded to 08815900)

OEM Warranty Repair Part for Gravely

Not available

456004

37

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available
