888028 - Gravely 36" Deck for Pro-Walk Mower (SN: 000101 & Above)

36" Deck for Pro-Walk Mower

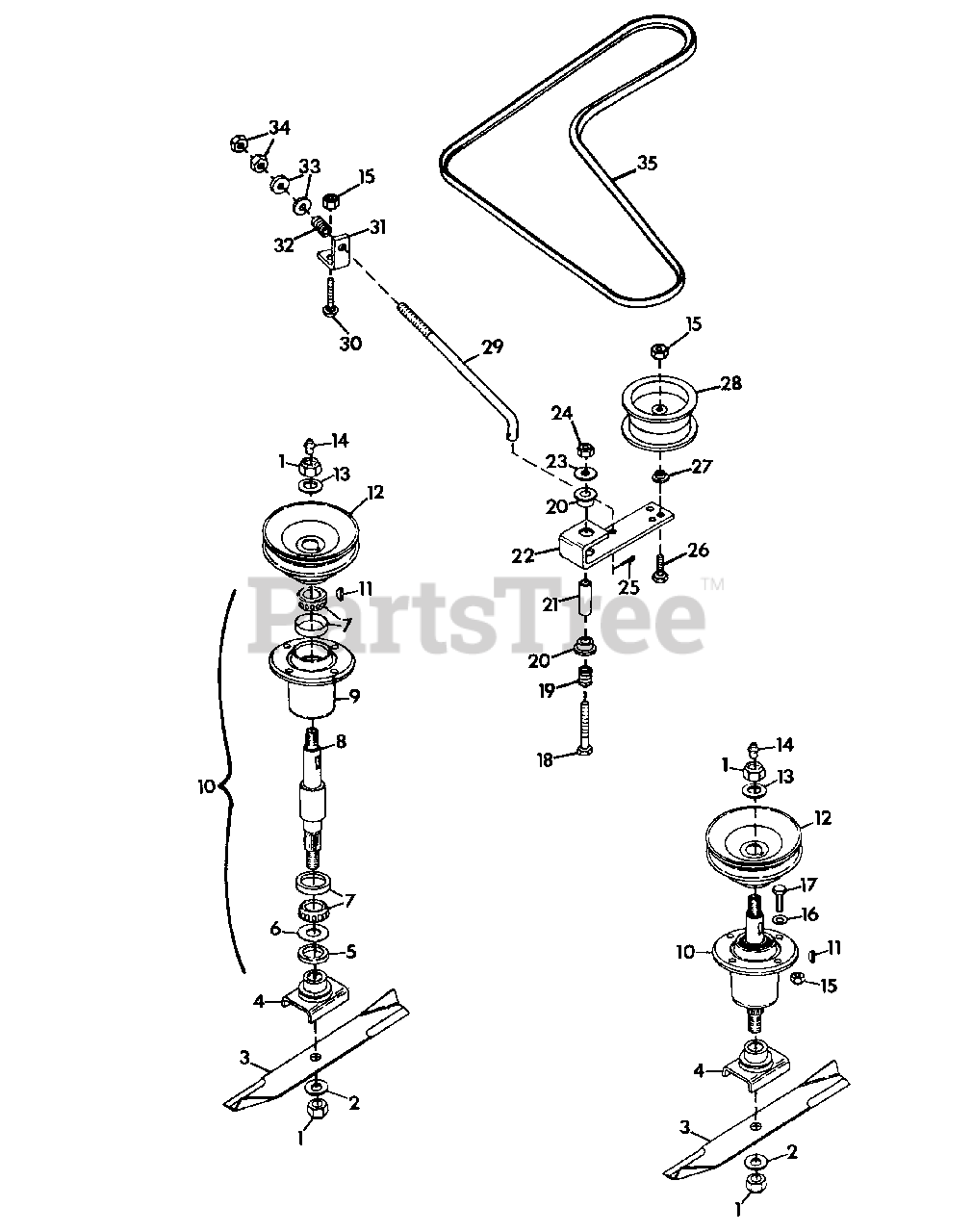

888028 - Gravely 36" Deck for Pro-Walk Mower (SN: 000101 & Above) > Parts Diagrams (2) > MOWER DRIVE

  • Title
418692

1

NUT, LOCK 5/8-11

Part# 418692 (Superseded to 06540700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

131016

2

WASHER, FLAT .656X1.312X.095

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

038883

3

BLADE

Part# 038883 (Superseded to 08816600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

023026

4

WELDMENT, BLADE CRADLE

Part# 023026 (Superseded to 08798300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

021211

5

SEAL, STEEL

Part# 021211 (Superseded to 08722600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

020743

6

WASHER, FLAT .975X1.970X.030

Part# 020743 (Superseded to 06426900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

038199

7

ASSEMBLY, BEARING

Part# 038199 (Superseded to 21245800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

034603

8

SHAFT, SPINDLE

Part# 034603 (Superseded to 58802900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $100.56

021215

9

HOUSING, BEARING

Part# 021215 (Superseded to 08722700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

034605

10

ASSEMBLY, SPINDLE

Part# 034605 (Superseded to 58803600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

124553

11

KEY, WOODRUFF 1/4X1 HARD #15

Part# 124553 (Superseded to 06608900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

034936

12

SHEAVE, SPINDLE

Part# 034936 (Superseded to 08804400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

033845

13

WASHER, FLAT .687X1.312X.122

Part# 033845 (Superseded to 06427400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

411010

14

FITTING, LUBE 1/8 NPT

Part# 411010 (Superseded to 07012500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

456004

15

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

120388

16

WASHER, FLAT .438X1.00X.083

Part# 120388 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180124

17

BOLT, HEX 3/8-16X1.250

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180191

18

BOLT, HEX 1/2-13X3.25

Part# 180191 (Superseded to 05960000)

OEM Warranty Repair Part for Gravely

Not available

020444

19

SPRING, COMPRESSION 1X.80X36 LB/N

Part# 020444 (Superseded to 08329100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

010174

20

BUSHING, NYLON .760X1.00X.600

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

034119

21

SPACER

Part# 034119 (Superseded to 08820500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

034120

22

ARM, IDLER PIVOT

Part# 034120 (Superseded to 08905900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

415543

23

WASHER, FLAT .531X1.250X.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

414074

24

NUT, LOCK 1/2-13

Part# 414074 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

121222

25

PIN, COTTER .09X.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

180132

26

BOLT, HEX 3/8-16X2.25

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

024815

27

BUSHING

Part# 024815 (Superseded to 05515800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

034286

28

PULLEY, IDLER

Part# 034286 (Superseded to 07327800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

021112

29

ROD, IDLER

Part# 021112 (Superseded to 03351200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

120915

30

BOLT, 3/8-16X1.00 RD HD SQ NK

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

034287

31

BRACKET, BELT TENSIONER

Part# 034287 (Superseded to 08802700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $31.25

011779

32

SPRING, COMPRESSION 1.00X.78

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120394

33

WASHER, FLAT .406X.812X.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120369

34

NUT, HEX 3/8-24

Part# 120369 (Superseded to 06522900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

038745

35

BELT, PRO-40 MOWER

Part# 038745 (Superseded to 07220300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.72
