888030 - Gravely 50" Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

50" Deck for Pro-Walk Mower

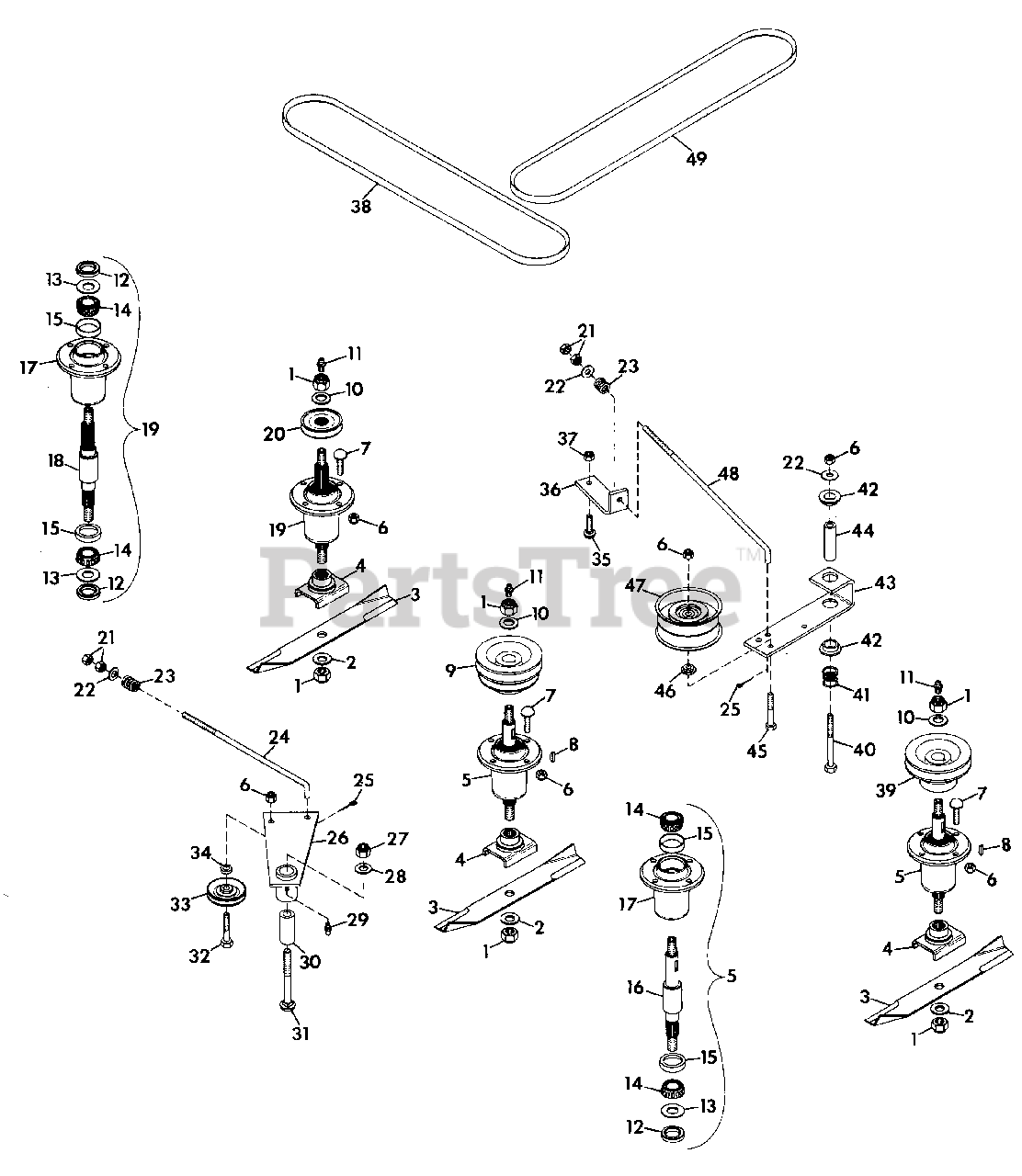

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$5.49

$

In Stock, Qty 20+

0

2

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 011234

BLADE
(Superseded to 08861600)

$25.99

$

In Stock, Qty 20+

0

4

Gravely 023026

WELM'D, BLADE CRADLE
(Superseded to 08798300)

$165.99

$

Usually ships in 4-12 days

0

5

Gravely 034605

MAINTENANCE FREE SPINDLE ASSY
(Superseded to 58803600)

$286.99

$

In Stock, Qty 7

0

6

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 126402

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$4.99

$

In Stock, Qty 9

0

9

Gravely 034935

SHEAVE,SPINDLE
(Superseded to 08804300)

$

$

Not available

10

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$3.49

$

In Stock, Qty 6

0

11

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$5.49

$

In Stock, Qty 11

0

12

Gravely 021211

SPCR 1.391X1.980X.313 PM
(Superseded to 08722600)

Note: (IN 34605)

$17.99

$

In Stock, Qty 7

0

12

Gravely 021211

SPCR 1.391X1.980X.313 PM
(Superseded to 08722600)

Note: (IN 21306)

$17.99

$

In Stock, Qty 7

0

13

Gravely 020743

WSHR-FL-STL .97X1.865X.03
(Superseded to 06426900)

Note: (IN 34605)

$6.99

$

In Stock, Qty 20+

0

13

Gravely 020743

WSHR-FL-STL .97X1.865X.03
(Superseded to 06426900)

Note: (IN 21306)

$6.99

$

In Stock, Qty 20+

0

14

Gravely 009246

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$30.99

$

In Stock, Qty 15

0

15

Gravely 009245

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$30.99

$

In Stock, Qty 15

0

16

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$134.99

$

In Stock, Qty 6

0

17

Gravely 021215

HSG,BEARING
(Superseded to 08722700)

$143.99

$

Usually ships in 4-12 days

0

18

Gravely 021216

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802800)

$91.99

$

In Stock, only 2 left!

0

19

Gravely 021306

MAINTENANCE FREE SPINDLE ASSY
(Superseded to 58803600)

$286.99

$

In Stock, Qty 7

0

20

Gravely 020065

SHEAVE
(Superseded to 08896000)

$95.99

$

In Stock, only 4 left!

0

21

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$17.99

$

In Stock, only 3 left!

0

24

Gravely 031913

ROD,IDLER L.H.
(Superseded to 08654100)

$

$

Not available

25

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 031364

WLDMT,IDLER PIVOT "A"
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 120389

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$4.99

$

In Stock, only 2 left!

0

29

Gravely 014406

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07012600)

$

$

Not available

30

Gravely 031367

SPACER .562X.855X2.18 ST
(Superseded to 08827800)

$20.99

$

Usually ships in 4-12 days

0

31

Gravely 126803

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06218500)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.99

$

In Stock, Qty 20+

0

33

Gravely 027891

ASM,SHEAVE
(Superseded to 21247800)

$

$

Not available

34

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.99

$

In Stock, only 2 left!

0

35

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 034287

BRKT,BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

37

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

38

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$30.99

$

In Stock, only 1 left!

0

39

Gravely 034936

SHEAVE,SPINDLE
(Superseded to 08804400)

$421.99

$

Usually ships in 4-12 days

0

40

Gravely 189304

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$5.49

$

In Stock, Qty 14

0

41

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

42

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.99

$

In Stock, Qty 20+

0

43

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$88.99

$

In Stock, only 1 left!

0

44

Gravely 034938

BUSH.,S.437X.750X2.44 ST
(Superseded to 08818500)

$

$

Not available

45

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

46

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$10.99

$

In Stock, Qty 9

0

47

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$95.99

$

In Stock, Qty 11

0

48

Gravely 034937

ROD,IDLER
(Superseded to 20614200)

$

$

Not available

49

Gravely 034945

BELT,HA 91.10 RAW LAMINATED
(Superseded to 20614700)

$59.99

$

Usually ships in 4-12 days

0
