888036 - Gravely 36" Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

36" Deck for Pro-Walk Mower

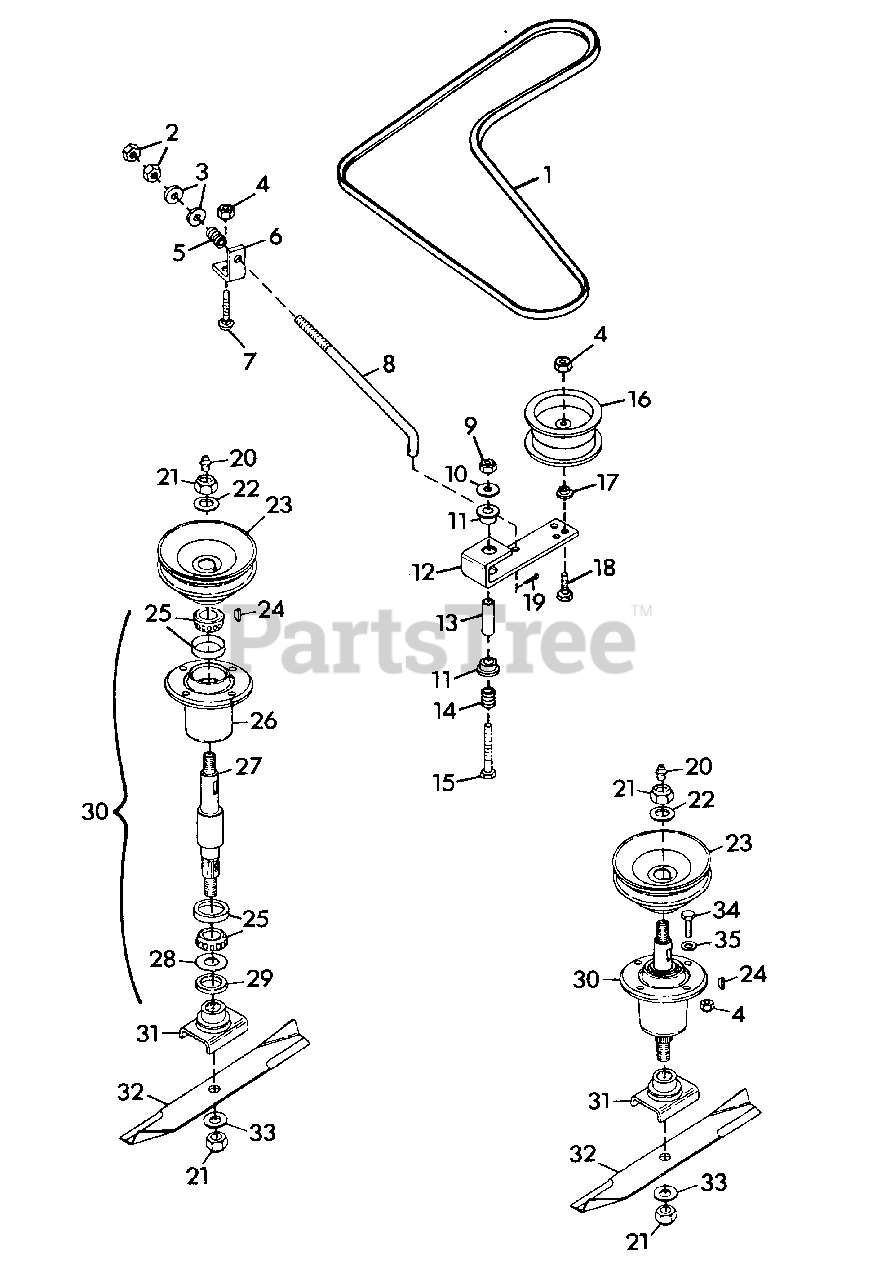

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 038745

V-BELT, HA-RAW EDGE
(Superseded to 07220300)

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

3

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

6

Gravely 034287

BRKT,BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 021112

ROD,IDLER 40 IN. MOWER
(Superseded to 03351200)

$

$

Not available

9

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

10

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

11

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

12

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

14

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

15

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

17

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 15

0

18

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

20

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

21

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

23

Gravely 034936

SHEAVE,SPINDLE
(Superseded to 08804400)

$403.99

$

Usually ships in 4-12 days

0

24

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

25

Gravely 038199

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

26

Gravely 021215

HSG,BEARING
(Superseded to 08722700)

$137.99

$

Usually ships in 4-12 days

0

27

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$128.99

$

In Stock, Qty 10

0

28

Gravely 020743

WSHR-FL-STL .97X1.865X.03
(Superseded to 06426900)

$6.49

$

In Stock, Qty 20+

0

29

Gravely 021211

SPCR 1.391X1.980X.313 PM
(Superseded to 08722600)

$16.99

$

In Stock, Qty 9

0

30

Gravely 034605

MAINTENANCE FREE SPINDLE ASSY
(Superseded to 58803600)

$273.99

$

In Stock, Qty 8

0

31

Gravely 023026

WELM'D, BLADE CRADLE
(Superseded to 08798300)

$158.99

$

Usually ships in 4-12 days

0

32

Gravely 042124

BLD,36"MOWER
(Superseded to 08816600)

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0
