888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 003015 - 009999) Mower Drive Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

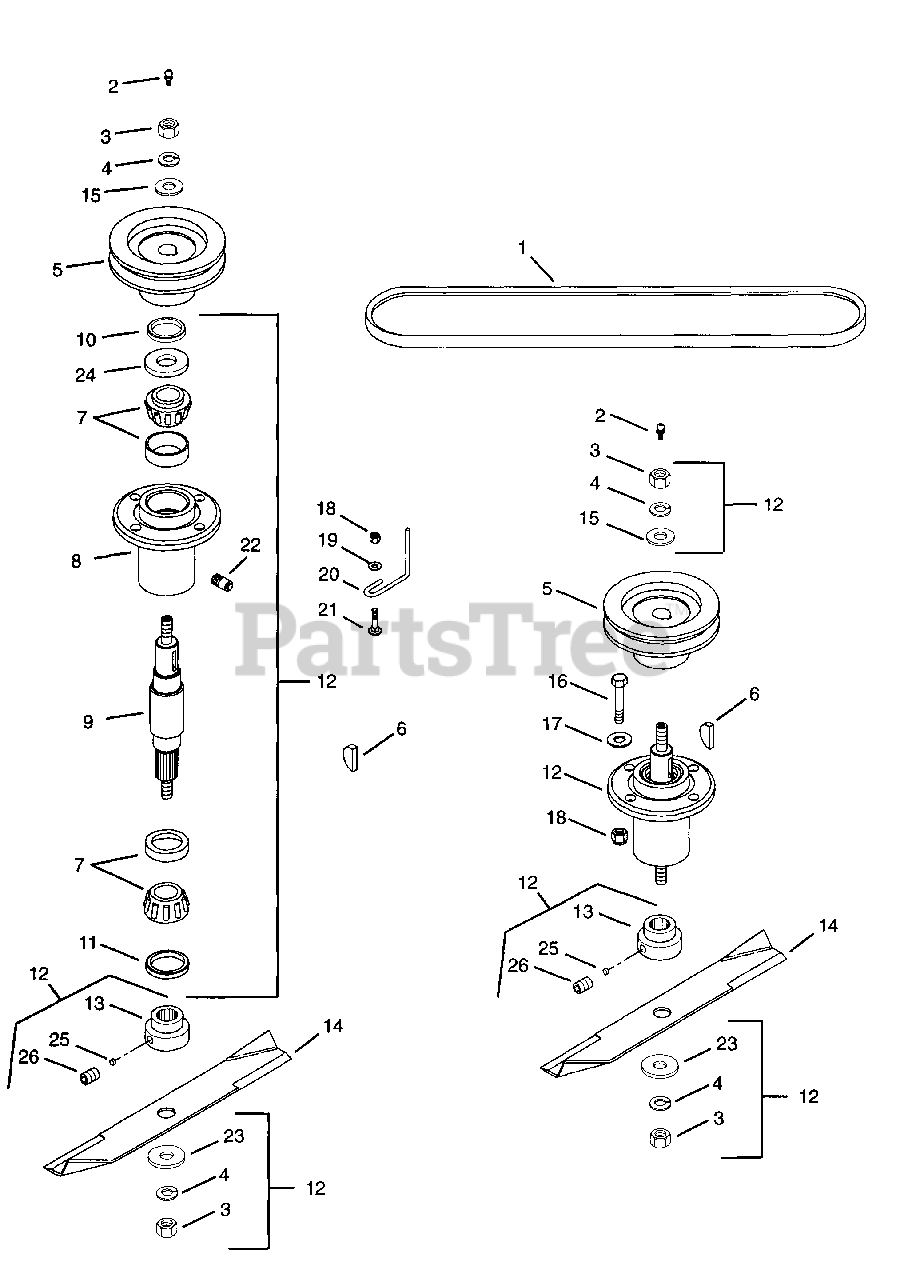

Mower Drive Parts Diagram

  • Title

1

Gravely 07227800

V-Belt A-Section
(Superseded to 07238600)

$44.33

$

In Stock, only 1 left!

0

2

Gravely 07012600

Fitting-Lube
(Superseded to 07001806)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06535300

Nut-Locking-Center .62-11

Note: (Model 047)

$2.46

$

In Stock, only 2 left!

0

3

Gravely 06535600

Nut-Hex .62-11

Note: (Model 301)

$2.46

$

Usually ships in 4-12 days

0

4

Gravely 06309500

Washer-Lock .62 x .156

$2.12

$

Usually ships in 4-12 days

0

5

Gravely 08895500

Sheave

$

$

Not available

6

Gravely 124553

Key-Woodruff .25 x 1.00
(Superseded to 06608900)

$3.63

$

In Stock, only 4 left!

0

7

Gravely 69000300

Bearing, Cone w/Grease
(Superseded to 05406900)

$17.83

$

In Stock, Qty 20+

0

8

Gravely 08894500

Bearing Housing

$104.48

$

In Stock, only 1 left!

0

9

Gravely 08898500

Spindle Shaft
(Superseded to 58802900)

$116.16

$

In Stock, only 2 left!

0

10

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$15.21

$

In Stock, only 3 left!

0

11

Gravely 05613000

Seal 1.987 x 1.375 x .313

$9.45

$

In Stock, only 4 left!

0

12

Gravely 58802400

Service Kit Assembly
(Superseded to 58803600)

$222.99

$

In Stock, Qty 6

0

13

Gravely 08886500

Hub

$49.08

$

Usually ships in 4-12 days

0

14

Gravely 042124

Blade - 36" Mower
(Superseded to 08816600)

Note: (Model 047)

$20.07

$

In Stock, only 3 left!

0

14

Gravely 08882600

Blade - 36" Mower

Note: (Model 301)

$22.30

$

Usually ships in 4-12 days

0

15

Gravely 06427400

Washer-Flat-Steel .687 x 1.312 x .150

$3.08

$

In Stock, Qty 15

0

16

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

Note: (Model 047)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 05958000

Bolt-Hex .36-16 x 1.25 Grade 5
(Superseded to 05901724)

Note: (Model 301)

$2.18

$

In Stock, Qty 11

0

17

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

Note: (Model 047)

$1.96

$

In Stock, Qty 20+

0

17

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

Note: (Model 301)

$2.24

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Nylon .38-16
(Superseded to 06500825)

Note: (Model 047)

$2.24

$

In Stock, Qty 20+

0

18

Gravely 06535800

Nut-Locking-Center .38-16
(Superseded to 06500831)

Note: (Model 301)

$2.24

$

In Stock, Qty 17

0

19

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (Model 407)

$2.52

$

In Stock, Qty 18

0

19

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

Note: (Model 301)

$3.08

$

In Stock, Qty 20+

0

20

Gravely 08874000

Belt Brake Finger 2-Deck Clutch

$53.55

$

Usually ships in 4-12 days

0

21

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 08896800

Relief Fitting-Grease

$13.36

$

Usually ships in 4-12 days

0

23

Gravely 06435200

Washer-Flat-Steel .640 x 1.81 x .250
(Superseded to 06400829)

$3.91

$

In Stock, Qty 18

0

24

Gravely 06416600

Washer-Hardened-Thrust 1.007 x 1.542 x 062

$3.63

$

In Stock, Qty 7

0

25

Gravely 03191400

Plug

$5.37

$

Usually ships in 4-12 days

0

26

Gravely 06005400

Screw-Set .25-20 x .25

$3.58

$

Usually ships in 4-12 days

0
