888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 003015 - 009999) Mower Frame Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

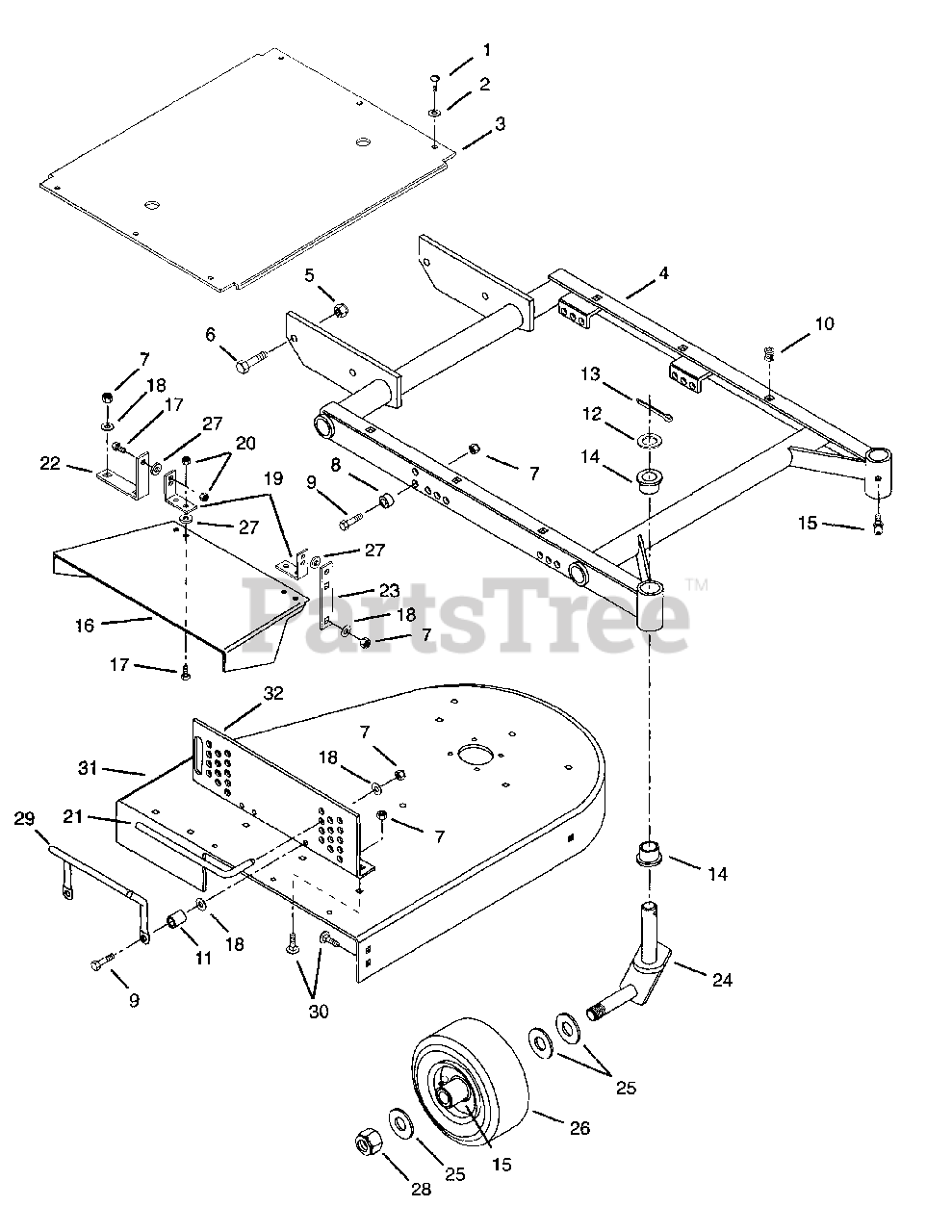

Mower Frame Parts Diagram

  • Title

1

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 08829200

CVR,BELT PRO MWR

$

$

Not available

4

Gravely 08872900

WLDT, MOWER FRAME, 36", PRO150
(Superseded to 58804100)

$475.99

$

Usually ships in 4-12 days

0

5

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

6

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

10

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0

13

Gravely 103409

PIN-CTR .18X1.50 EXTPRSQCT YZ
(Superseded to 06712800)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

16

Gravely 038952

CHUTE,DISCHARGE-PRO 150- RED
(Superseded to 04908453)

$79.99

$

Usually ships in 4-12 days

0

17

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 08881600

BRACKET, DISCH.CHUTE

$16.99

$

Usually ships in 4-12 days

0

20

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

21

Gravely 038514

PIN,MOWER LOCKING
(Superseded to 08875900)

$19.99

$

In Stock, only 1 left!

0

22

Gravely 047163

BRKT
(Superseded to 08829100)

Note: (Model 047)

$

$

Not available

Gravely 08809600

BRKT

Note: (Model 301)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 08809600

BRKT

Note: (Model 047)

$22.99

$

Usually ships in 4-12 days

0

Gravely 038949

BRKT
(Superseded to 08809600)

Note: (Model 301)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 08954600

WLDMT,CASTER FK
(Superseded to 08954653)

$230.99

$

Usually ships in 4-12 days

0

25

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$119.99

$

Usually ships in 4-12 days

0

27

Gravely 06432800

WSHR-FL-RBR .375X1.500X.060

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06540800

NUT-LK-NYL .75-10 YWZC

$6.99

$

Usually ships in 4-12 days

0

29

Gravely 044507

HANDLE
(Superseded to 08878000)

$61.99

$

Usually ships in 4-12 days

0

30

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 047135

WLDMT,36" DECK
(Superseded to 08828500)

$

$

Not available

32

Gravely 049343

BRKT,MWR SIDE SPRT L.H.
(Superseded to 08836200)

$126.99

$

Usually ships in 4-12 days

0

Gravely 049342

BRKT,MWR SIDE SPRT R.H.
(Superseded to 08836100)

$125.99

$

Usually ships in 4-12 days

0
