888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 010000 & Above) Mower Drive Parts Diagram

50" Deck for Pro-Walk 150 Mower

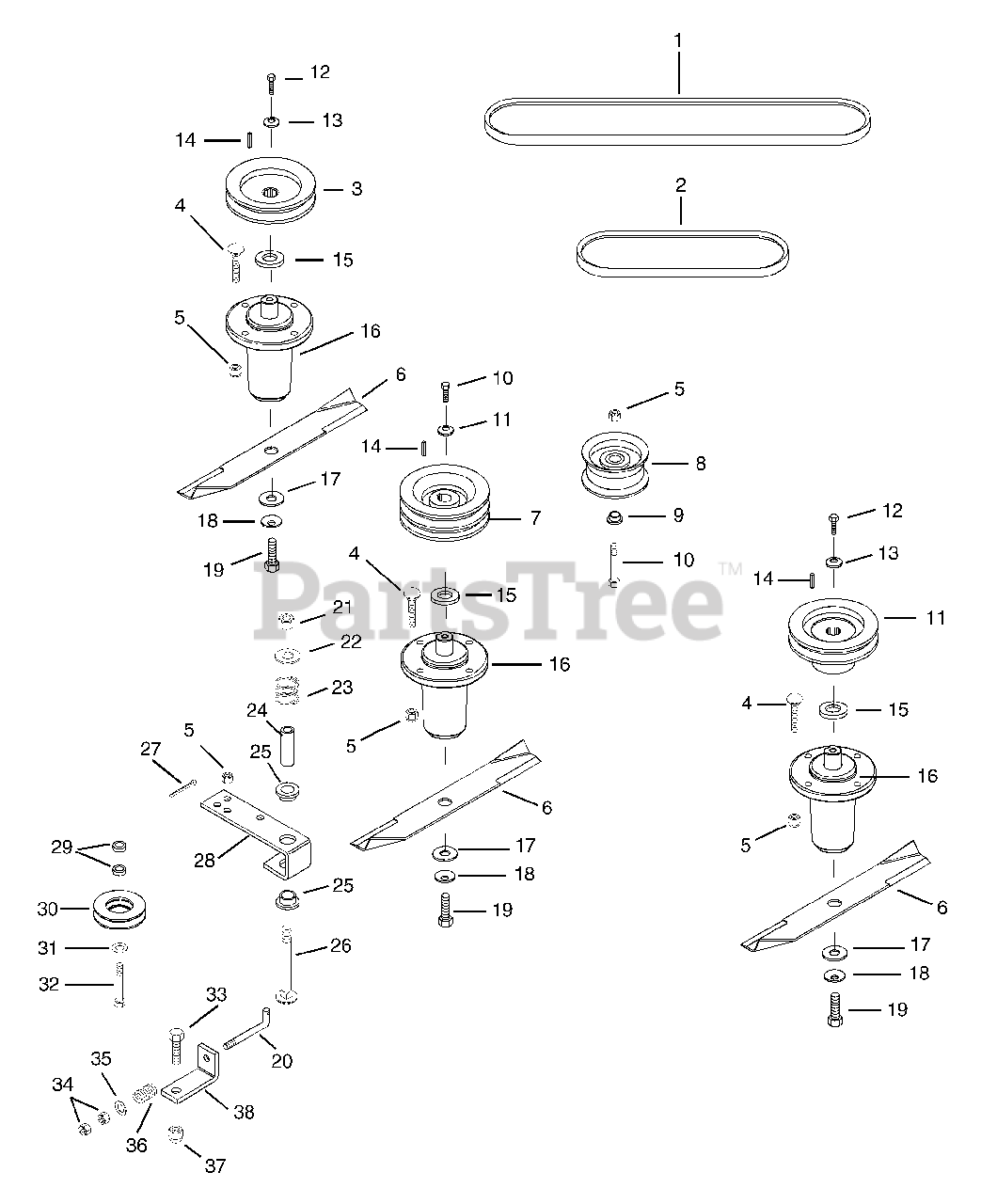

Mower Drive Parts Diagram

  • Title

1

Gravely 07227700

OBSOLETE
(Superseded to 07238200)

$64.99

$

In Stock, Qty 6

0

2

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$29.99

$

In Stock, Qty 6

0

3

Gravely 04904300

WLDM'T,PLY-V 4.75X1.004

$101.99

$

Usually ships in 4-12 days

0

4

Gravely 126406

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 08899300

MOWER BLADE TUNGSTEN CARBIDE
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

7

Gravely 04904200

WLDM'T PLY-DBLV 4.75,3.50X1.00

$87.99

$

In Stock, only 2 left!

0

8

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

9

Gravely 006724

BSHG-SLV .377X.503X.88
(Superseded to 05518100)

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 05919600

BLT-HEX .38-16X3.00 PL GR5
(Superseded to 05958300)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 004903900

Pulley-Right

$

$

Not available

12

Gravely 05975400

BLT-HEX .50-13X5.00 GR8 YWZC

$6.49

$

In Stock, Qty 10

0

13

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 12

0

15

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

16

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$273.99

$

In Stock, Qty 8

0

17

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

19

Gravely 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$48.99

$

In Stock, only 3 left!

0

20

Gravely 038714

ROD,IDLER
(Superseded to 08876000)

$

$

Not available

21

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

22

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

23

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

24

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

25

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

26

Gravely 180192

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

27

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

28

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

29

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

30

Gravely 07309200

IDLER-V 3X.38

$38.99

$

In Stock, only 2 left!

0

31

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

32

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

33

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

34

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

37

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 038713

BRKT,BELT TENSIONER
(Superseded to 08928800)

$

$

Not available
