888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 010000 & Above) Mower Frame Parts Diagram

50" Deck for Pro-Walk 150 Mower

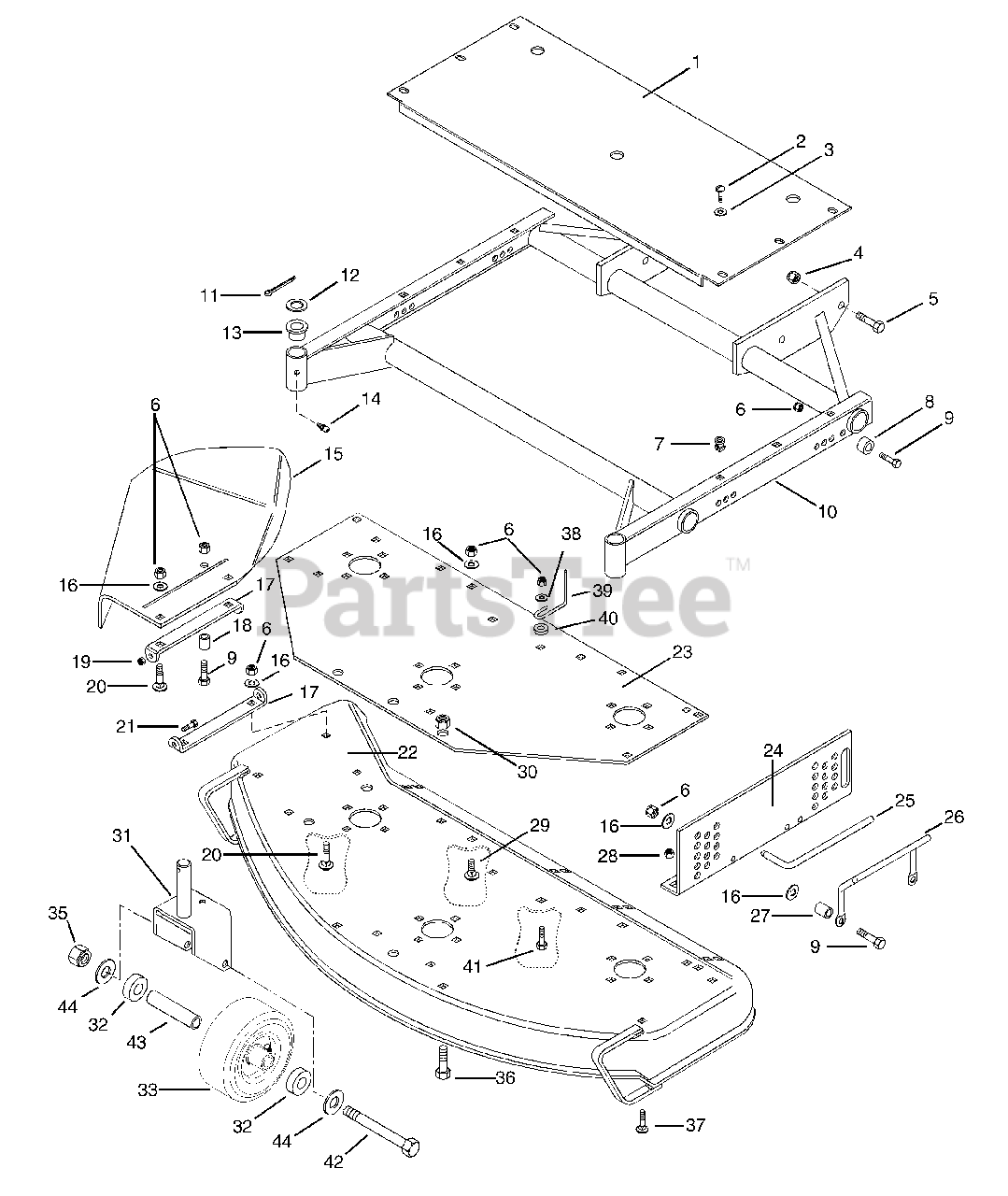

Mower Frame Parts Diagram

  • Title

1

Gravely 038573

CVR,BELT 50"PRO MWR
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

6

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 16

0

10

Gravely 04908053

WMT, MOWER FRAME 50"

$205.99

$

Usually ships in 4-12 days

0

11

Gravely 103409

PIN-CTR .18X1.50 EXTPRSQCT YZ
(Superseded to 06712800)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

13

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

15

Gravely 038675

SHIELD, 50" SAFETY - ORANGE

$

$

Not available

16

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 045641

BRKT,CHUTE
(Superseded to 08827653)

$

$

Not available

18

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.49

$

In Stock, Qty 17

0

19

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

20

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 052066

DECK, 50" W/ DECALS
(Superseded to 58810100)

$791.99

$

Usually ships in 4-12 days

0

23

Gravely 052760

PLT,SUPPORT
(Superseded to 08850153)

$224.99

$

In Stock, only 1 left!

0

24

Gravely 049343

BRKT,MWR SIDE SPRT L.H.
(Superseded to 08836200)

$126.99

$

Usually ships in 4-12 days

0

Gravely 049342

BRKT,MWR SIDE SPRT R.H.
(Superseded to 08836100)

$125.99

$

Usually ships in 4-12 days

0

25

Gravely 038514

PIN,MOWER LOCKING
(Superseded to 08875900)

$19.99

$

Usually ships in 4-12 days

0

26

Gravely 044507

HANDLE
(Superseded to 08878000)

$61.99

$

Usually ships in 4-12 days

0

27

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

28

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

29

Gravely 126227

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

30

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 09094053

WELDMENT, CASTER FORK

$257.99

$

Usually ships in 4-12 days

0

32

Gravely 03634600

SPACER .755X1.250X.370

$8.49

$

In Stock, only 2 left!

0

33

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$119.99

$

Usually ships in 4-12 days

0

34

Gravely 011193

BRG-BALL .752X1.50X.50
(Superseded to 05408900)

$20.99

$

In Stock, only 3 left!

0

35

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

36

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

37

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06413000

WSHR-FL-STL .406X1.000X.188 PL
(Superseded to 06444000)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 08874000

BELT FINGER, PRO-150 DECKS

$

$

Not available

40

Gravely 042989

BSHG-SLV .383X.50X.165
(Superseded to 05526700)

$

$

Not available

41

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 15

0

42

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

43

Gravely 09081500

BEARING .750 X .532 X 3.97

$42.99

$

Usually ships in 4-12 days

0

44

Gravely 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 9

0

Gravely 126402

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

Note: N/S

$2.99

$

In Stock, Qty 20+

0
