888301 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 000101 - 009999) Mower Drive Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

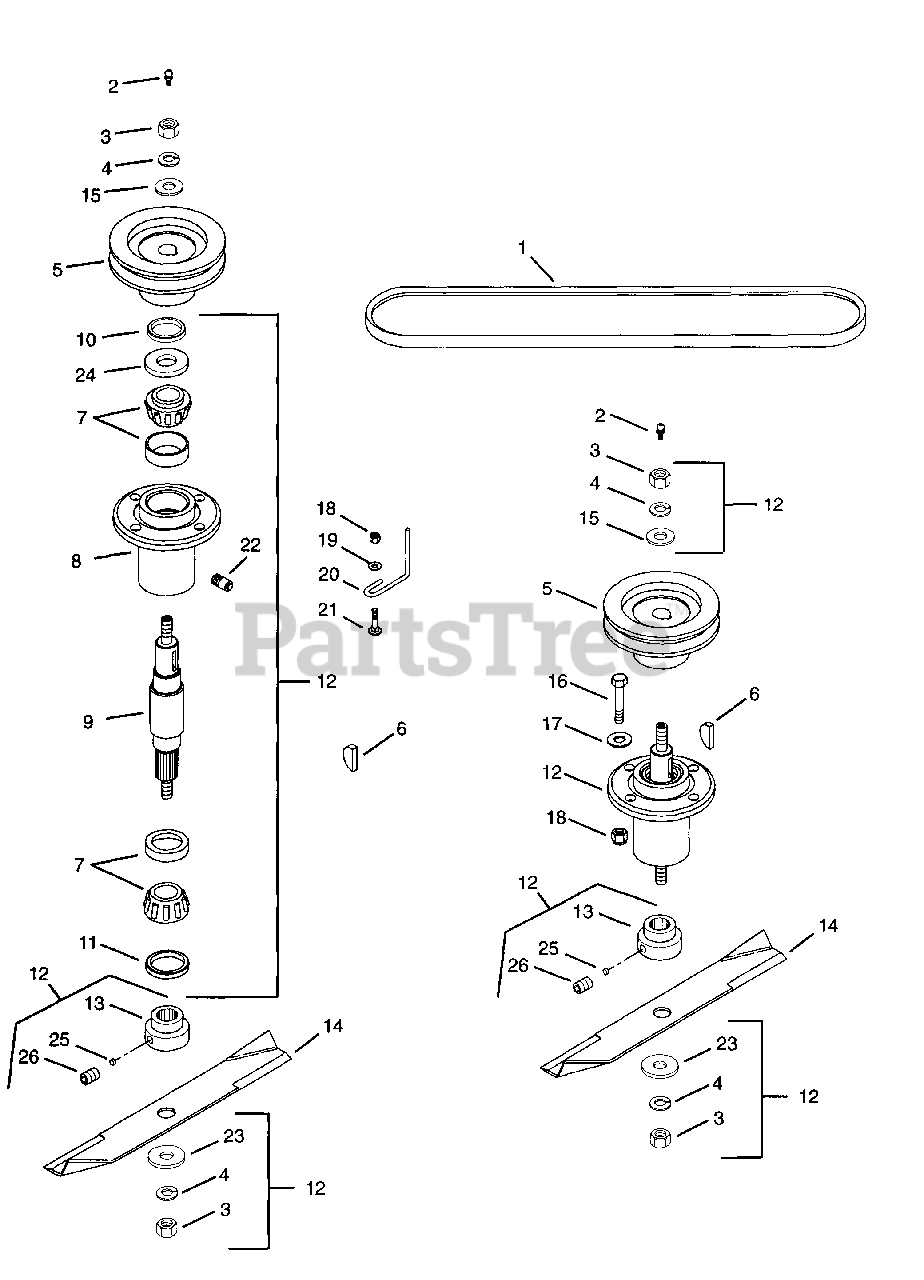

Mower Drive Parts Diagram

  • Title

1

Gravely 07227800

OBSOLETE
(Superseded to 07238600)

$69.99

$

In Stock, only 1 left!

0

2

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

3

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

Note: (Model 047)

$2.99

$

In Stock, only 1 left!

0

Gravely 06535600

NUT-HEX .62-11 YWZC

Note: (Model 301)

$2.99

$

In Stock, only 3 left!

0

4

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0

5

Gravely 08895500

SHEAVE

$

$

Not available

6

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

7

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

8

Gravely 08894500

BEARING HOUSING

$

$

Not available

9

Gravely 08898500

SPINDLE SHAFT
(Superseded to 58802900)

$128.99

$

In Stock, Qty 10

0

10

Gravely 039971

SEAL 1.987 X1.500 X.313
(Superseded to 05611400)

$16.99

$

In Stock, only 4 left!

0

11

Gravely 05613000

SEAL 1.987X1.375X.313

$17.99

$

In Stock, Qty 13

0

12

Gravely 58802400

SERVICE KIT REVIEW L2084 LETT
(Superseded to 58803600)

$273.99

$

In Stock, Qty 8

0

13

Gravely 08886500

HUB

$65.99

$

Usually ships in 4-12 days

0

14

Gravely 042124

BLD,36"MOWER
(Superseded to 08816600)

Note: (Model 047)

$20.99

$

Usually ships in 4-12 days

0

Gravely 08882600

BLADE,SAND,36"ROTARY 2-SPNDL

Note: (Model 301)

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 06427400

WSHR-FL-STL .687X1.312X.15 YWZ

$2.99

$

In Stock, Qty 7

0

16

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (Model 047)

$1.99

$

In Stock, Qty 17

0

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (Model 301)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (Model 047)

$0.99

$

In Stock, Qty 20+

0

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Model 301)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (Model 047)

$1.49

$

In Stock, Qty 20+

0

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (Model 301)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (Model 407)

$1.49

$

In Stock, Qty 20+

0

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

Note: (Model 301)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 08874000

BELT FINGER, PRO-150 DECKS

$

$

Not available

21

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

25

Gravely 03191400

PLUG

$7.49

$

Usually ships in 4-12 days

0

26

Gravely 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.99

$

Usually ships in 4-12 days

0
