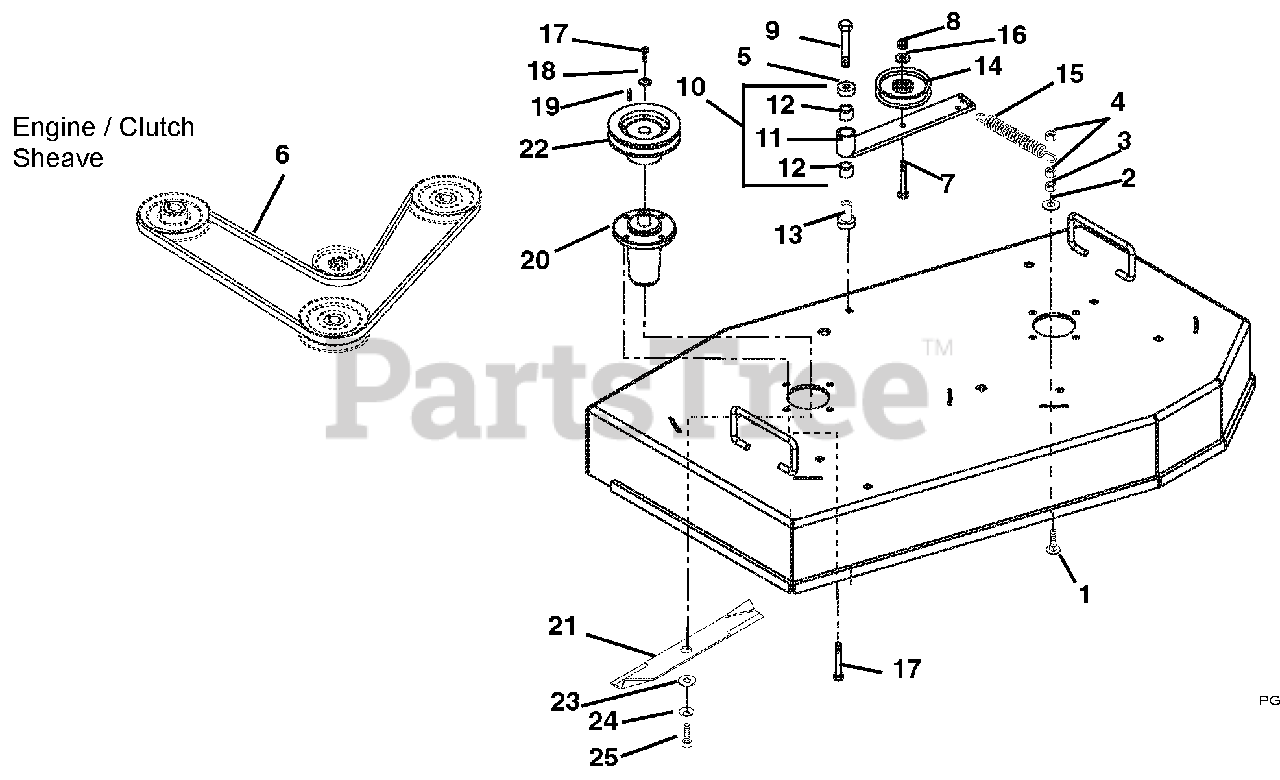

888305 - Ariens 32" Rear-Discharge Deck (SN: 000101 & Above) Belt, Idlers and Blades Parts Diagram

32" Rear-Discharge Deck

Belt, Idlers and Blades Parts Diagram

  • Title

1

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

3

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 20+

0

6

Ariens 07240000

V-BELT, HB-WRAPPED

Note: (888305)

$85.99

$

In Stock, only 4 left!

0

6

Ariens 07240100

V-BELT, HB-WRAPPED

Note: (888306)

$79.99

$

In Stock, only 1 left!

0

7

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, Qty 11

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

10

Ariens 09286500

ASSEMBLY - IDLER PIVOT ARM

Note: (Contains Items 11 & 12)

$164.99

$

Usually ships in 4-12 days

0

11

Ariens 09286451

WMT - IDLER PIVOT ARM

$170.99

$

In Stock, only 1 left!

0

12

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 13

0

13

Ariens 07000031

BEARING, PEDESTAL

$79.99

$

In Stock, Qty 7

0

14

Ariens 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$79.99

$

In Stock, Qty 17

0

15

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 15

0

16

Ariens 00440700

SEAL, IDLER BEARING

$77.99

$

In Stock, Qty 7

0

17

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 19

0

20

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$239.99

$

In Stock, Qty 8

0

21

Ariens 04936000

BLADE, 32" (16.25)

Note: (16.25) (888305)

$28.99

$

Usually ships in 4-12 days

0

21

Ariens 04905300

BLADE, 36" SAND, TUNGSTEN
(Superseded to 08882600)

Note: (888306)

$22.99

$

Usually ships in 4-12 days

0

22

Ariens 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

$113.99

$

In Stock, Qty 5

0

23

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, Qty 15

0

24

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

25

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0
