888308 - Ariens 48" Side-Discharge Deck (SN: 000101 & Above) Deck and Mower Frame Parts Diagram

48" Side-Discharge Deck

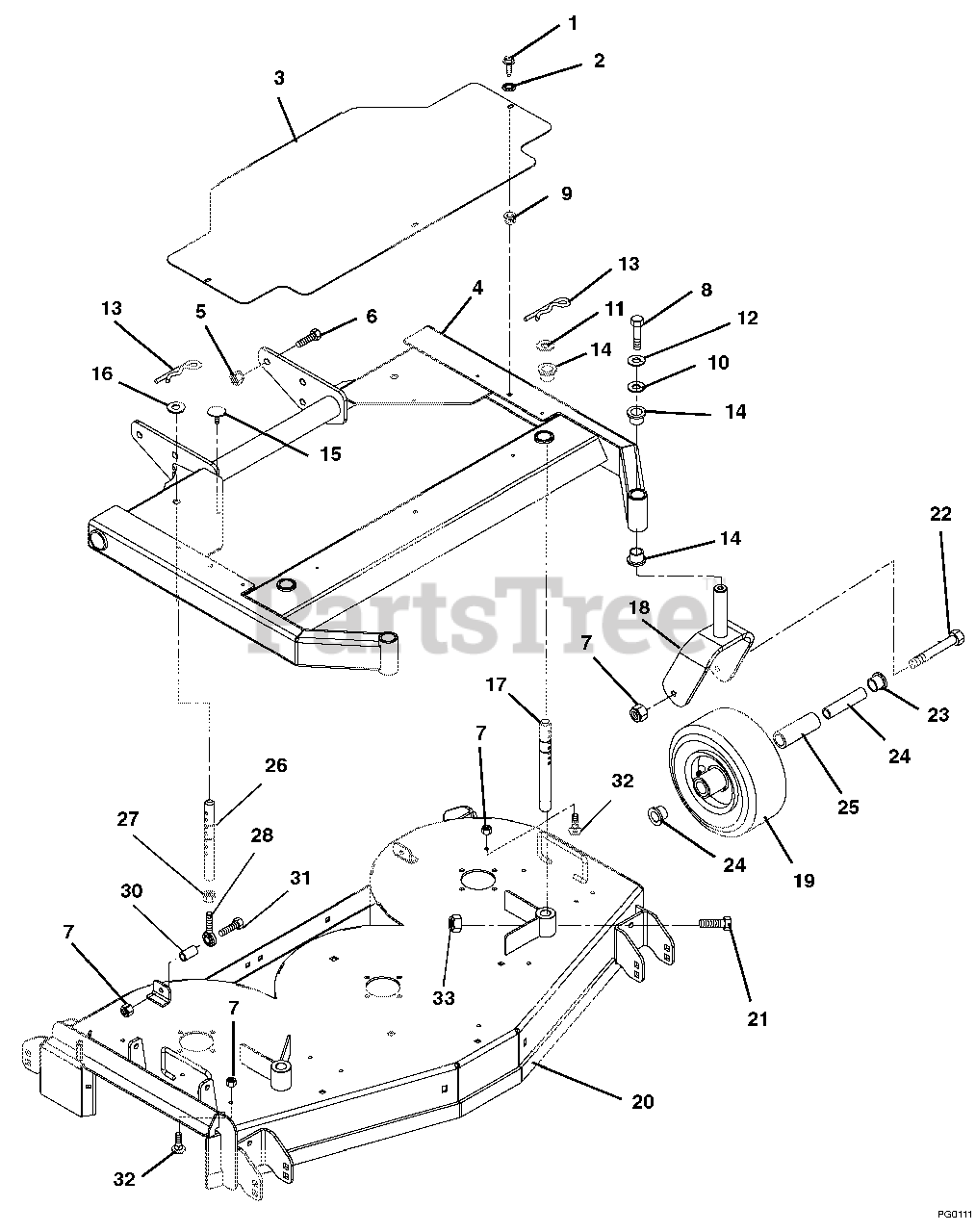

Deck and Mower Frame Parts Diagram

  • Title

1

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

3

Ariens 04921153

COVER- BELT PRO 48 FLOATING

$

$

Not available

4

Ariens 04921253

WMT-MOWER FRAME- 48" FLOAT

$

$

Not available

5

Ariens 06540700

@NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, Qty 14

0

6

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

9

Ariens 07538100

GRMT,PLASTIC

$1.49

$

In Stock, Qty 11

0

10

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

13

Ariens 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

15

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 2 left!

0

16

Ariens 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 2 left!

0

17

Ariens 04920900

ROD- FRONT HEIGHT ADJUSTMENT

$85.99

$

Usually ships in 4-12 days

0

18

Ariens 04917053

WMT - CASTER FORK

$148.99

$

Usually ships in 4-12 days

0

19

Ariens 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

20

Ariens 58804700

KIT-48" FL MOWER DECK W/DECALS

$

$

Not available

21

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

23

Ariens 07000014

RTNR-BEARING-PRO

$39.99

$

Usually ships in 4-12 days

0

24

Ariens 04916900

BEARING .625 X .380 X 4.08

$71.99

$

Usually ships in 4-12 days

0

25

Ariens 05400003

BEARING, ROLLER--PRO

$22.99

$

In Stock, only 4 left!

0

26

Ariens 04921000

ROD- REAR HEIGHT ADJUSTMENT

$103.99

$

Usually ships in 4-12 days

0

27

Ariens 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

28

Ariens 051425

ROD END, 3/8 RH
(Superseded to 08790600)

$59.99

$

Usually ships in 4-12 days

0

30

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

31

Ariens 09245353

ANCHOR, SPRING (RED)

$40.99

$

Usually ships in 4-12 days

0

32

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

33

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0
