889015 - Gravely Pro-Master Series Grass Bagger for PM Gear (SN: 000101 & Above) BLOWER Parts Diagram

Pro-Master Series Grass Bagger for PM Gear

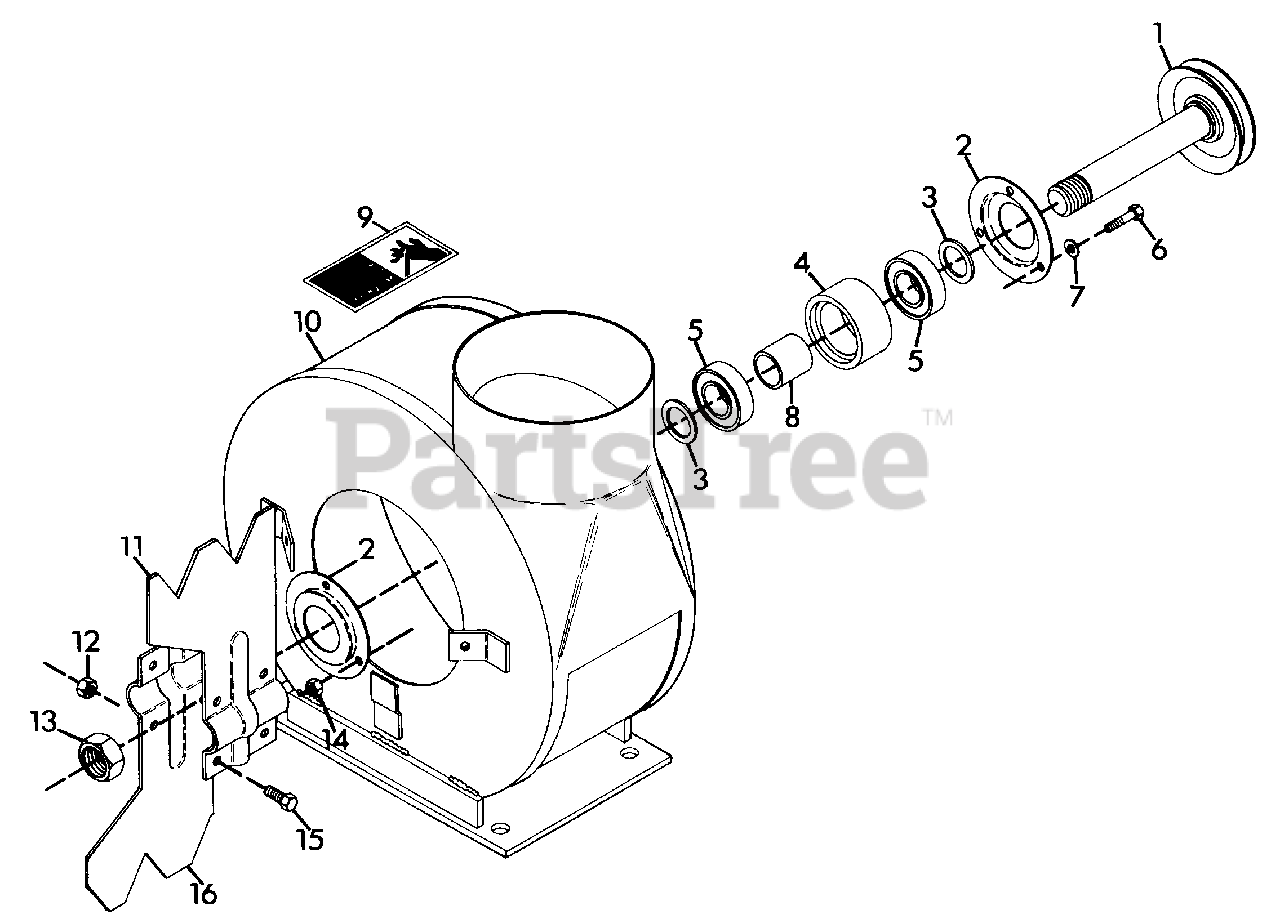

BLOWER Parts Diagram

  • Title

1

Gravely 039027

SPINDLE WELDMENT
(Superseded to 03422100)

$372.99

$

Usually ships in 4-12 days

0

2

Gravely 036874

BEARING FLANGE
(Superseded to 03185900)

$23.99

$

In Stock, only 1 left!

0

3

Gravely 039022

WSHR-FL-STL 1.031X1.625X.188
(Superseded to 06400025)

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 039025

HOUSING
(Superseded to 03421800)

$206.99

$

In Stock, only 1 left!

0

5

Gravely 039023

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$20.99

$

In Stock, Qty 20+

0

6

Gravely 180044

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$3.49

$

In Stock, only 3 left!

0

7

Gravely 039026

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 039024

SPACER 1.010X1.250X.924
(Superseded to 03421900)

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$

$

Not available

10

Gravely 042551

G-BLOWER ASSEMBLY-BLACK
(Superseded to 58700400)

$

$

Not available

11

Gravely 039020

FAN BLADE
(Superseded to 03021500)

$48.99

$

Usually ships in 4-12 days

0

12

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 039019

NUT-LK-JAM 1.0-14 PL
(Superseded to 06512000)

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 039018

FAN BLADE
(Superseded to 03422000)

$48.99

$

Usually ships in 4-12 days

0
