889016 - Gravely 60" Deck for Gear Drive Pro-Master Mower (SN: 000101 & Above) GEAR BOX Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

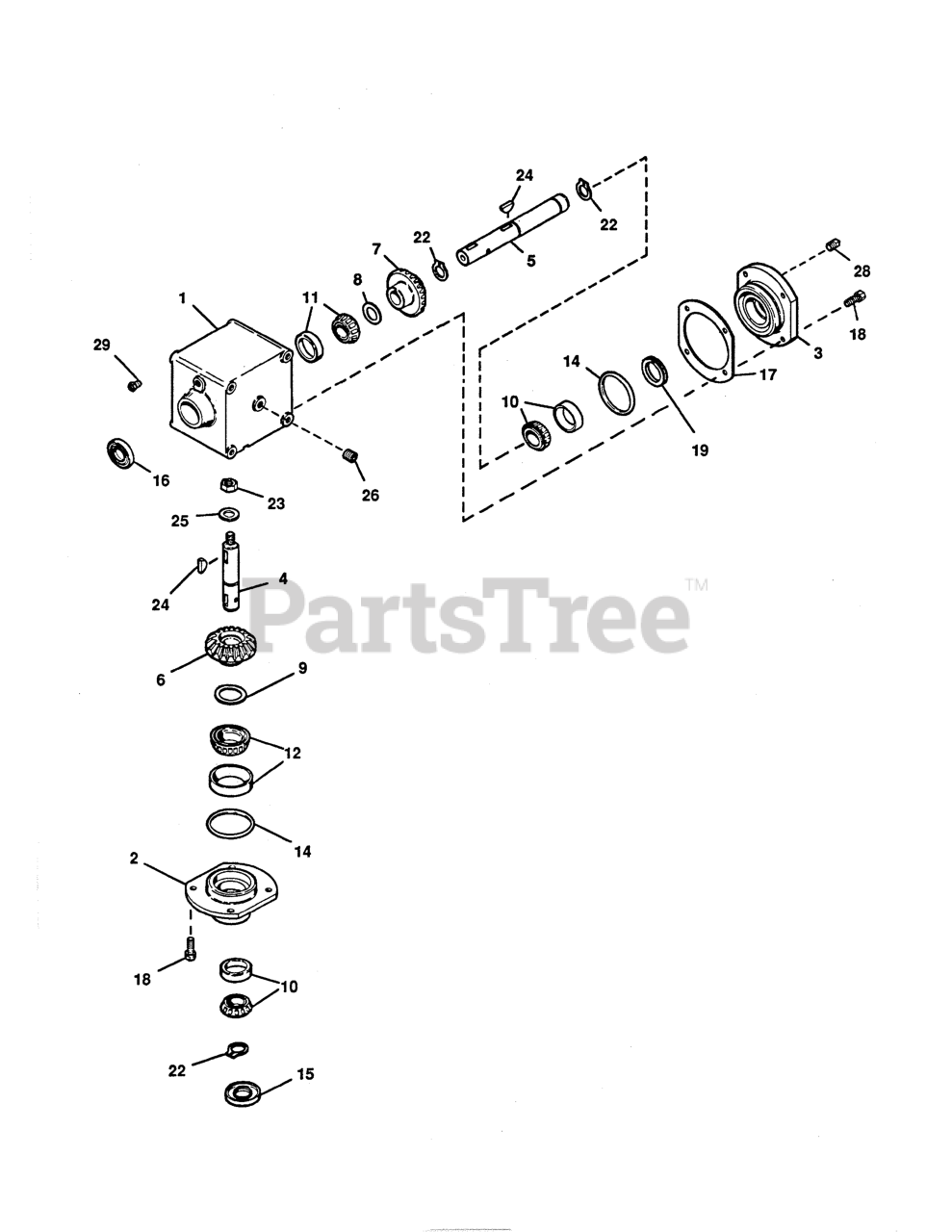

GEAR BOX Parts Diagram

  • Title

1

Gravely 770076

Housing, Right Angle Drive

$

$

Not available

2

Gravely 786104A

Cap, Retainer

$

$

Not available

3

Gravely 786106

Cap, Retainer

$

$

Not available

4

Gravely 776281

Shaft, Input (5.38" long)

$

$

Not available

5

Gravely 776280

Shaft, Output (7.656" long)

$

$

Not available

6

Gravely 778167

Gear, Bevel(25 teeth)

$

$

Not available

7

Gravely 778171

Gear, Bevel(26 teeth)

$

$

Not available

8

Gravely 780131

SHIM(1-1/2" O.D. X 1-1/64" I.D.X.002 THICK)(USE AS REQUIRED)

$

$

Not available

9

Gravely 780138

SHIM(2.000" O.D.X1.531"I.D.X.002 THICK)(USE AS REQUIRED)

$

$

Not available

10

Gravely 780132

Bearing & Cup Assembly.

Note: (This assembly may have a shim washer included. The shim washer is not required at this location.)

$

$

Not available

11

Gravely 780132

Bearing & Cup Assembly.

Note: (This is a factory sized assembly and may or may not include Ref. No. 8 shim washer. If Ref. No. 8 shim washer is supplied, it MUST be used in this location. All old shim washers MUST be discarded.)

$

$

Not available

12

Gravely 780134

Bearing & Cup Assembly.

Note: (This is a factory sized assembly and may or may not include Ref. No. 9 shim washer. If Ref. No. 9 shim washer is included, it MUST be used in this location. All old shim washers MUST be discarded.)

$

$

Not available

14

Gravely 788063

"O" Ring

$

$

Not available

15

Gravely 788064

Seal, Oil

$

$

Not available

16

Gravely 788065

Seal, Oil

$

$

Not available

17

Gravely 780136

Shim, Cap Retainer

$

$

Not available

18

Gravely 792037

Screw, Hex Head, Sems, 5/16-18 x 1

$

$

Not available

19

Gravely 780137

Ring, Load

$

$

Not available

22

Gravely 792113

Ring, Retaining

$

$

Not available

23

Gravely 792110

Jam Nut, 3/4-16

$

$

Not available

24

Gravely 792114

Key, Woodruff

$

$

Not available

25

Gravely 792115

Washer, Flat 1

$

$

Not available

26

Gravely 792116

Plug, Pipe, /14-18

$

$

Not available

28

Gravely 792039

Plug, Pipe, 1/8-27

$

$

Not available

29

Gravely 792118

Washer, Flat 1

$

$

Not available
