889018 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 000101 & Above) MOWER FRAME Parts Diagram

60" Deck for Pro-Master 300 Mower

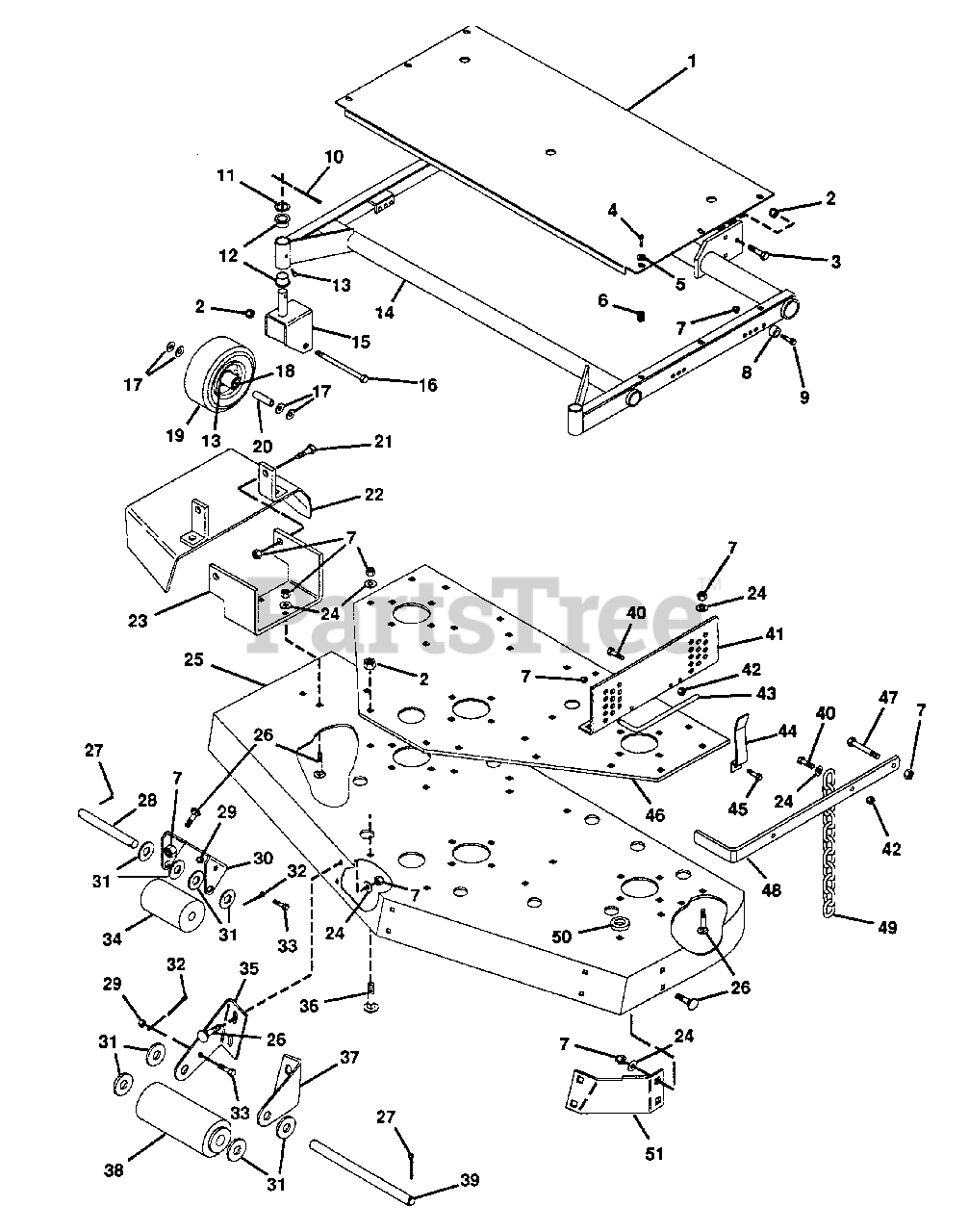

MOWER FRAME Parts Diagram

  • Title

1

Gravely 047551

CVR,BELT 60"PRO MWR
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 180177

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

6

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 11

0

7

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 021076

BUSH.,S.391X.621X.676 ST
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

9

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

10

Gravely 137253

PIN-COTR .188X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

12

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

13

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

14

Gravely 047126

WLDMT,MOWER FRAME
(Superseded to 09020953)

$

$

Not available

15

Gravely 045523

WELDMENT, CASTER FORK (RED)
(Superseded to 08969153)

$341.99

$

Usually ships in 4-12 days

0

16

Gravely 445608

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$2.99

$

In Stock, Qty 13

0

18

Gravely 037823

BRG-BALL .752X1.50X.50
(Superseded to 05408900)

$18.99

$

In Stock, Qty 7

0

19

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$108.99

$

In Stock, Qty 5

0

20

Gravely 011950

SPACER .532X.748X3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 035668

WELDMENT, DISCHARGE CHUTE
(Superseded to 09090300)

$

$

Not available

23

Gravely 045381

BRKT,DISCHARGE
(Superseded to 08968300)

$

$

Not available

24

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 045546

WLDMT,60"MOWER
(Superseded to 08969400)

$

$

Not available

26

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ

$

$

Not available

27

Gravely 179128

PIN-CTR .25X1.00 YWZC
(Superseded to 06713000)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 045211

ROD
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

29

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

30

Gravely 045210

BRKT., ROLLER (RED)
(Superseded to 08966853)

$

$

Not available

31

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 103422

PIN-CTR .25X2.00 YWZC
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

34

Gravely 015351

RLR,GAGE
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

35

Gravely 045568

BRKT,ROLLER L.H.
(Superseded to 08970153)

$51.99

$

Usually ships in 4-12 days

0

36

Gravely 126475

BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

37

Gravely 045567

BRKT,ROLLER R.H.
(Superseded to 08970000)

$34.99

$

Usually ships in 4-12 days

0

38

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$37.99

$

In Stock, only 3 left!

0

39

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$60.99

$

In Stock, only 2 left!

0

40

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

41

Gravely 038516

BRKT,MOWER SUPPORT L.H.
(Superseded to 08927953)

$103.99

$

Usually ships in 4-12 days

0

41

Gravely 038515

BRKT,MOWER SUPPORT R.H.
(Superseded to 08927853)

$103.99

$

Usually ships in 4-12 days

0

42

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 038514

PIN,MOWER LOCKING
(Superseded to 08875900)

$17.99

$

In Stock, only 4 left!

0

44

Gravely 041201

SPRG,PIN
(Superseded to 08876100)

$

$

Not available

45

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

46

Gravely 040536

PLT,SUPPORT
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

47

Gravely 034402

BLT-HEX .38-16X2.0 GR5 FTD YWZ
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

48

Gravely 035684

BAR,LIFT
(Superseded to 08923700)

$

$

Not available

49

Gravely 038620

CHAIN,HEIGHTH ADJ
(Superseded to 08867400)

$

$

Not available

50

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 10

0

51

Gravely 031354

BFL,FRONT
(Superseded to 08905253)

$

$

Not available

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

Gravely 038769

WIDTH OF CUT DECAL
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

Gravely 040190

DECAL,LUBE
(Superseded to 20666100)

$

$

Not available

Gravely 043003

DECAL,GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available
