889031 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 300 Mower

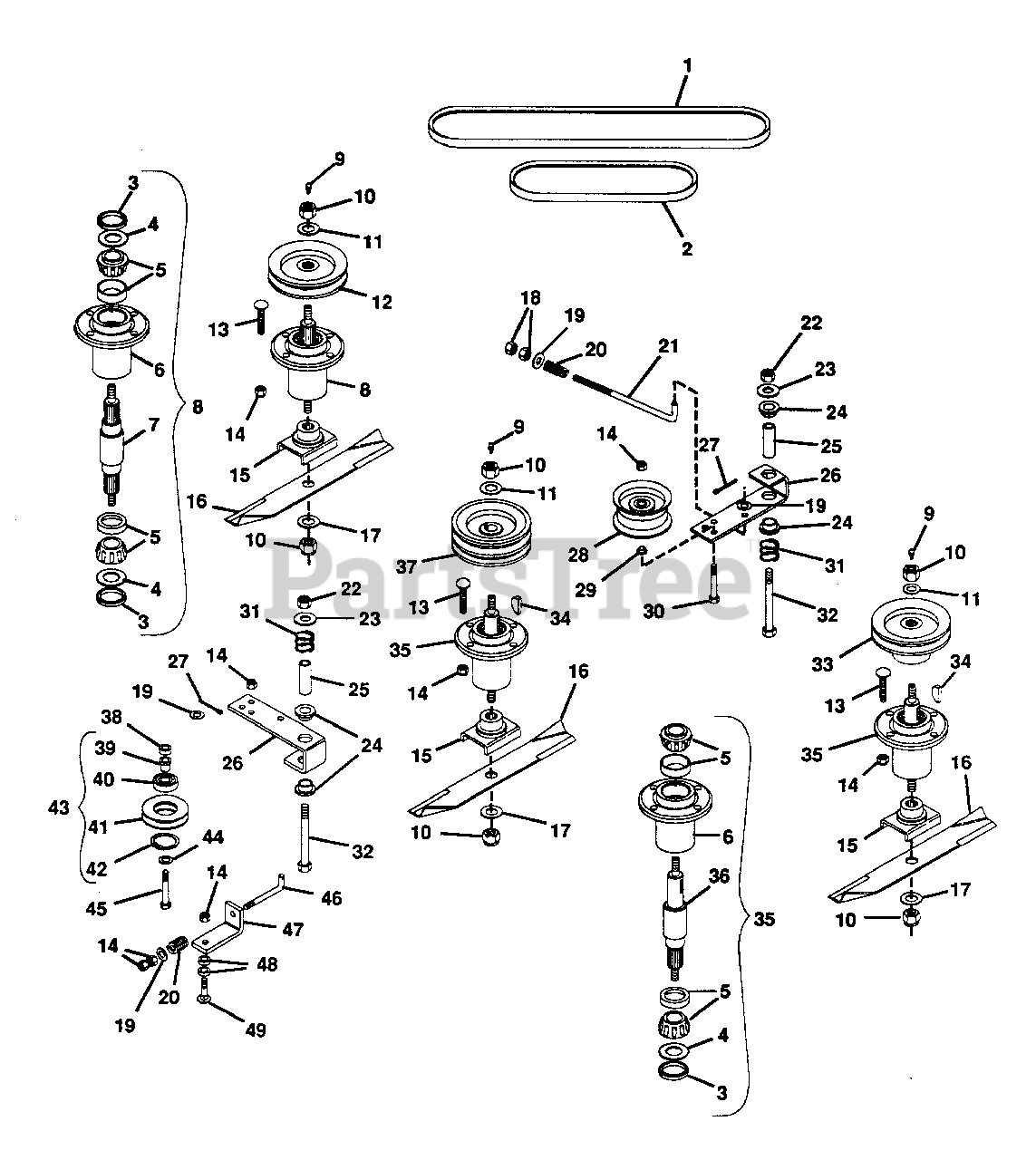

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 038744

BELT, V
(Superseded to 07220200)

$53.99

$

Usually ships in 4-12 days

0

2

Gravely 042206

BELT, V
(Superseded to 07221000)

$34.99

$

In Stock, Qty 6

0

3

Gravely 021211

SEAL, STEEL(IN 34605)
(Superseded to 08722600)

Note: (IN 34605)

$16.99

$

In Stock, only 2 left!

0

3

Gravely 021211

SEAL, STEEL(IN 21306)
(Superseded to 08722600)

Note: (IN 21306)

$16.99

$

In Stock, only 2 left!

0

4

Gravely 020743

WASHER, FLAT .975X1.970X.030(IN 34605)
(Superseded to 06426900)

Note: (IN 34605)

$6.49

$

In Stock, Qty 5

0

4

Gravely 020743

WASHER, FLAT .975X1.970X.030
(Superseded to 06426900)

Note: (Used Only On Model(s): 21306).

$6.49

$

In Stock, Qty 5

0

5

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

6

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$137.99

$

Usually ships in 4-12 days

0

7

Gravely 021216

SHAFT, SPINDLE
(Superseded to 58802800)

$87.99

$

In Stock, Qty 6

0

8

Gravely 021306

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$273.99

$

In Stock, only 4 left!

0

9

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

10

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

12

Gravely 031359

PULLEY
(Superseded to 08895100)

$171.99

$

Usually ships in 4-12 days

0

13

Gravely 126406

BOLT, 3/8-16X1.375 RD HD SQ NK
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$158.99

$

Usually ships in 4-12 days

0

16

Gravely 025124

BLADE
(Superseded to 08904600)

$34.99

$

In Stock, only 1 left!

0

17

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 011779

SPRING, COMP. 1X.78
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

21

Gravely 042196

ROD, IDLER
(Superseded to 08877200)

$

$

Not available

22

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

23

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

24

Gravely 010174

BUSHING, NYLON .76X1X.6 FLG.
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

25

Gravely 034119

SPACER
(Superseded to 08820500)

$19.99

$

In Stock, Qty 6

0

26

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

27

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

28

Gravely 034286

PULLEY, IDLER
(Superseded to 07327800)

$91.99

$

In Stock, Qty 20+

0

29

Gravely 024815

BUSHING
(Superseded to 05515800)

$9.99

$

In Stock, Qty 6

0

30

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

31

Gravely 020444

SPRING, COMP. 1X.80X36 LB/N
(Superseded to 08329100)

$14.99

$

In Stock, only 4 left!

0

32

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

33

Gravely 042195

SHEAVE, SPINDLE
(Superseded to 08817200)

$

$

Not available

34

Gravely 124553

KEY, WOODRUFF .250X1 HARD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0

35

Gravely 034605

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$273.99

$

In Stock, only 4 left!

0

36

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$128.99

$

In Stock, only 4 left!

0

37

Gravely 034282

SHEAVE, SPINDLE
(Superseded to 08946700)

$266.99

$

Usually ships in 4-12 days

0

38

Gravely 042197

SPACER, IDLER .406X.625X.48
(Superseded to 08836500)

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 038897

BUSHING, IDLER SHEAVE
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

40

Gravely 038898

BEARING, BALL
(Superseded to 05425100)

$

$

Not available

41

Gravely 038896

SHEAVE, IDLER
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

42

Gravely 018960

RING, RETAINING
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 038900

ASSEMBLY, IDLER SHEAVE
(Superseded to 08930300)

$247.99

$

Usually ships in 4-12 days

0

44

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

45

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

46

Gravely 038714

ROD, IDLER
(Superseded to 08876000)

$

$

Not available

47

Gravely 034287

BRACKET, BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

48

Gravely 034383

SPACER
(Superseded to 08905800)

$

$

Not available

49

Gravely 126416

BOLT, 3/8-16X1.75 RD HD SQ NK
(Superseded to 06200417)

$4.99

$

Usually ships in 4-12 days

0
