889036 - Gravely 72" Deck for Pro-Master 400 Mower (SN: 000101 & Above) 72" Gauge Wheels, Roller And Height Adjustments Parts Diagram

72" Deck for Pro-Master 400 Mower

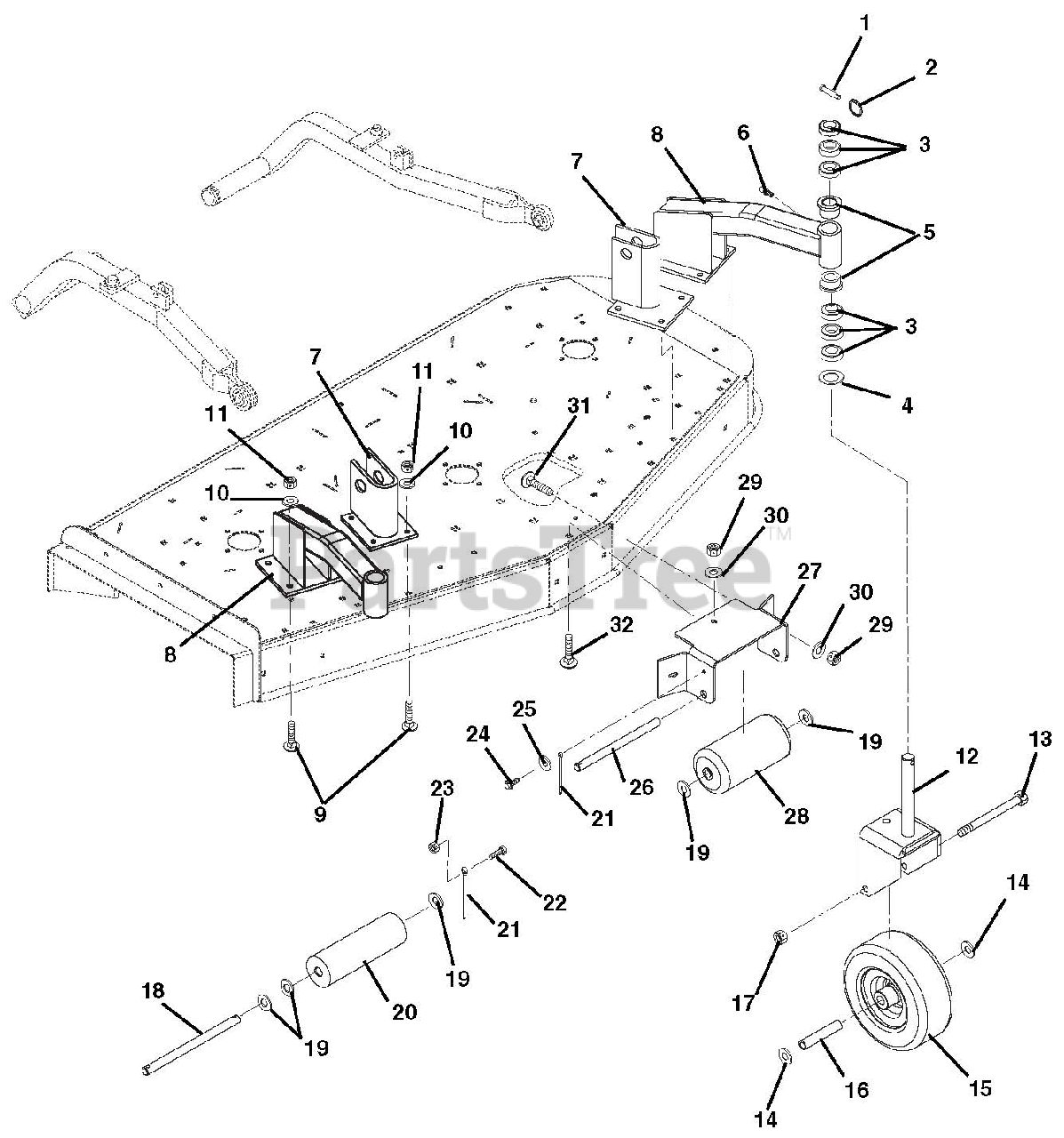

72" Gauge Wheels, Roller And Height Adjustments Parts Diagram

  • Title

1

Gravely 047197

PIN-CLEV .31 X 2.62 GR5 YWZC
(Superseded to 06810900)

$

$

Not available

2

Gravely 05718100

RG-RTNG-EXT 1.062 X 1.25 YWZC

$7.49

$

Usually ships in 4-12 days

0

3

Gravely 045138

BSHG-SLV 1.04X1.75X.500 ST
(Superseded to 05519553)

$17.99

$

In Stock, only 3 left!

0

4

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 11

0

5

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

6

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

7

Gravely 09096653

WMT, LIFT ARM MOUNT

$

$

Not available

8

Gravely 04915153

WMT, CASTER WHEEL SUPPORT

$148.99

$

Usually ships in 4-12 days

0

9

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

10

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 09095753

WLDMT, CASTER FORK

$

$

Not available

13

Gravely 05961800

BLT-HEX .50-13X6.00 GR5 YWZC

$

$

Not available

14

Gravely 06413300

WSHR-HDND-THRST .760X1.25X.094

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 07151600

TIRE, 11X4.00

$113.99

$

In Stock, only 1 left!

0

16

Gravely 09095800

SPACER .532X.750X4.47

$

$

Not available

17

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

18

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$61.99

$

In Stock, only 1 left!

0

19

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$38.99

$

In Stock, only 2 left!

0

21

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

23

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

24

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

26

Gravely 09075300

PIN

$40.99

$

In Stock, only 2 left!

0

27

Gravely 09094953

BRACKET, ANTI SCALP ROLLER

$103.99

$

In Stock, only 1 left!

0

28

Gravely 09078100

ROLLER

$48.99

$

In Stock, Qty 6

0

29

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

32

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0
