889036 - Gravely 72" Deck for Pro-Master 400 Mower (SN: 000101 & Above) Mower Deck - Discharge Chute And Baffles Parts Diagram

72" Deck for Pro-Master 400 Mower

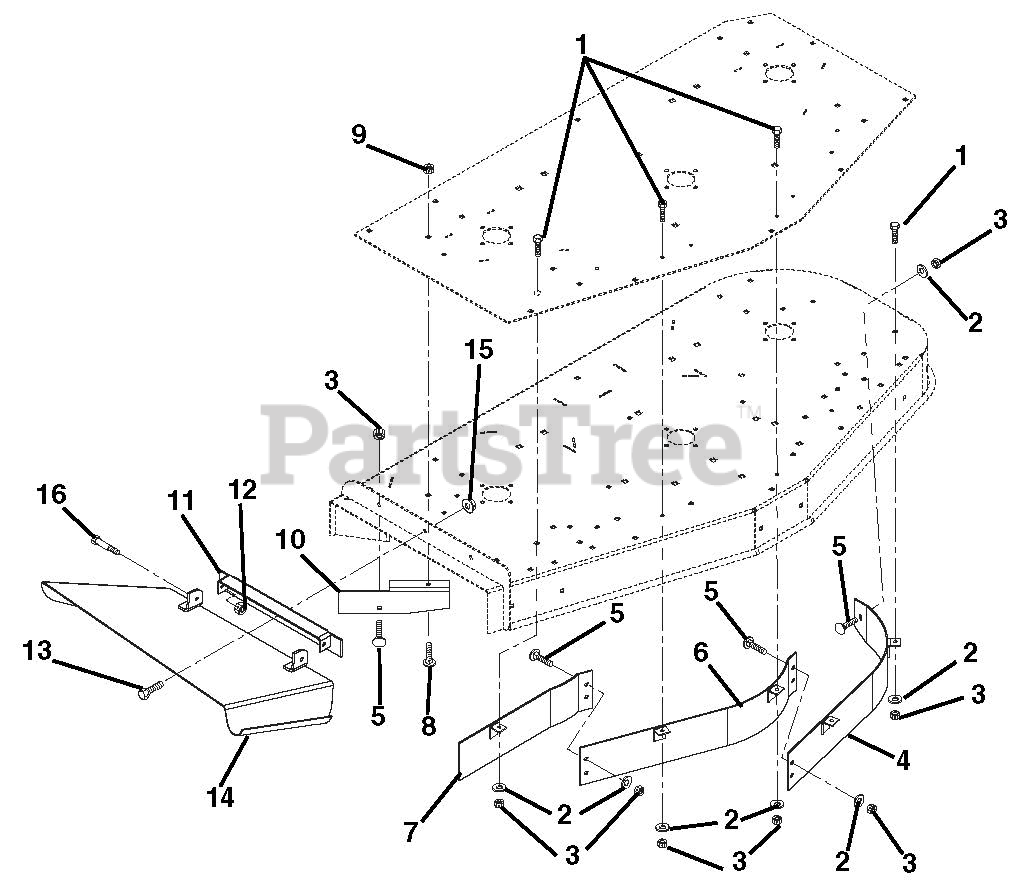

Mower Deck - Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

2

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09241651

BAFFLE - LEFT FRONT - 60"

Note: (034)

$112.99

$

Usually ships in 4-12 days

0

4

Gravely 09096451

BAFFLE - LEFT FRONT - 72"

Note: (035)

$96.99

$

Usually ships in 4-12 days

0

5

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 09241751

BAFFLE - CENTER FRONT - 60"

Note: (034)

$102.99

$

Usually ships in 4-12 days

0

6

Gravely 09096351

BAFFLE - CENTER FRONT - 72"

Note: (035)

$92.99

$

Usually ships in 4-12 days

0

7

Gravely 09241851

BAFFLE - RIGHT FRONT - 60"

Note: (034)

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 09096551

BAFFLE - RIGHT FRONT - 72"

Note: (035)

$89.99

$

Usually ships in 4-12 days

0

8

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

9

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 09238451

DEFLECTOR, 60" (BLACK)

Note: (034)

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 09096051

DEFLECTOR, 72"

Note: (035)

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 09238353

WLDMT. DISCH. CHUTE BRKT (RED)
(Superseded to 00253253)

$92.99

$

Usually ships in 4-12 days

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09250653

WMT, DISCHARGE CHUTE 60"
(Superseded to 00198253)

Note: (034)

$233.99

$

In Stock, only 1 left!

0

14

Gravely 09096953

WLDMT, DISCHARGE CHUTE 72"

Note: (035)

$268.99

$

In Stock, only 1 left!

0

15

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0
