889037 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 000101 - 010999) Mower Spindles Parts Diagram

60" Deck for Pro-Master 300 Mower

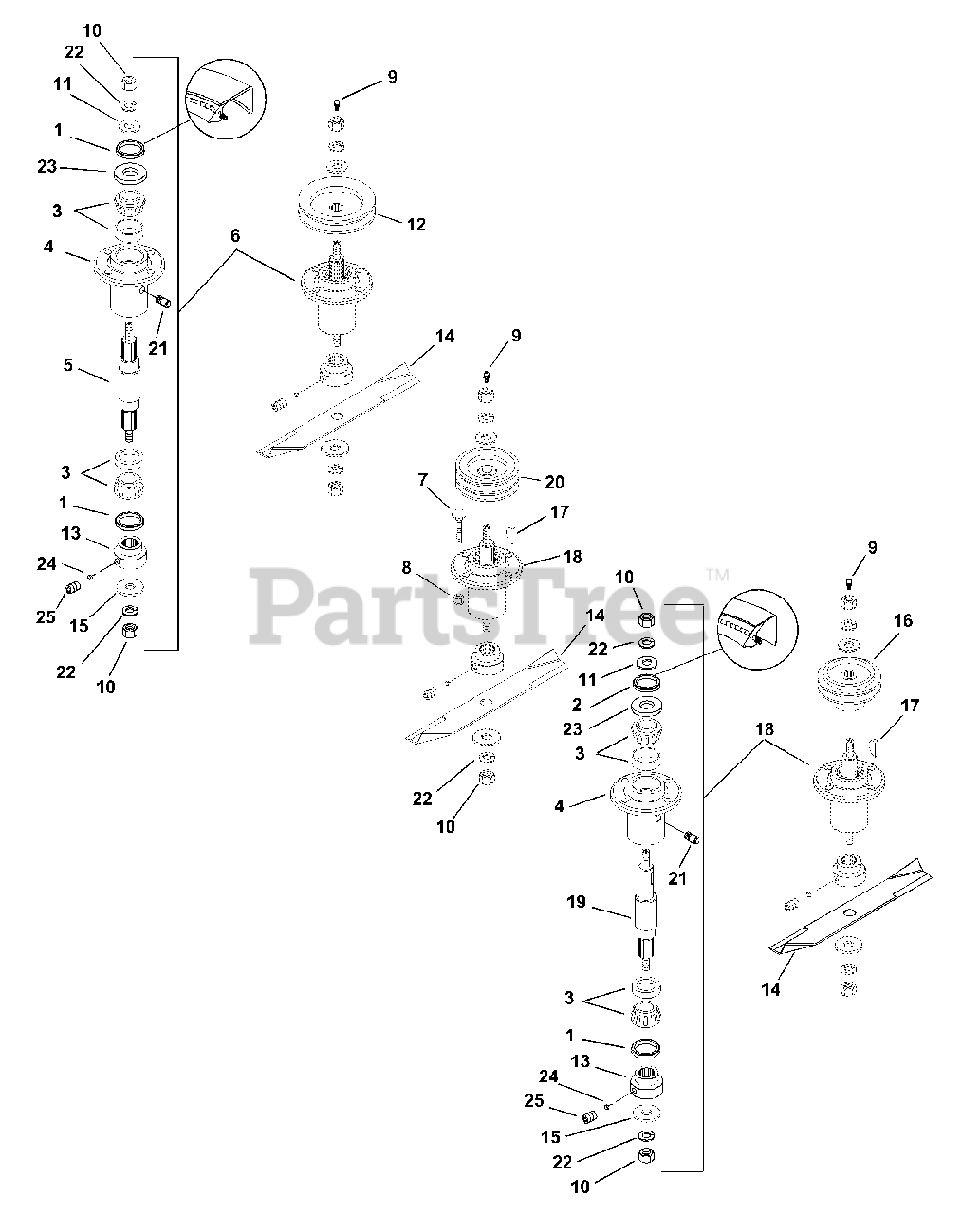

Mower Spindles Parts Diagram

  • Title

1

Gravely 05613000

SEAL 1.987X1.375X.313

$18.99

$

In Stock, only 2 left!

0

2

Gravely 05611400

SEAL 1.987 X1.500 X.313

$17.99

$

In Stock, only 3 left!

0

3

Gravely 038199

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$30.99

$

In Stock, Qty 15

0

4

Gravely 08894500

BEARING HOUSING

$

$

Not available

5

Gravely 08898600

SPINDLE SHAFT
(Superseded to 58802800)

$91.99

$

In Stock, only 2 left!

0

6

Gravely 58802300

SERVICE KIT REVIEW L2084 LETT
(Superseded to 58803600)

$286.99

$

In Stock, Qty 7

0

7

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$5.49

$

In Stock, Qty 17

0

8

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$5.49

$

In Stock, Qty 11

0

10

Gravely 06535600

NUT-HEX .62-11 YWZC

$3.49

$

In Stock, only 3 left!

0

11

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$3.49

$

In Stock, Qty 6

0

12

Gravely 08895100

SHEAVE

$179.99

$

In Stock, only 1 left!

0

Gravely 08894900

SHEAVE
(Superseded to 58803500)

$

$

Not available

13

Gravely 08886500

HUB

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 08979651

BLD, 60" MWR
(Superseded to 08979600)

$36.99

$

In Stock, only 2 left!

0

Gravely 08779251

BLD, 50 INCH MOWER
(Superseded to 08779200)

$27.99

$

In Stock, only 2 left!

0

15

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$5.49

$

In Stock, Qty 20+

0

16

Gravely 08895800

SHEAVE

$233.99

$

Usually ships in 4-12 days

0

Gravely 08895000

SHEAVE
(Superseded to 08895500)

$

$

Not available

17

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$4.99

$

In Stock, Qty 9

0

18

Gravely 58802400

SERVICE KIT REVIEW L2084 LETT
(Superseded to 58803600)

$286.99

$

In Stock, Qty 7

0

19

Gravely 08898500

SPINDLE SHAFT
(Superseded to 58802900)

$134.99

$

In Stock, Qty 6

0

20

Gravely 08896100

SHEAVE

$318.99

$

In Stock, only 1 left!

0

Gravely 08896600

SHEAVE

$

$

Not available

21

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.99

$

In Stock, only 2 left!

0

23

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$4.99

$

In Stock, Qty 20+

0

24

Gravely 03191400

PLUG

$7.99

$

Usually ships in 4-12 days

0

25

Gravely 06005400

SCR-SET .25-20X.25 SKHCUPDL

$4.99

$

In Stock, only 1 left!

0
