889037 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 014000 & Above) 60" Mower Frame Parts Diagram

60" Deck for Pro-Master 300 Mower

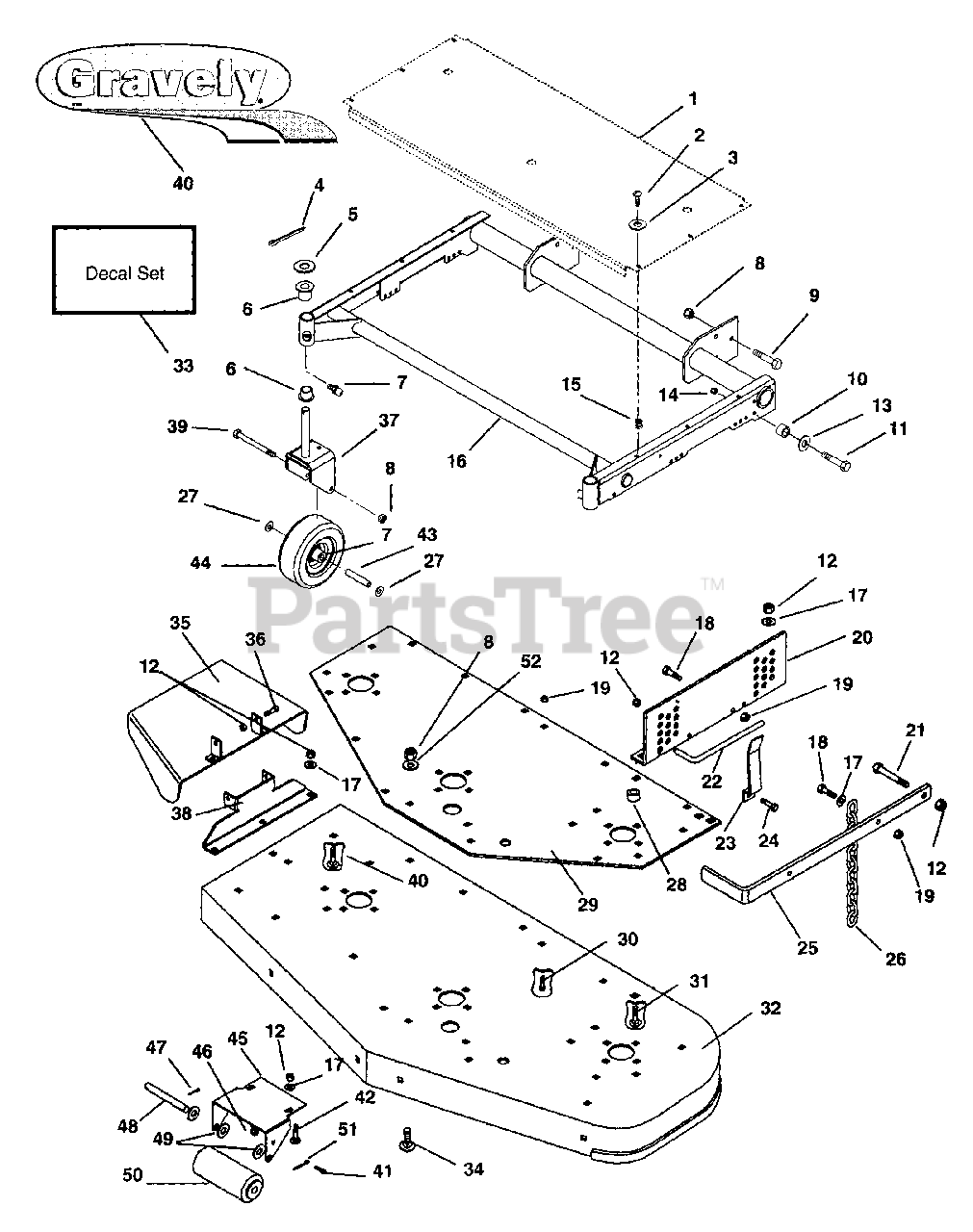

60" Mower Frame Parts Diagram

  • Title

1

Gravely 047551

CVR,BELT 60"PRO MWR
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06712800

PIN-CTR .18X1.50 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

5

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

6

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

7

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

8

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

10

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

11

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

14

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09093753

WELDMENT, FRAME 60"

$1162.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

20

Gravely 08927953

BRKT,MOWER SUPPORT L.H.

$105.99

$

Usually ships in 4-12 days

0

Gravely 08927853

BRKT,MOWER SUPPORT R.H.

$105.99

$

Usually ships in 4-12 days

0

21

Gravely 034402

BLT-HEX .38-16X2.0 GR5 FTD YWZ
(Superseded to 05942200)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 038514

PIN,MOWER LOCKING
(Superseded to 08875900)

$19.99

$

In Stock, only 1 left!

0

23

Gravely 041201

SPRG,PIN
(Superseded to 08876100)

$

$

Not available

24

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

25

Gravely 035684

BAR,LIFT
(Superseded to 08923700)

$

$

Not available

26

Gravely 038620

CHAIN,HEIGHTH ADJ
(Superseded to 08867400)

$

$

Not available

27

Gravely 06413300

WSHR-HDND-THRST .760X1.25X.094

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

29

Gravely 052841

PLT,60"SUPPORT
(Superseded to 09012900)

$

$

Not available

30

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

32

Gravely 052786

WLDMT,60"MWR
(Superseded to 09011500)

$1392.99

$

Usually ships in 4-12 days

0

33

Gravely 63611400

DECAL SET - DECK
(Superseded to 53610000)

$66.99

$

Usually ships in 4-12 days

0

34

Gravely 06224600

BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 052808

WLDMT,DISCHARGE CHUTE
(Superseded to 09012600)

$

$

Not available

36

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 09094053

WELDMENT, CASTER FORK

$257.99

$

Usually ships in 4-12 days

0

38

Gravely 049649

BRKT,DISCHARGE
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

39

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

40

Gravely 07735800

GRAVELY LOGO RH 17"
(Superseded to 69201900)

$

$

Not available

41

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

42

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 09081500

BEARING .750 X .532 X 3.97

$42.99

$

Usually ships in 4-12 days

0

44

Gravely 07147200

WHEEL ASSEMBLY 9.00 X 3.50
(Superseded to 58903200)

$290.99

$

Usually ships in 4-12 days

0

45

Gravely 052796

BRKT, GAGE ROLLER
(Superseded to 09012300)

$79.99

$

In Stock, only 2 left!

0

46

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

47

Gravely 06713000

PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

48

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$61.99

$

Usually ships in 4-12 days

0

49

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

50

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$38.99

$

In Stock, only 3 left!

0

51

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

52

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0
