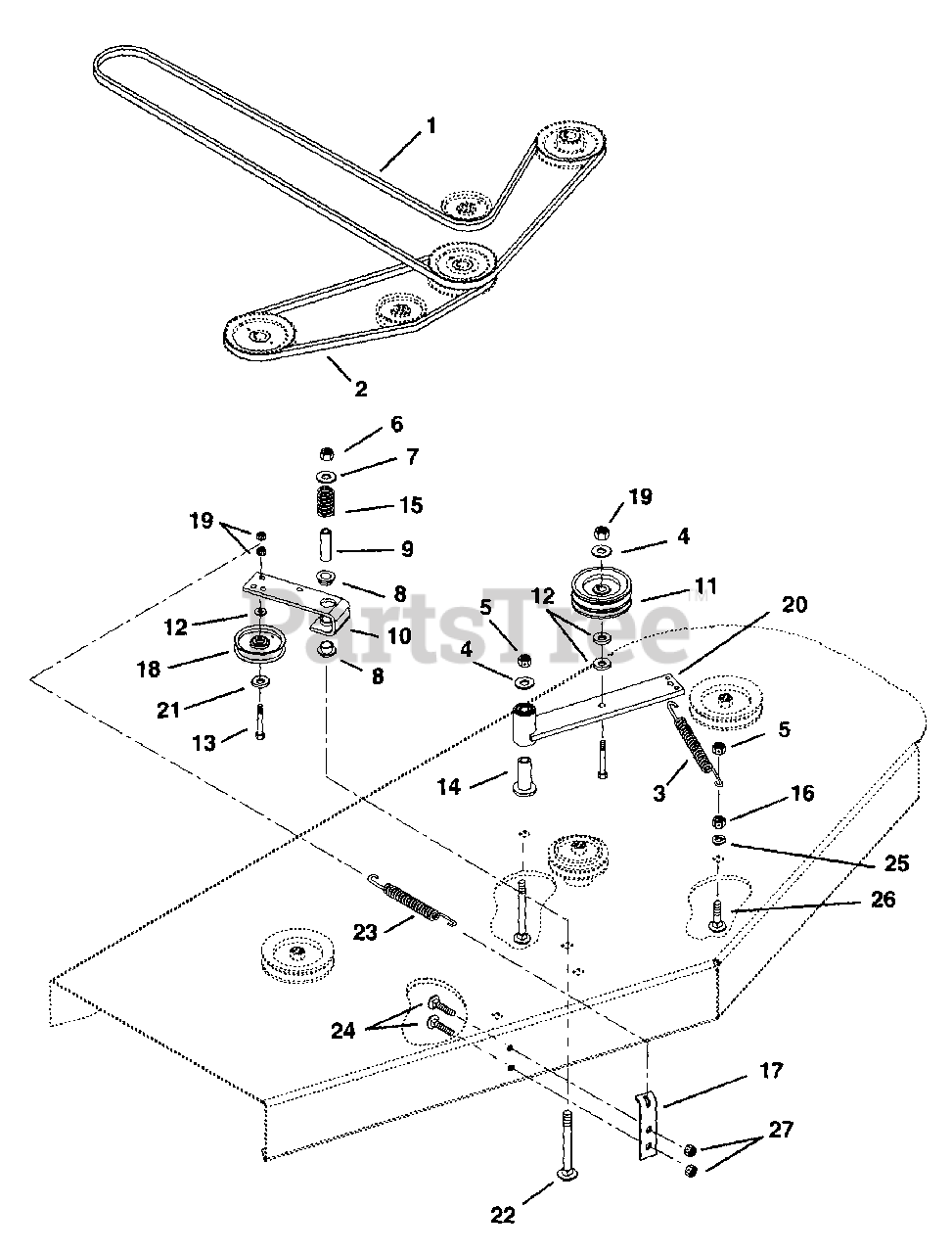

889037 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 014000 & Above) Mower Belts & Idlers Parts Diagram

60" Deck for Pro-Master 300 Mower

Mower Belts & Idlers Parts Diagram

  • Title

1

Gravely 07237100

V-BELT, 5L-RAW EDGE

$85.99

$

Usually ships in 4-12 days

0

Gravely 07237000

V-BELT, HB-RAW EDGE

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 052974

V-BELT, HA-RAW EDGE
(Superseded to 07224300)

$43.99

$

In Stock, only 2 left!

0

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$29.99

$

In Stock, Qty 5

0

3

Gravely 08334100

SG-TENS .120 X .845 X 6.50
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

7

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 9

0

8

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

9

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

10

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

In Stock, only 1 left!

0

11

Gravely 07326000

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

12

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

13

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 9

0

15

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

16

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09089800

ANCHOR, SPRING

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07325200

IDLER-V 4.00 X .377 DAYCO
(Superseded to 07327600)

$39.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 09089000

ASS'Y, IDLER PIVOT ARM

$20.99

$

Usually ships in 4-12 days

0

21

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

22

Gravely 126803

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06218500)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06308900

WSHR-FL-STL .38X.875X.160 YWZC

$

$

Not available

26

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

27

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0
